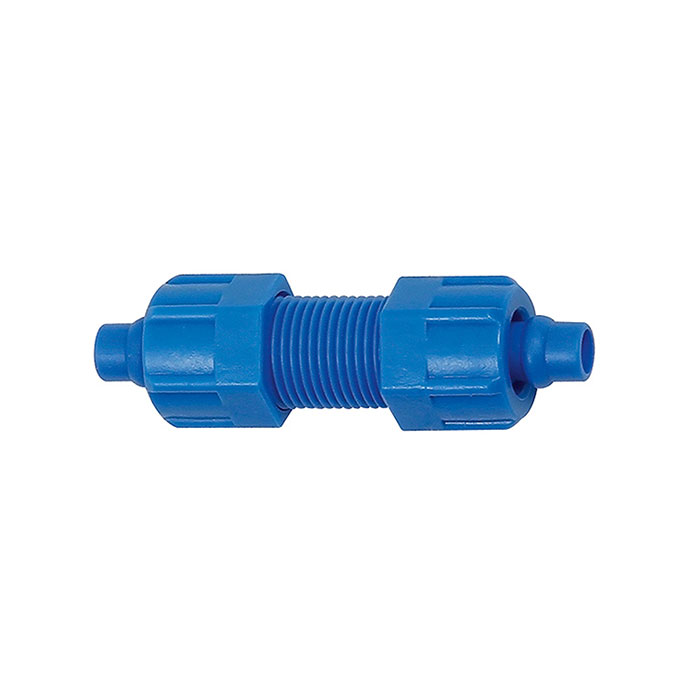

RIEGLER Straight hose connection, for hose 6/4 mm, POM
Type number: 15.775
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Straight hose connection, for 6/4 mm hose, operating pressure 0 - 10 bar, temp. -10 °C to 60 °C, POM
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| for hose | 6/4 mm |
| L1 | 50.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110749] RIEGLER Straight hose connection, for hose 12/9 mm, POM](/web/image/product.template/181679/image_128/%5B110749%5D%20RIEGLER%20Straight%20hose%20connection%2C%20for%20hose%2012-9%20mm%2C%20POM?unique=df855db)
|
Type number: 15.778 |
1.44 € | |
![[110748] RIEGLER Straight hose connection, for hose 8/6 mm, POM](/web/image/product.template/181678/image_128/%5B110748%5D%20RIEGLER%20Straight%20hose%20connection%2C%20for%20hose%208-6%20mm%2C%20POM?unique=d019b4b)
|
Type number: 15.776 |
0.94 € | |
