RIEGLER Straight hose connection, for hose 9/12 mm, AF 24, PA
Type number: 140.04
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight hose connection for pneumatic installation - type 140.04
The RIEGLER straight hose connector, for hose 9/12 mm, SW 24, PA connects compressed air hoses and pipes quickly and securely by simply screwing them in. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| SW | 24 mm |
| for hose | 9/12 mm |

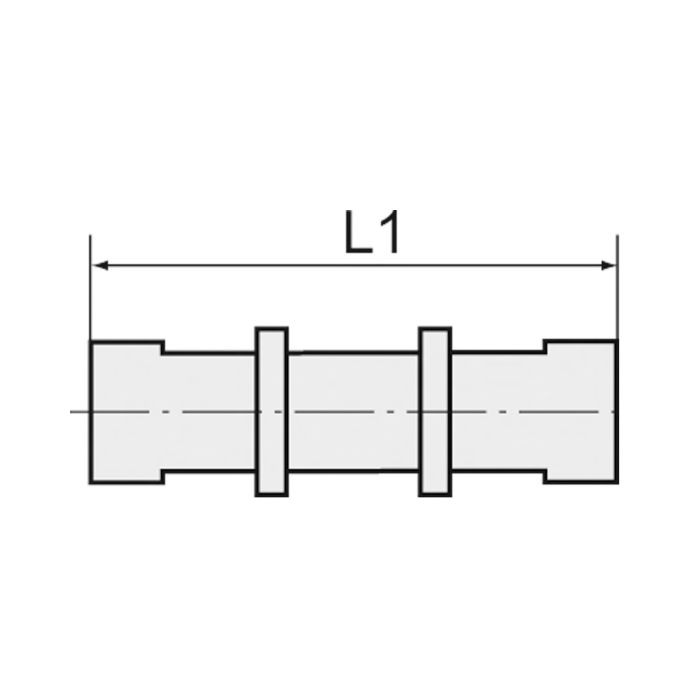

| L1 | 64 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110828] RIEGLER Straight hose connection, for hose 4/6 mm, AF 14, PA](/web/image/product.template/181758/image_128/%5B110828%5D%20RIEGLER%20Straight%20hose%20connection%2C%20for%20hose%204-6%20mm%2C%20AF%2014%2C%20PA?unique=59ae593)
|
Type number: 140.01 |
1.43 € | |
![[110829] RIEGLER Straight hose connection, for hose 6/8 mm, AF 19, PA](/web/image/product.template/181759/image_128/%5B110829%5D%20RIEGLER%20Straight%20hose%20connection%2C%20for%20hose%206-8%20mm%2C%20AF%2019%2C%20PA?unique=3bdbd35)
|
Type number: 140.02 |
2.42 € | |

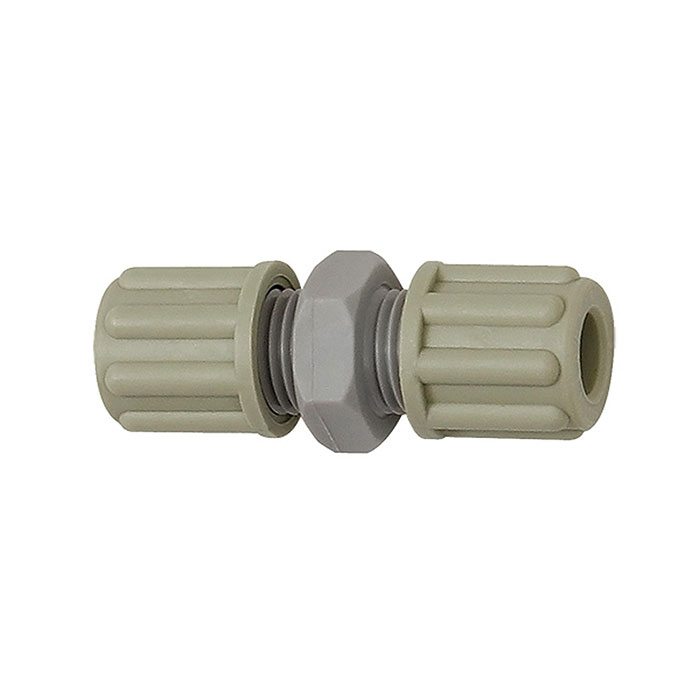

![[110830] RIEGLER Straight hose connection, for hose 8/10 mm, AF 22, PA](/web/image/product.template/181760/image_128/%5B110830%5D%20RIEGLER%20Straight%20hose%20connection%2C%20for%20hose%208-10%20mm%2C%20AF%2022%2C%20PA?unique=13d9e7e)
|
