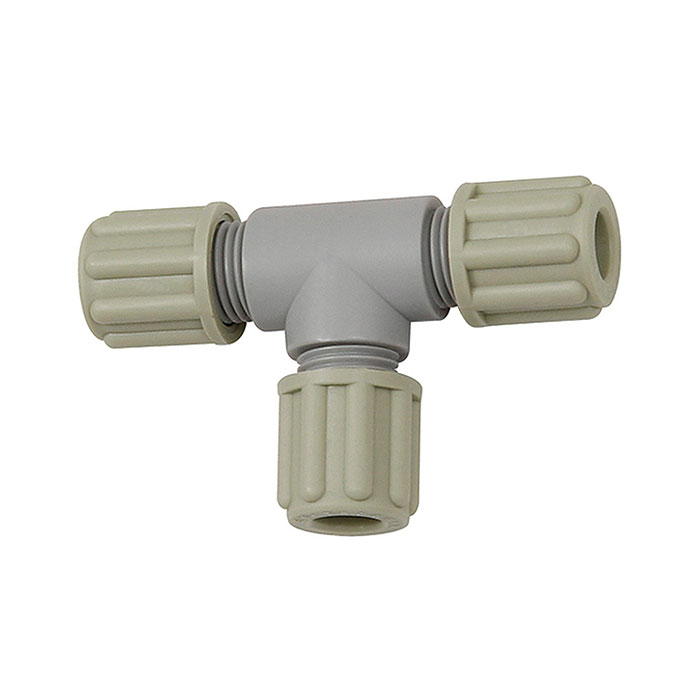

RIEGLER T-hose fitting, for hose 6/8 mm, PA
Type number: 140.22
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
T-Schlauchverbindung, für Schlauch 6/8 mm, Arbeitsdruck max. 10 bar (20 °C) / max. 1 bar (60 °C), PA
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| for hose | 6/8 mm |
| L1 | 62 mm |
| L2 | 31 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110836] RIEGLER T-hose fitting, for hose 4/6 mm, PA](/web/image/product.template/181766/image_128/%5B110836%5D%20RIEGLER%20T-hose%20fitting%2C%20for%20hose%204-6%20mm%2C%20PA?unique=f00aad1)
|
Type number: 140.21 |
2.23 € | |
![[110838] RIEGLER T-hose fitting, for hose 8/10 mm, PA](/web/image/product.template/181768/image_128/%5B110838%5D%20RIEGLER%20T-hose%20fitting%2C%20for%20hose%208-10%20mm%2C%20PA?unique=ce12ca0)
|
Type number: 140.23 |
4.81 € | |
![[110839] RIEGLER T-hose fitting, for hose 9/12 mm, PA](/web/image/product.template/181769/image_128/%5B110839%5D%20RIEGLER%20T-hose%20fitting%2C%20for%20hose%209-12%20mm%2C%20PA?unique=8f791e5)
|
Type number: 140.24 |
9.62 € | |
