RIEGLER T-hose fitting, for hose 8/10 mm, PP
Type number: 140.23-PP
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER T-hose connection made of polypropylene (PP), for pneumatic installation - type 140.23-PP
The RIEGLER T-hose connector, for 8/10 mm hose, PP connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of polypropylene (PP). The operating temperature is between 0 °C and 90 °C. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Material | Polypropylene (PP) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 90 °C | 2.5 bar |
| for hose | 8/10 mm |

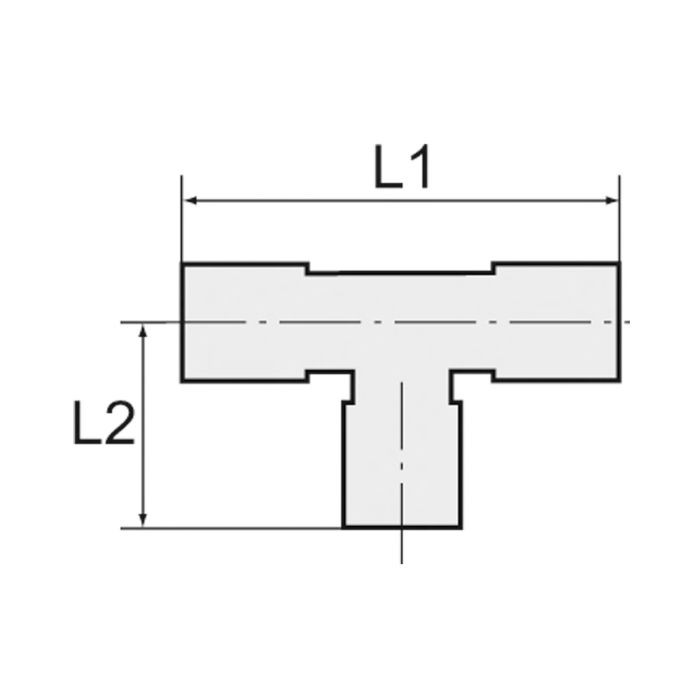

| L1 | 72 mm |
| L2 | 36 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110888] RIEGLER T-hose fitting, for hose 4/6 mm, PP](/web/image/product.template/181818/image_128/%5B110888%5D%20RIEGLER%20T-hose%20fitting%2C%20for%20hose%204-6%20mm%2C%20PP?unique=4e63303)
|
Type number: 140.21-PP |
5.60 € | |
![[110889] RIEGLER T-hose fitting, for hose 6/8 mm, PP](/web/image/product.template/181819/image_128/%5B110889%5D%20RIEGLER%20T-hose%20fitting%2C%20for%20hose%206-8%20mm%2C%20PP?unique=4cc179a)
|
Type number: 140.22-PP |
11.85 € | |

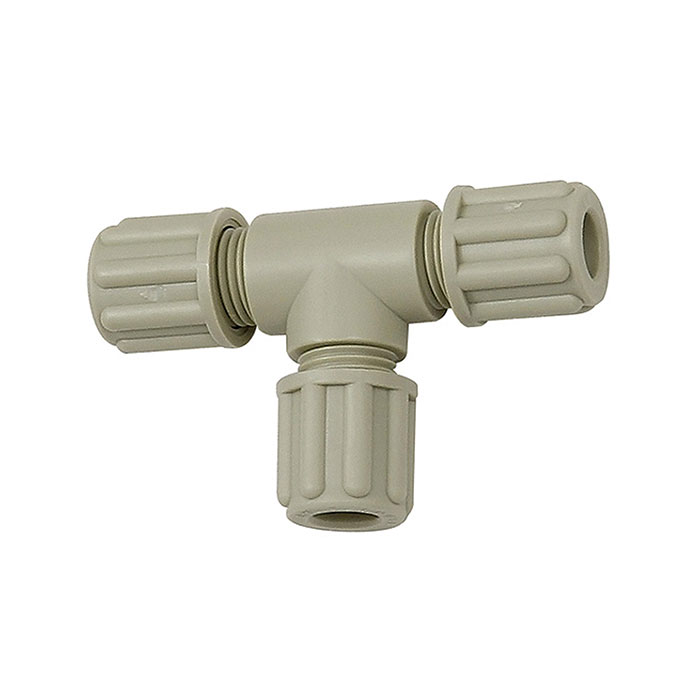

![[110891] RIEGLER T-hose fitting, for hose 9/12 mm, PP](/web/image/product.template/181821/image_128/%5B110891%5D%20RIEGLER%20T-hose%20fitting%2C%20for%20hose%209-12%20mm%2C%20PP?unique=6e18ed5)
|
