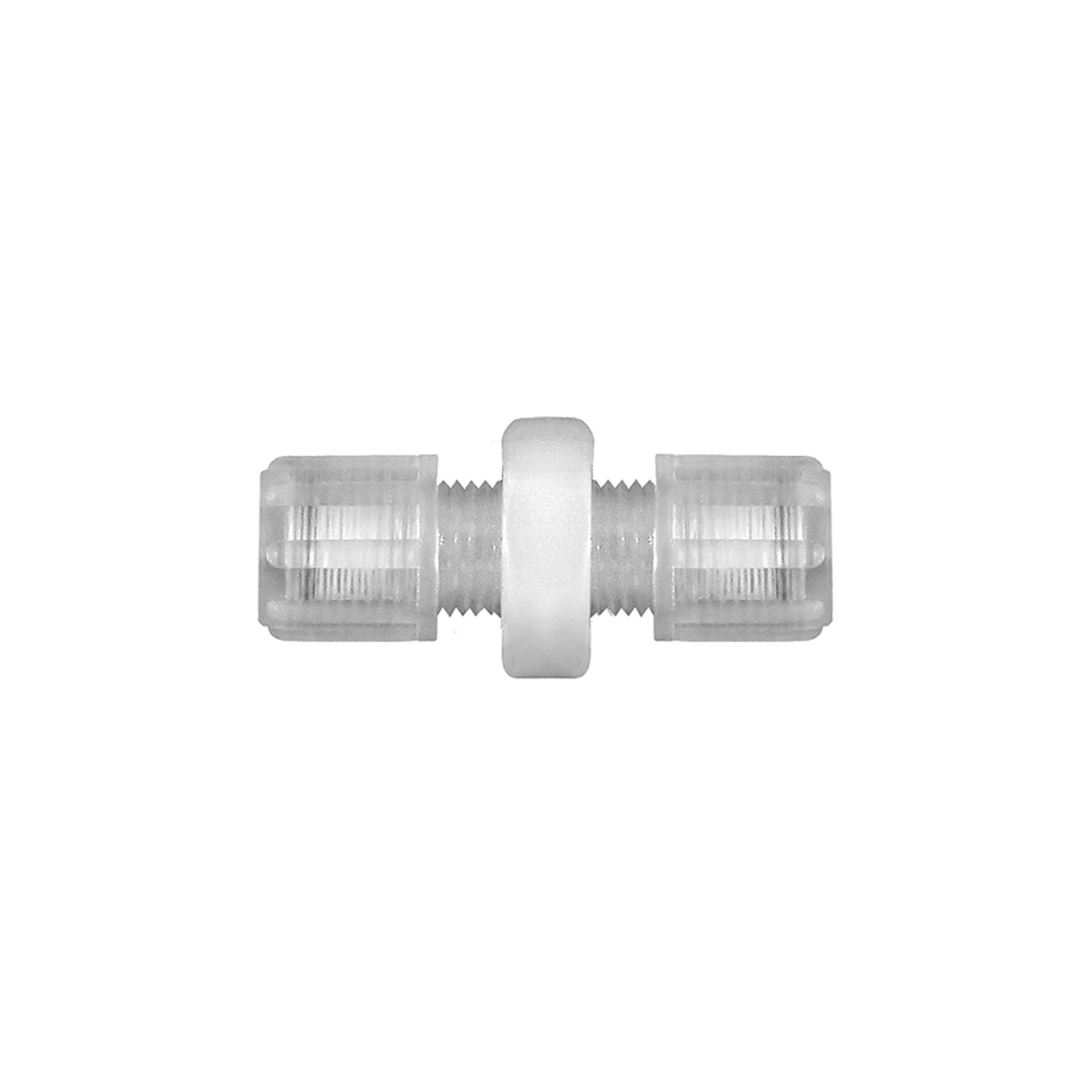

RIEGLER Straight hose connection, for hose 9/12 mm, AF 24, PFA
Type number: 140.04.603
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight hose connection, for hose 9/12 mm, AF 24, Working pressure max. 10 bar (20 °C)/max. 1 bar (170 °C), PFA
| Material | Perfluoroalkoxy (PFA) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 200 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Operating pressure max. from 170 °C | 1 bar |
| SW | 24 mm |
| for hose | 9/12 mm |

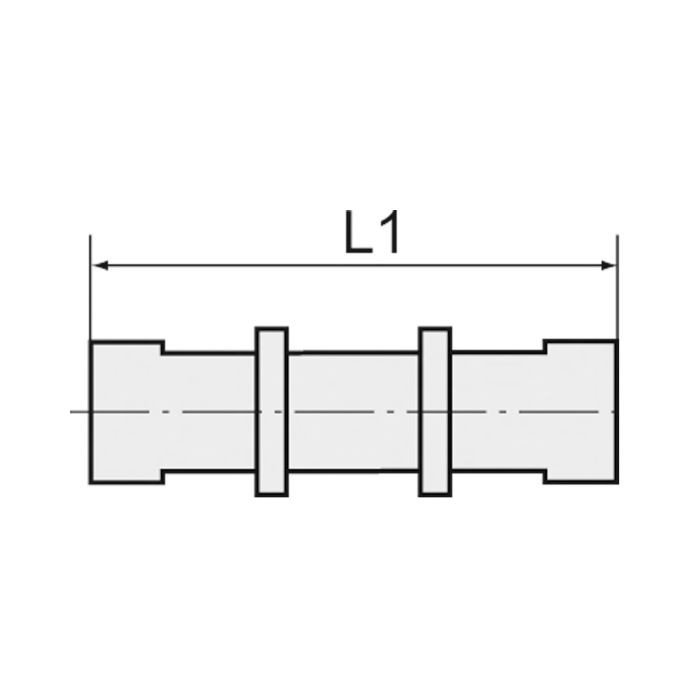

| L1 | 64 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110927] RIEGLER Straight hose connection, for hose 4/6 mm, AF 14, PFA](/web/image/product.template/181857/image_128/%5B110927%5D%20RIEGLER%20Straight%20hose%20connection%2C%20for%20hose%204-6%20mm%2C%20AF%2014%2C%20PFA?unique=984e60e)
|
Type number: 140.01.603 |
28.71 € | |

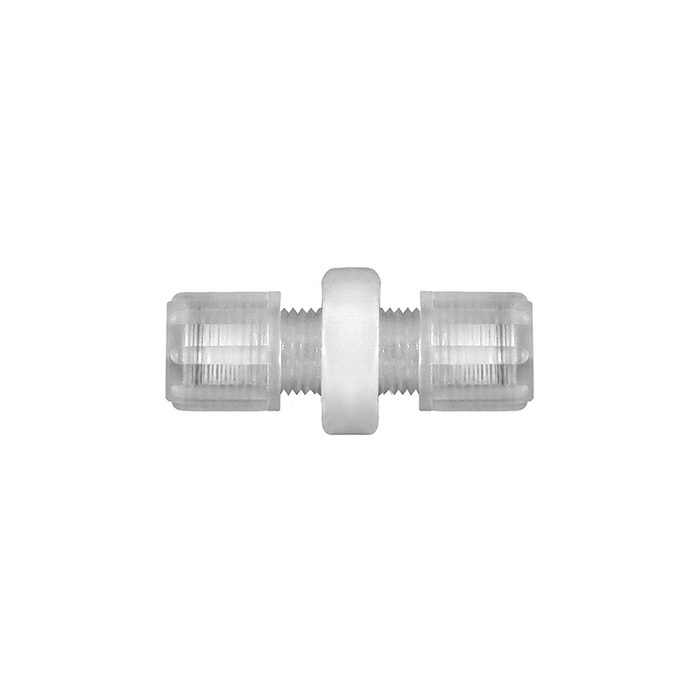

![[110928] RIEGLER Straight hose connection, for hose 6/8 mm, AF 19, PFA](/web/image/product.template/181858/image_128/%5B110928%5D%20RIEGLER%20Straight%20hose%20connection%2C%20for%20hose%206-8%20mm%2C%20AF%2019%2C%20PFA?unique=f986a13)
|
Type number: 140.02.603 |
49.47 € | |
![[110929] RIEGLER Straight hose connection, for hose 8/10 mm, AF 22, PFA](/web/image/product.template/181859/image_128/%5B110929%5D%20RIEGLER%20Straight%20hose%20connection%2C%20for%20hose%208-10%20mm%2C%20AF%2022%2C%20PFA?unique=7e28ada)
|
Type number: 140.03.603 |
53.81 € | |
