RIEGLER Straight screw-in supports, R 3/8 o., for hose I.D. 6 mm, PA 6
Type number: 31.141
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight screw-in connector, R 3/8 a., for hose LW 6 mm, SW 17, working pressure max. 10 bar, temperature range -40 to 90 °C, PA 6
| Temperature range min. | -40 °C |
| Temperature range max. | 90 °C |
| Material | Polyamides (PA 6) |
| Max. permissible overpressure | 10 bar |
| Thread | R 3/8 |
| SW | 17 mm |
| for hose | LW 6 mm |
| L1 | 39 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110945] RIEGLER Straight screw-in supports, M5 o., for hose I.D. 3 mm, PA 6](/web/image/product.template/181875/image_128/%5B110945%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20M5%20o.%2C%20for%20hose%20I.D.%203%20mm%2C%20PA%206?unique=312ea21)
|
Type number: 31.120 |
0.33 € | |
![[110959] RIEGLER Straight screw-in supports, R 1/2 o., for hose I.D. 12 mm, PA 6](/web/image/product.template/181889/image_128/%5B110959%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-2%20o.%2C%20for%20hose%20I.D.%2012%20mm%2C%20PA%206?unique=42ce8ea)
|
Type number: 31.152 |
1.33 € | |
![[110960] RIEGLER Straight screw-in supports, R 1/2 o., for hose I.D. 16 mm, PA 6](/web/image/product.template/181890/image_128/%5B110960%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-2%20o.%2C%20for%20hose%20I.D.%2016%20mm%2C%20PA%206?unique=a32290c)
|
Type number: 31.153 |
1.06 € | |
![[110958] RIEGLER Straight screw-in supports, R 1/2 o., for hose I.D. 8 mm, PA 6](/web/image/product.template/181888/image_128/%5B110958%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-2%20o.%2C%20for%20hose%20I.D.%208%20mm%2C%20PA%206?unique=e819ca4)
|
Type number: 31.151 |
0.83 € | |
![[110953] RIEGLER Straight screw-in supports, R 1/4 o., for hose I.D. 10 mm, PA 6](/web/image/product.template/181883/image_128/%5B110953%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-4%20o.%2C%20for%20hose%20I.D.%2010%20mm%2C%20PA%206?unique=15ead87)
|
Type number: 31.134 |
0.51 € | |
![[110949] RIEGLER Straight screw-in supports, R 1/4 o., for hose I.D. 4 mm, PA 6](/web/image/product.template/181879/image_128/%5B110949%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-4%20o.%2C%20for%20hose%20I.D.%204%20mm%2C%20PA%206?unique=e09f694)
|
Type number: 31.131 |
0.50 € | |
![[110950] RIEGLER Straight screw-in supports, R 1/4 o., for hose I.D. 5 mm, PA 6](/web/image/product.template/181880/image_128/%5B110950%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-4%20o.%2C%20for%20hose%20I.D.%205%20mm%2C%20PA%206?unique=ba74e50)
|
Type number: 31.131/5 |
0.90 € | |
![[110951] RIEGLER Straight screw-in supports, R 1/4 o., for hose I.D. 6 mm, PA 6](/web/image/product.template/181881/image_128/%5B110951%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-4%20o.%2C%20for%20hose%20I.D.%206%20mm%2C%20PA%206?unique=7ecf4a4)
|
Type number: 31.132 |
0.49 € | |
![[110952] RIEGLER Straight screw-in supports, R 1/4 o., for hose I.D. 8 mm, PA 6](/web/image/product.template/181882/image_128/%5B110952%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-4%20o.%2C%20for%20hose%20I.D.%208%20mm%2C%20PA%206?unique=33918b3)
|
Type number: 31.133 |
0.51 € | |
![[110946] RIEGLER Straight screw-in supports, R 1/8 o., for hose I.D. 4 mm, PA 6](/web/image/product.template/181876/image_128/%5B110946%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-8%20o.%2C%20for%20hose%20I.D.%204%20mm%2C%20PA%206?unique=b31a463)
|
Type number: 31.121 |
0.36 € | |
![[110947] RIEGLER Straight screw-in supports, R 1/8 o., for hose I.D. 6 mm, PA 6](/web/image/product.template/181877/image_128/%5B110947%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-8%20o.%2C%20for%20hose%20I.D.%206%20mm%2C%20PA%206?unique=01b3554)
|
Type number: 31.122 |
0.48 € | |
![[110948] RIEGLER Straight screw-in supports, R 1/8 o., for hose I.D. 8 mm, PA 6](/web/image/product.template/181878/image_128/%5B110948%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201-8%20o.%2C%20for%20hose%20I.D.%208%20mm%2C%20PA%206?unique=2e34cae)
|
Type number: 31.123 |
0.54 € | |
![[110963] RIEGLER Straight screw-in supports, R 1 o., for hose I.D. 25 mm, PA 6](/web/image/product.template/181893/image_128/%5B110963%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%201%20o.%2C%20for%20hose%20I.D.%2025%20mm%2C%20PA%206?unique=0690b5a)
|
Type number: 31.171 |
2.34 € | |
![[110961] RIEGLER Straight screw-in supports, R 3/4 o., for hose I.D. 16 mm, PA 6](/web/image/product.template/181891/image_128/%5B110961%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%203-4%20o.%2C%20for%20hose%20I.D.%2016%20mm%2C%20PA%206?unique=9f65d5e)
|
Type number: 31.161 |
1.83 € | |
![[110962] RIEGLER Straight screw-in supports, R 3/4 o., for hose I.D. 19 mm, PA 6](/web/image/product.template/181892/image_128/%5B110962%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%203-4%20o.%2C%20for%20hose%20I.D.%2019%20mm%2C%20PA%206?unique=bccffdb)
|
Type number: 31.162 |
2.06 € | |
![[110956] RIEGLER Straight screw-in supports, R 3/8 o., for hose I.D. 10 mm, PA 6](/web/image/product.template/181886/image_128/%5B110956%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%203-8%20o.%2C%20for%20hose%20I.D.%2010%20mm%2C%20PA%206?unique=b77bbc0)
|
Type number: 31.143 |
0.57 € | |

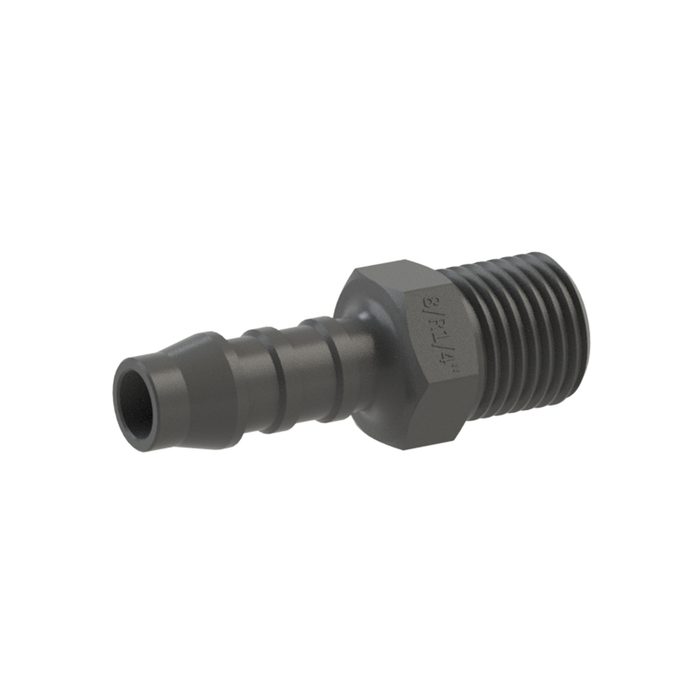

![[110957] RIEGLER Straight screw-in supports, R 3/8 o., for hose I.D. 12 mm, PA 6](/web/image/product.template/181887/image_128/%5B110957%5D%20RIEGLER%20Straight%20screw-in%20supports%2C%20R%203-8%20o.%2C%20for%20hose%20I.D.%2012%20mm%2C%20PA%206?unique=1e01bc1)
|
