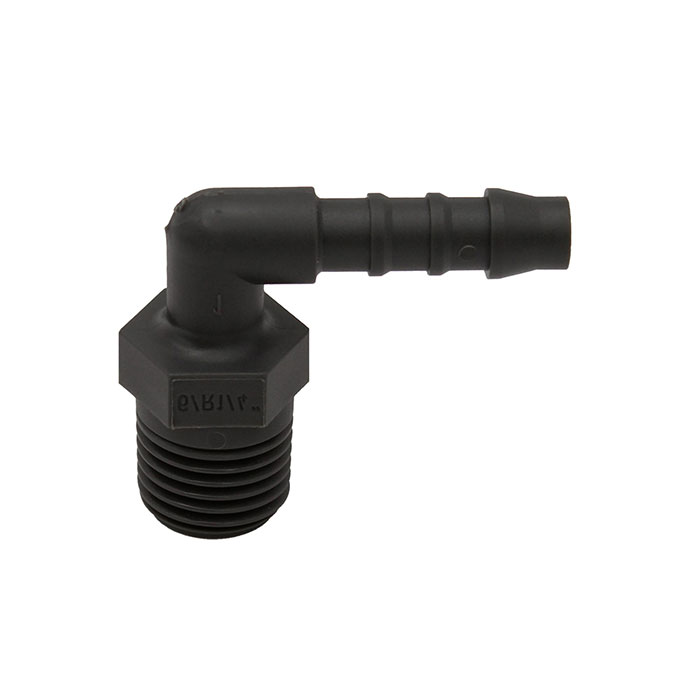

RIEGLER Angled screw-in supports, R 3/8 o., for hose I.D. 12 mm, PA 6
Type number: 32.354
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Winkel-Einschraubstutzen, R 3/8 a., für Schlauch LW 12 mm, SW 17, Arbeitsdruck max. 10 bar, Temperaturbereich -40 bis 90 °C, PA 6
| Temperature range min. | -40 °C |
| Temperature range max. | 90 °C |
| Material | Polyamides (PA 6) |
| Max. permissible overpressure | 10 bar |
| Thread | R 3/8 |
| SW | 17 mm |
| for hose | LW 12 mm |
| L1 | 31 mm |
| L2 | 40.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
