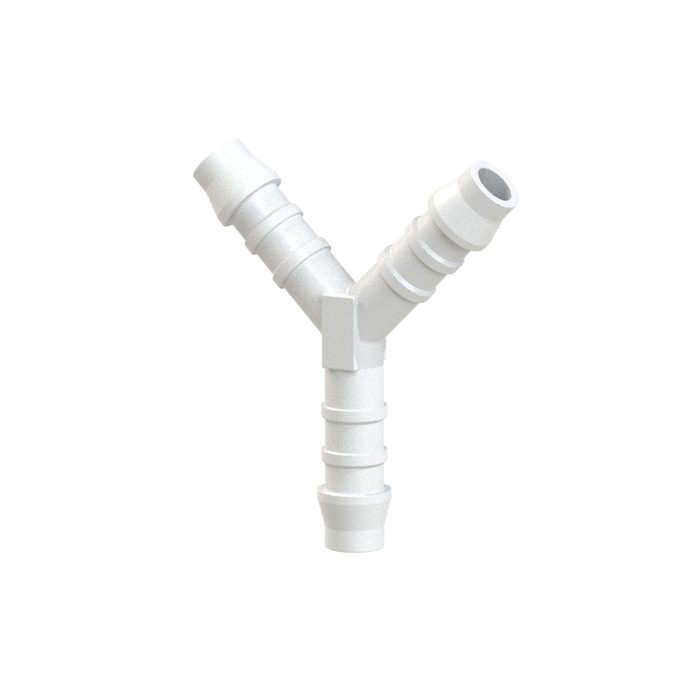

RIEGLER Y hose connection supports, for hose I.D. 6 mm, Bracket 90°, POM
Type number: 36.612
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Y-Schlauchverbindungsstutzen, für Schlauch LW 6 mm, Winkel 90°, Arbeitsdruck max. 10 bar, Temperaturbereich -40 bis 80 °C, POM
| Temperature range min. | -40 °C |
| Temperature range max. | 80 °C |
| Material | Acetal copolymer (POM) |
| Max. permissible overpressure | 10 bar |
| for hose | LW 6 mm |

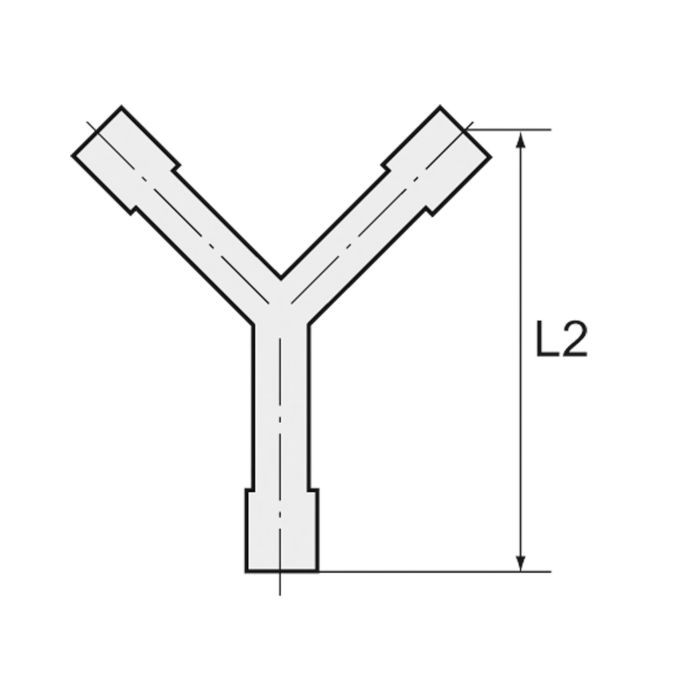

| L2 | 44 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
