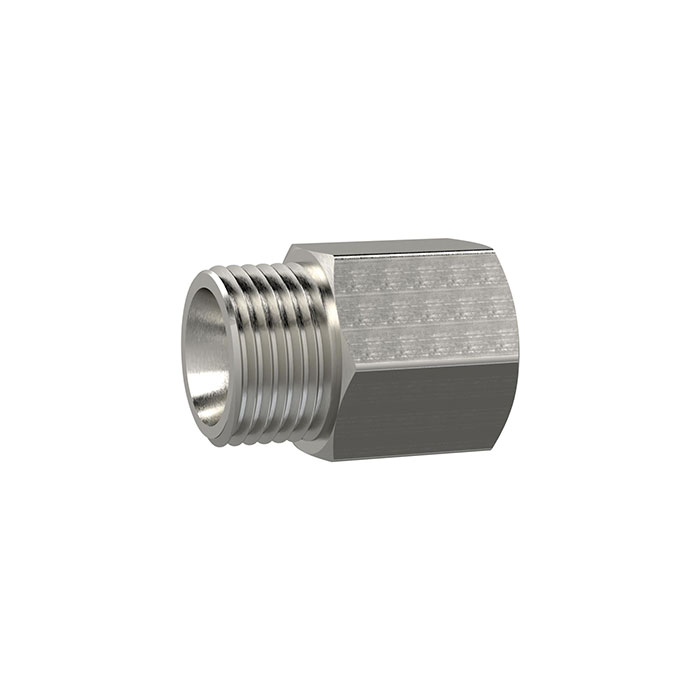

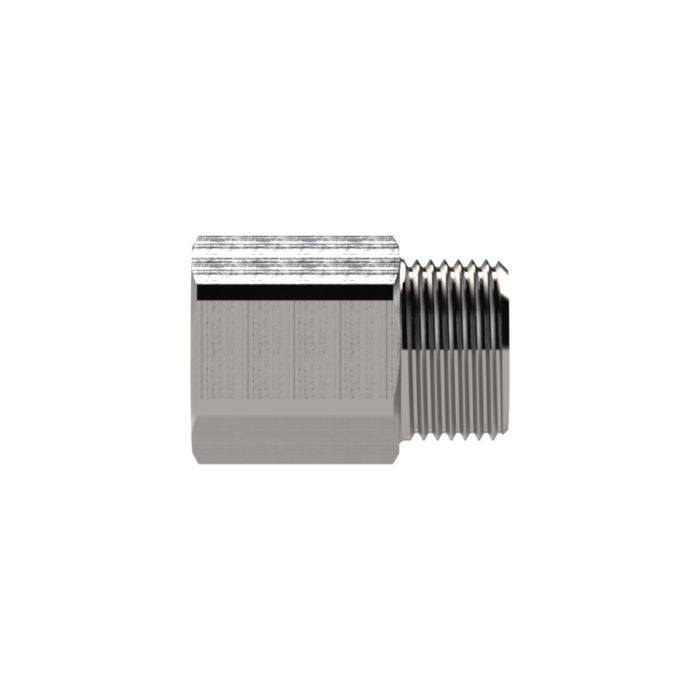

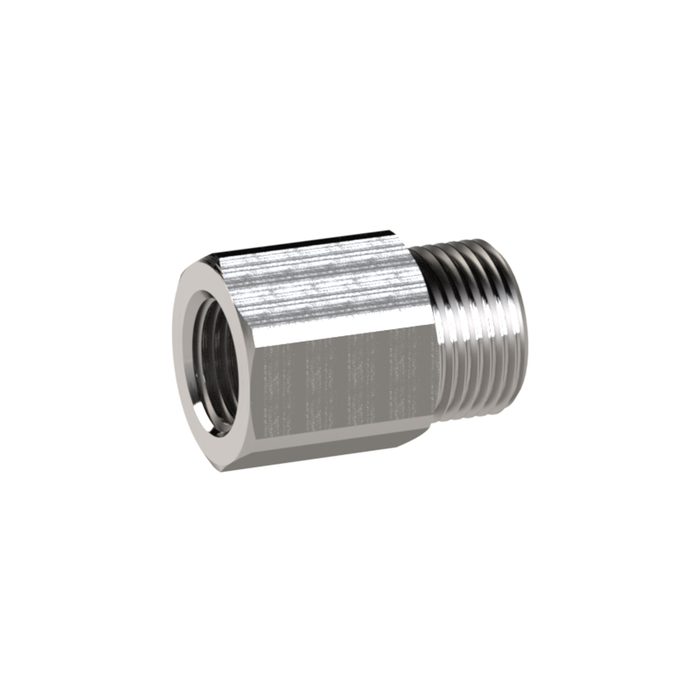

RIEGLER Reducing nipple, Long, M5 o., M5 i., AF 10, Stainless steel
Type number: 252.08/1-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducing nipple made of stainless steel 1.4571, for pipeline construction, max. 60 bar - Type 252.08/1-ES
The RIEGLER reducing nipple, long, M5 a., M5 i., SW 10, stainless steel 1.4571 connects two threaded connections of different sizes. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 60 bar. Flexible thread adjustment.
Field of application
Typical areas of application: Compressed air, water and process installation.
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| SW | 10 mm |

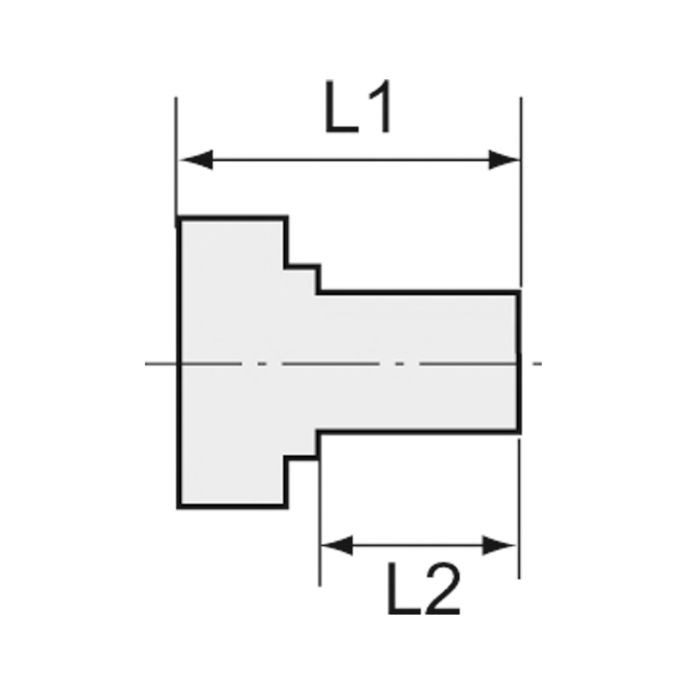

| L1 | 16 mm |
| L2 | 5.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | M5 |
| External thread | M5 |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
