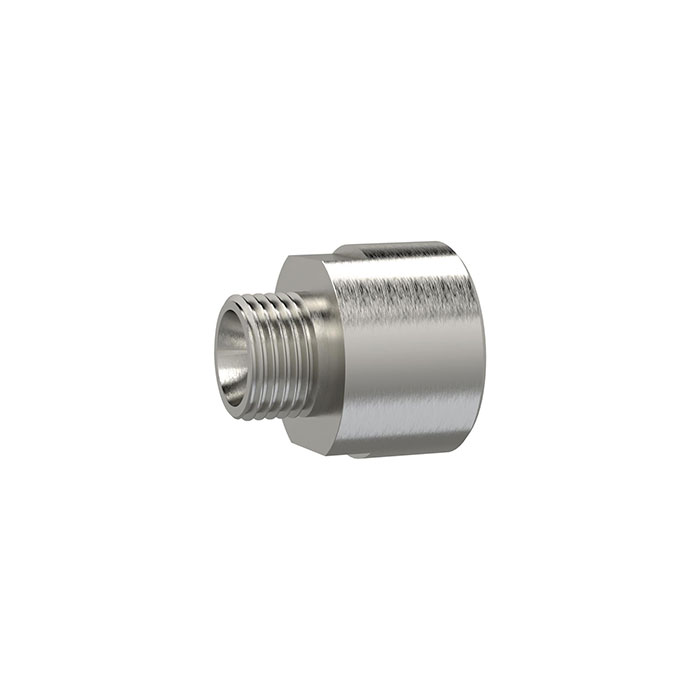

RIEGLER Reducing nipple, Long, G 1/2 o., G 3/4 i., AF 32, Stainless steel
Type number: 252.18-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducing nipple made of stainless steel 1.4571, for pipeline construction, max. 60 bar - Type 252.18-ES
The RIEGLER reducing nipple, long, G 1/2 a., G 3/4 i., SW 32, stainless steel 1.4571 connects two threaded connections of different sizes. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 60 bar. Flexible thread adaptation.
Field of application
Typical areas of application: Compressed air, water and process installation.
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| SW | 32 mm |

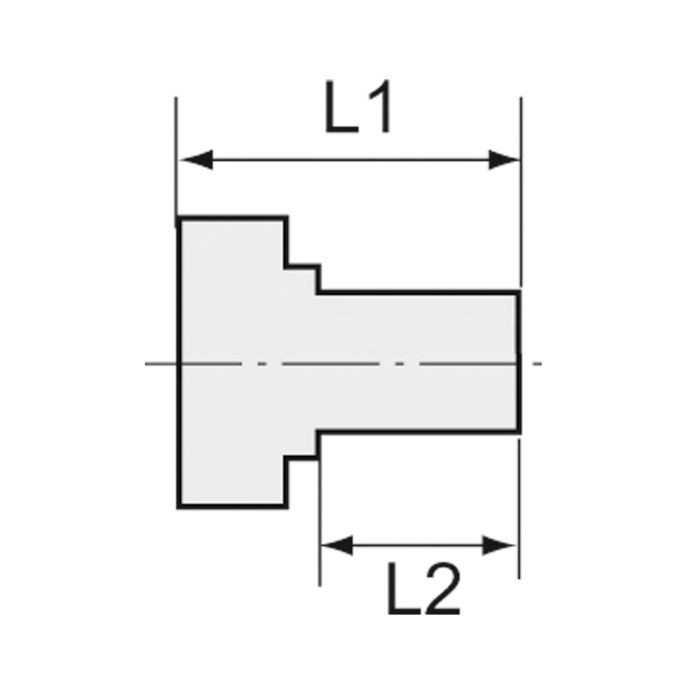

| L1 | 38 mm |
| L2 | 13 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 3/4 |
| External thread | G 1/2 |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14571 |
| Class name | STAINLESS STEEL |
