RIEGLER Locking screw, Hexagonal socket, without flange, G 1/4
Type number: 252.102-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verschlussschraube, Innensechskant, ohne Bund, G 1/4, SW 6, Edelstahl 1.4571, Arbeitsdruck max. 60 bar, Betriebstemp. max. 150 °C
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| Thread | G 1/4 hexagon socket |
| SW | 6 mm |

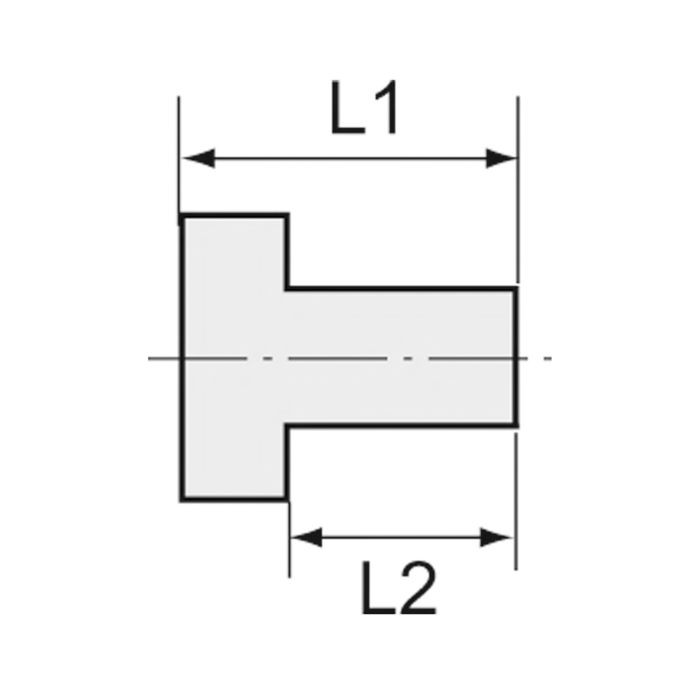

| L1 | 10 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

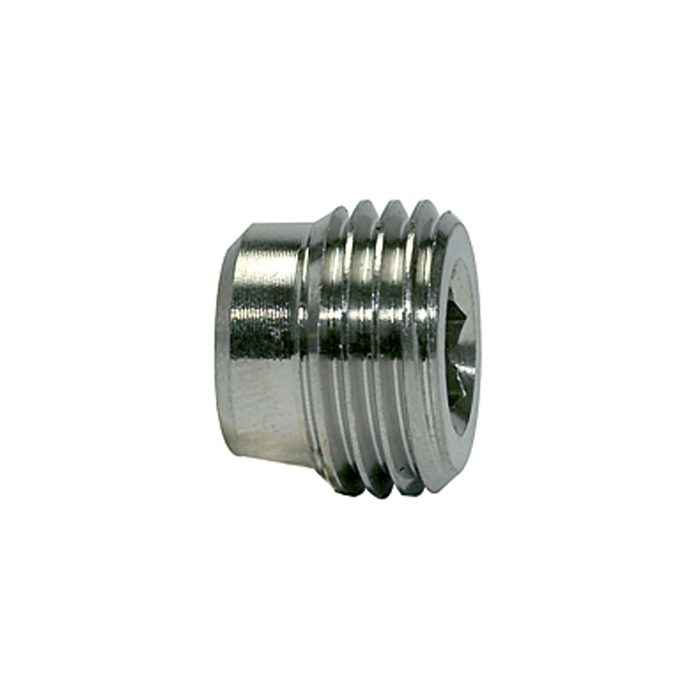

![[111654] RIEGLER Locking screw, Hexagonal socket, without flange, G 1/2](/web/image/product.template/183575/image_128/%5B111654%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20G%201-2?unique=1ec0ca8)
|
Type number: 252.104-ES |
11.10 € | |
![[111651] RIEGLER Locking screw, Hexagonal socket, without flange, G 1/8](/web/image/product.template/183572/image_128/%5B111651%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20G%201-8?unique=732f9e7)
|
Type number: 252.101-ES |
4.44 € | |
![[111653] RIEGLER Locking screw, Hexagonal socket, without flange, G 3/8](/web/image/product.template/183574/image_128/%5B111653%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20G%203-8?unique=83a65be)
|
Type number: 252.103-ES |
6.58 € | |
