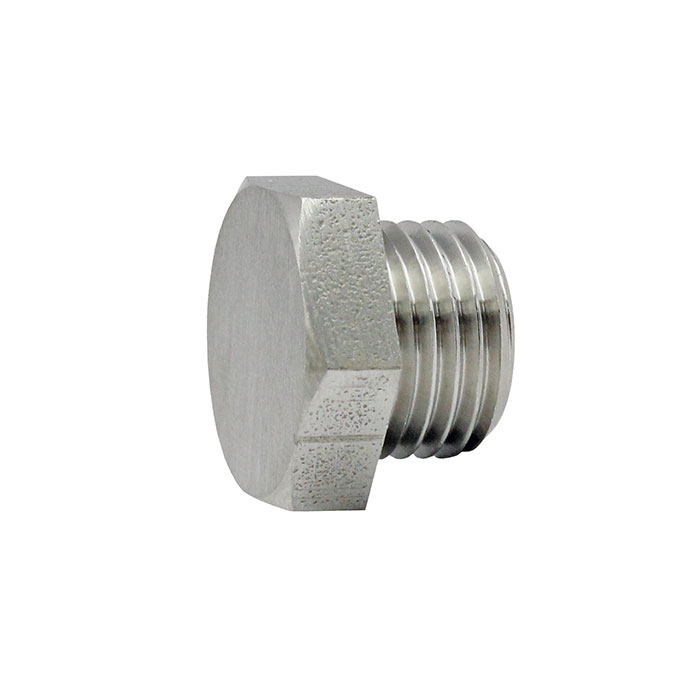

RIEGLER Locking screw, Exterior hexagonal, G 3/8, AF 19, Stainless steel
Type number: 252.97-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verschlussschraube, Außensechskant, G 3/8, SW 19, Edelstahl 1.4571, Arbeitsdruck max. 60 bar, Betriebstemp. max. 150 °C
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| Thread | G 3/8 external hexagon |
| SW | 19 mm |
| L1 | 14 mm |
| L2 | 8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[111664] RIEGLER Locking screw, Exterior hexagonal, G 1/2, AF 24, Stainless steel](/web/image/product.template/183585/image_128/%5B111664%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201-2%2C%20AF%2024%2C%20Stainless%20steel?unique=7bfab1b)
|
Type number: 252.98-ES |
4.44 € | |
![[111662] RIEGLER Locking screw, Exterior hexagonal, G 1/4, AF 17, Stainless steel](/web/image/product.template/183583/image_128/%5B111662%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201-4%2C%20AF%2017%2C%20Stainless%20steel?unique=bdc0ebd)
|
Type number: 252.96-ES |
3.05 € | |
![[111661] RIEGLER Locking screw, Exterior hexagonal, G 1/8, AF 13, Stainless steel](/web/image/product.template/183582/image_128/%5B111661%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201-8%2C%20AF%2013%2C%20Stainless%20steel?unique=5910de6)
|
Type number: 252.95-ES |
2.86 € | |
![[111666] RIEGLER Locking screw, Exterior hexagonal, G 1, AF 38, Stainless steel](/web/image/product.template/183587/image_128/%5B111666%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201%2C%20AF%2038%2C%20Stainless%20steel?unique=9a42da7)
|
Type number: 252.100-ES |
16.65 € | |
![[111665] RIEGLER Locking screw, Exterior hexagonal, G 3/4, AF 30, Stainless steel](/web/image/product.template/183586/image_128/%5B111665%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%203-4%2C%20AF%2030%2C%20Stainless%20steel?unique=fb22314)
|
Type number: 252.99-ES |
6.56 € | |
