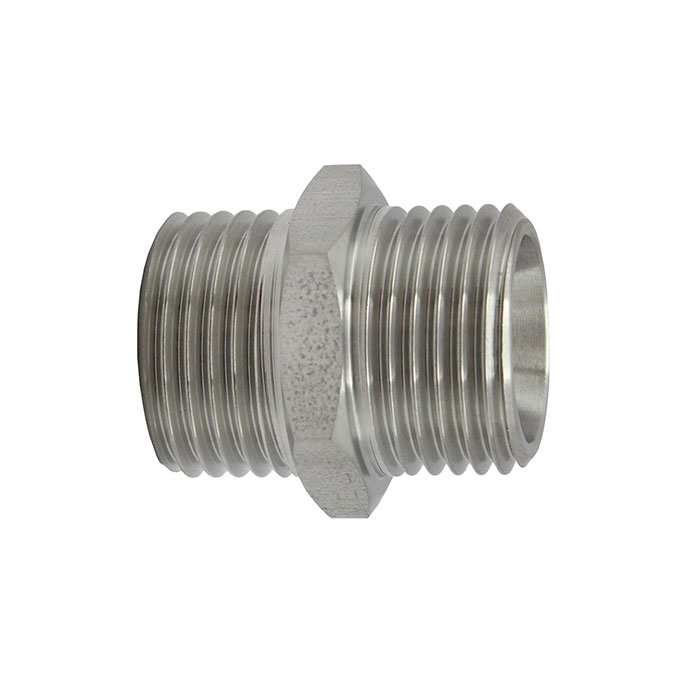

RIEGLER Double threaded nipple, G 1/4 o., G 3/8 o., Stainless steel
Type number: 252.02-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Double threaded nipple, G 1/4 a., G 3/8 a., SW 19, stainless steel 1.4571, operating pressure max. 60 bar, operating temp. max. 150 °C
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| SW | 19 mm |
| L1 | 24 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Thread 1 | G 1/4 |
| Thread 2 | G 3/8 |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| L3 | 10 mm |
| Class name | STAINLESS STEEL |
