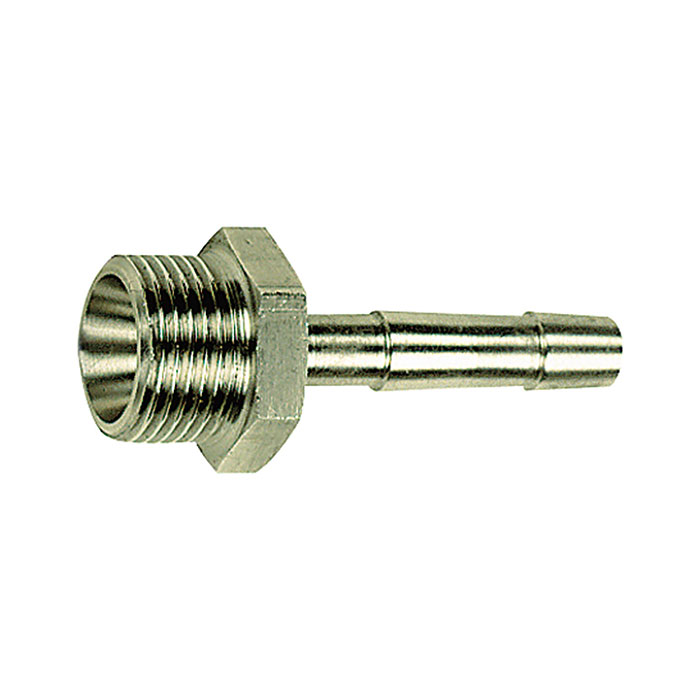

RIEGLER Screw-in hose connector, R 3/4 o., for hose I.D. 19, AF 32
Type number: N239 P-ESR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in hose nozzle made of stainless steel 1.4571, for pneumatic installation, max. 60 bar - Type N239 P-ESR
The RIEGLER screw-in hose nozzle, R3/4 a., hose LW 19, SW32, ES 1.4571 permanently connects hoses to threaded connections - for reliable media supply. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 60 bar. Connection thread R 3/4 - suitable for common industry standards. Secure hose fixation for pressure-resistant connections.
Field of application
Typical areas of application: Compressed air, water, technical gases and industrial media.
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| Thread | R 3/4 |
| SW | 32 mm |
| for hose | LW 19 mm |
| L1 | 56.2 mm |
| L2 | 14.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
