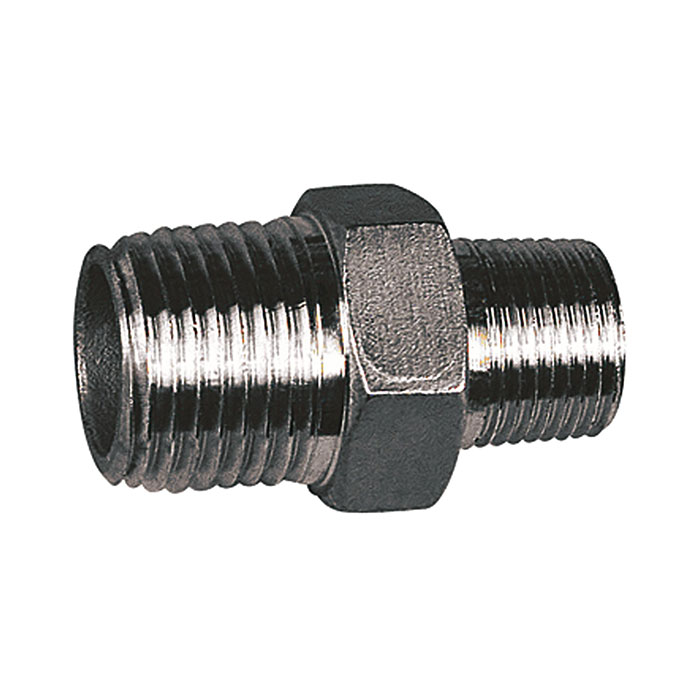

RIEGLER Double threaded nipple red. Hexagonal G 1 1/4 o., G 3/4 o. AF 45
Type number: 268.10-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Double threaded nipple, reducing, hexagonal, G 1 1/4 a., G 3/4 a., SW 45, max. working pressure 20 bar, stainless steel 1.4408
| Working pressure max. | 20 bar |
| SW | 45 mm |
| Thread standard | DIN EN ISO 228-1 |

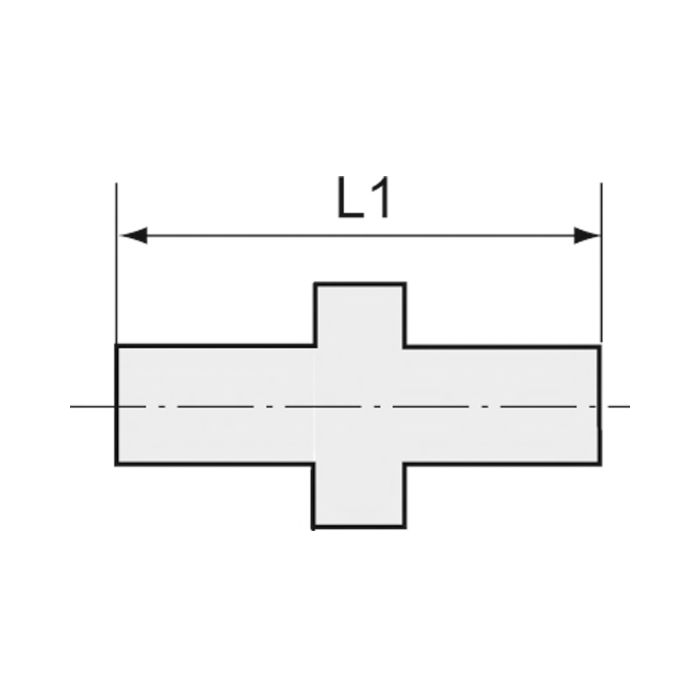

| L1 | 50 mm |
| L2 | 20.9 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| External thread 1 | G 1 1/4 |
| External thread 2 | G 3/4 |
| L3 | 17.5 mm |
| Class name | STAINLESS STEEL |
