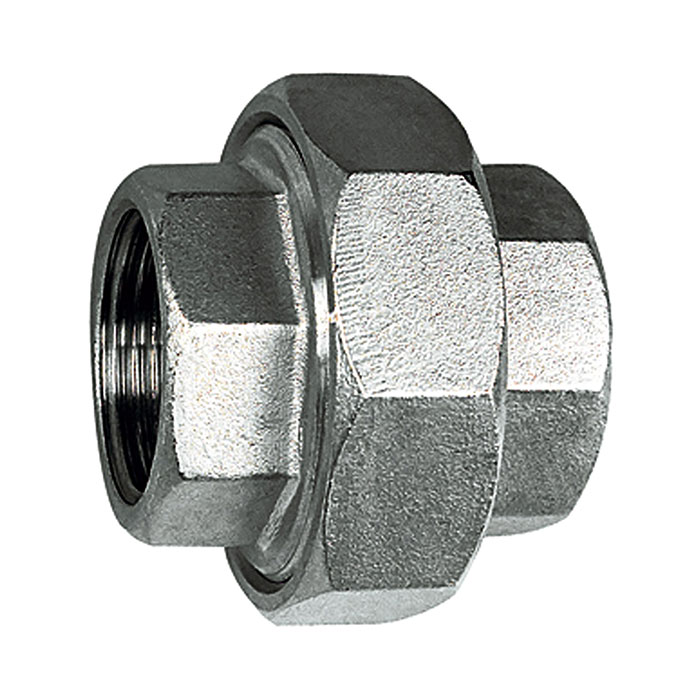

RIEGLER Removable Double threaded nipple, G 3/8 i. Stainless steel 1.4408
Type number: 271.03-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Detachable double threaded nipple for pipeline construction, max. 10 bar, G 3/8 - Type 271.03-ES
The RIEGLER detachable double threaded nipple, G 3/8 i., SW1 34, SW2 22, ES 1.4408 connects two female threaded connections of the same or different sizes. Designed for a maximum operating pressure of 10 bar. Connection thread G 3/8 (DIN EN ISO 228-1) - suitable for common industry standards. Universal adapter for different thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.

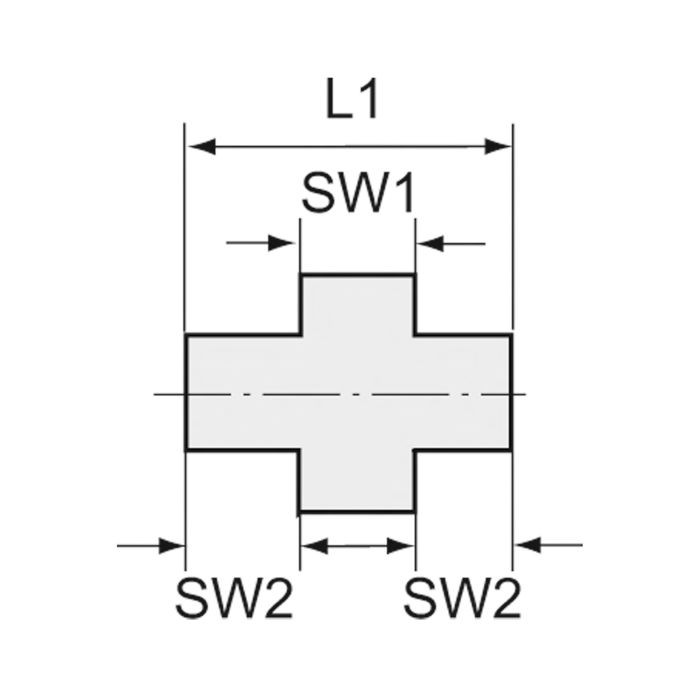

| Working pressure max. | 10 bar |
| Thread | G 3/8 |
| SW 1 | 34 mm |
| SW 2 | 22 mm |
| Thread standard | DIN EN ISO 228-1 |
| L1 | 34.7 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

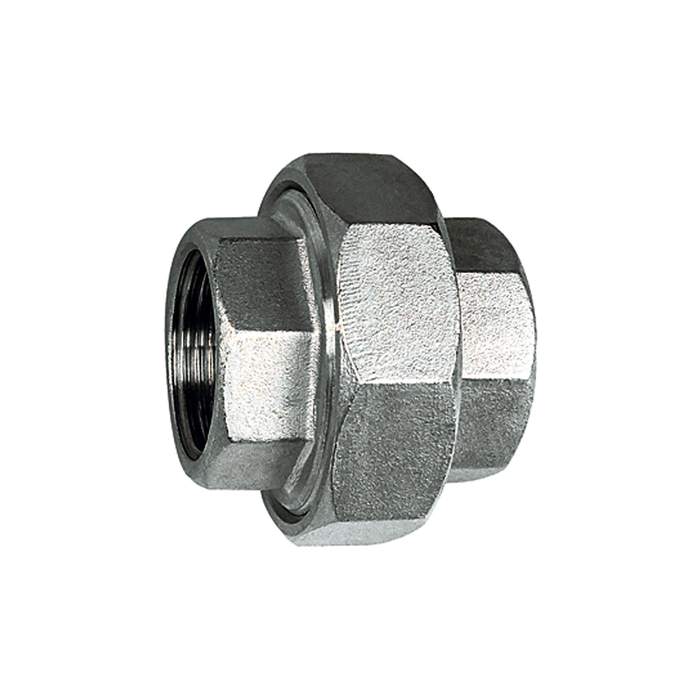

![[111935] RIEGLER Rem. Double threaded nipple, G 1 1/2 i. Stainless steel 1.4408](/web/image/product.template/183830/image_128/%5B111935%5D%20RIEGLER%20Rem.%20Double%20threaded%20nipple%2C%20G%201%201-2%20i.%20Stainless%20steel%201.4408?unique=dfffe51)
|
