RIEGLER Pressure gauge fitting, G 1/4 i., Pipe exterior Ø 10 mm
Type number: N 65
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure gauge fitting, G 1/4 i., Pipe exterior Ø 10 mm, Operating pressure max. 60 bar, Temp. max 150 °C, nickel-plated brass
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Material | Nickel-plated brass |
| Thread | G 1/4 |
| SW 1 | 19 mm |
| SW | 17 mm |
| Tube outer Ø | 10 mm |
| L1 | 35.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[111986] RIEGLER Pressure gauge fitting, G 1/2 i., Pipe exterior Ø 12 mm](/web/image/product.template/183881/image_128/%5B111986%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%2012%20mm?unique=1fd571c)
|
Type number: N 69 |
5.94 € | |
![[111987] RIEGLER Pressure gauge fitting, G 1/2 i., Pipe exterior Ø 15 mm](/web/image/product.template/183882/image_128/%5B111987%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%2015%20mm?unique=0eadb45)
|
Type number: N 70 |
7.26 € | |
![[111988] RIEGLER Pressure gauge fitting, G 1/2 i., Pipe exterior Ø 18 mm](/web/image/product.template/183883/image_128/%5B111988%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%2018%20mm?unique=f373f86)
|
Type number: N 71 |
0.77 € | |
![[111980] RIEGLER Pressure gauge fitting, G 1/4 i., Pipe exterior Ø 6 mm](/web/image/product.template/183875/image_128/%5B111980%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-4%20i.%2C%20Pipe%20exterior%20%C3%98%206%20mm?unique=41e4abf)
|
Type number: N 63 |
2.28 € | |
![[111981] RIEGLER Pressure gauge fitting, G 1/4 i., Pipe exterior Ø 8 mm](/web/image/product.template/183876/image_128/%5B111981%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-4%20i.%2C%20Pipe%20exterior%20%C3%98%208%20mm?unique=204a8f3)
|
Type number: N 64 |
2.28 € | |
![[111977] RIEGLER Pressure gauge fitting, G 1/8 i., Pipe exterior Ø 4 mm](/web/image/product.template/183872/image_128/%5B111977%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-8%20i.%2C%20Pipe%20exterior%20%C3%98%204%20mm?unique=a793716)
|
Type number: N 60 |
2.00 € | |
![[111978] RIEGLER Pressure gauge fitting, G 1/8 i., Pipe exterior Ø 6 mm](/web/image/product.template/183873/image_128/%5B111978%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-8%20i.%2C%20Pipe%20exterior%20%C3%98%206%20mm?unique=0265182)
|
Type number: N 61 |
2.00 € | |

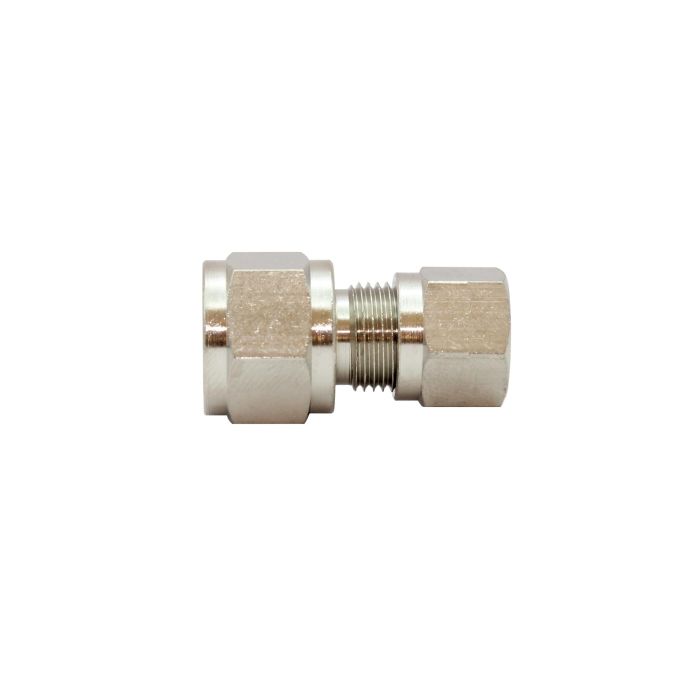

![[111979] RIEGLER Pressure gauge fitting, G 1/8 i., Pipe exterior Ø 8 mm](/web/image/product.template/183874/image_128/%5B111979%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-8%20i.%2C%20Pipe%20exterior%20%C3%98%208%20mm?unique=70483ef)
|
