RIEGLER Cutting ring, Pipe exterior Ø 4 mm, galvanised steel
Type number: V 350
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Cutting ring made of galvanized steel (DIN 2353), for pneumatic installation - type V 350
The RIEGLER cutting ring, pipe outer Ø 4 mm, PN max. 100 bar, galvanized steel creates a permanent, metal-to-metal sealing pipe connection according to the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Tube outer Ø | 4 mm |
| PN | 100 bar |
| L1 | 6 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112228] RIEGLER Cutting ring, Pipe exterior Ø 5 mm, galvanised steel](/web/image/product.template/184123/image_128/%5B112228%5D%20RIEGLER%20Cutting%20ring%2C%20Pipe%20exterior%20%C3%98%205%20mm%2C%20galvanised%20steel?unique=ea39ea8)
|
Type number: V 351 |
0.32 € | |
![[112229] RIEGLER Cutting ring, Pipe exterior Ø 6 mm, galvanised steel](/web/image/product.template/184124/image_128/%5B112229%5D%20RIEGLER%20Cutting%20ring%2C%20Pipe%20exterior%20%C3%98%206%20mm%2C%20galvanised%20steel?unique=01862f4)
|
Type number: V 352 |
0.32 € | |
![[112230] RIEGLER Cutting ring, Pipe exterior Ø 8 mm, galvanised steel](/web/image/product.template/184125/image_128/%5B112230%5D%20RIEGLER%20Cutting%20ring%2C%20Pipe%20exterior%20%C3%98%208%20mm%2C%20galvanised%20steel?unique=35d30ba)
|
Type number: V 353 |
0.32 € | |
![[159348] RIEGLER Ferrule, Pipe exterior Ø 10 mm, PN max. 100 bar, galvanised steel](/web/image/product.template/215179/image_128/%5B159348%5D%20RIEGLER%20Ferrule%2C%20Pipe%20exterior%20%C3%98%2010%20mm%2C%20PN%20max.%20100%20bar%2C%20galvanised%20steel?unique=32e4908)
|
Typennummer: SR10SLST |
0.33 € | |

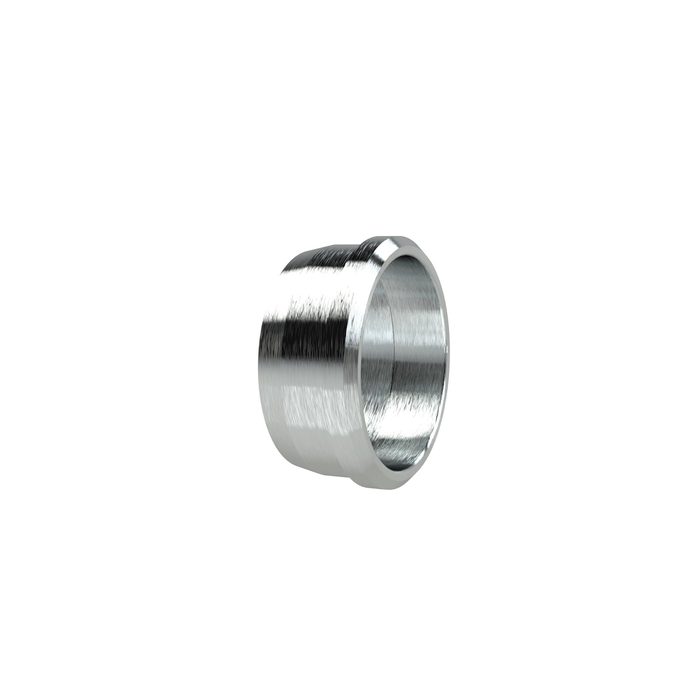

![[159349] RIEGLER Ferrule, Pipe exterior Ø 12 mm, PN max. 100 bar, galvanised steel](/web/image/product.template/215180/image_128/%5B159349%5D%20RIEGLER%20Ferrule%2C%20Pipe%20exterior%20%C3%98%2012%20mm%2C%20PN%20max.%20100%20bar%2C%20galvanised%20steel?unique=381ff6e)
|
Typennummer: SR12SLST |
0.43 € | |
