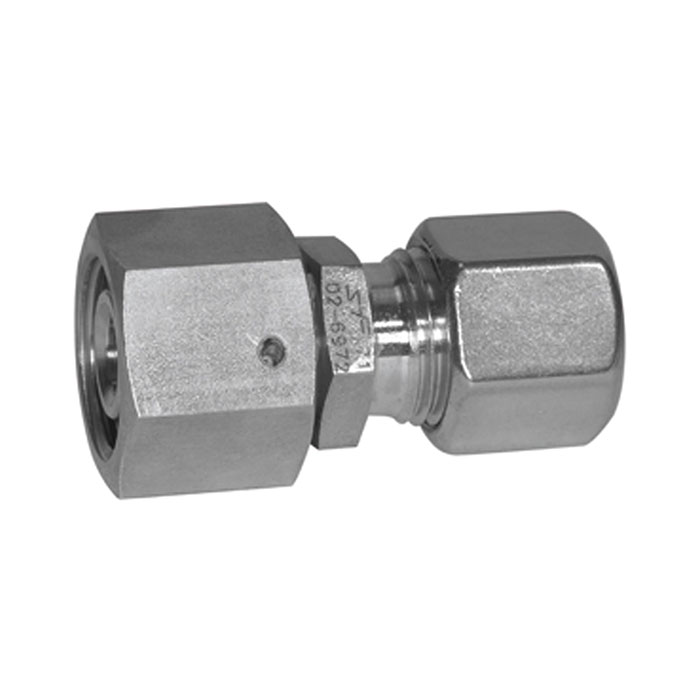

RIEGLER Reducing fitting, Sealing cone, Nut M26x1.5 i., Stainless steel
Type number: ES 564
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducing plug made of stainless steel 1.4571 (DIN 2353), for pneumatic installation - type ES 564
The RIEGLER reducer plug, sealing cone, nut M26x1.5 i., ES 1.4571 Ø18x10 connects compressed air and pneumatic lines securely and tightly. The housing is made of stainless steel 1.4571 (DIN 2353). Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Material | Stainless steel 1.4571 (DIN 2353) |
| Pipe outer Ø 1 | 18 mm |
| PN | 315 bar |
| L1 | 45.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14571 |
| Pipe outer Ø 2 | 10 mm |
| Female nut thread for Ø 1 | M26x1.5 |
| Class name | STAINLESS STEEL |
