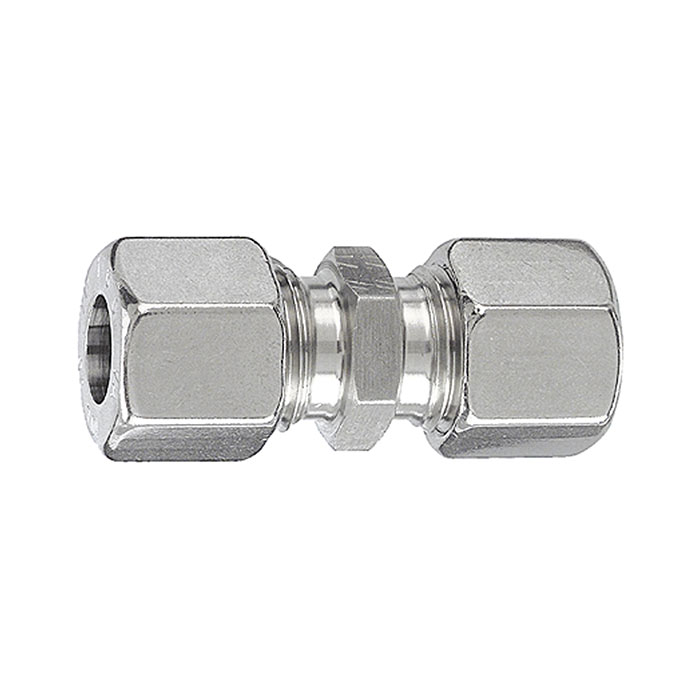

RIEGLER Straight fitting, Pipe exterior Ø 8 mm, Stainless steel 1.4571
Type number: ES 55
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight fitting made of stainless steel 1.4571 (DIN 2353), for pneumatic installation - type ES 55
The RIEGLER straight fitting, pipe outer Ø 8 mm, stainless steel 1.4571, 315 bar creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of stainless steel 1.4571 (DIN 2353). Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Stainless steel 1.4571 (DIN 2353) |
| Tube outer Ø | 8 mm |
| PN | 315 bar |
| Execution | Standard |
| L1 | 40 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14571 |
| Class name | STAINLESS STEEL |
