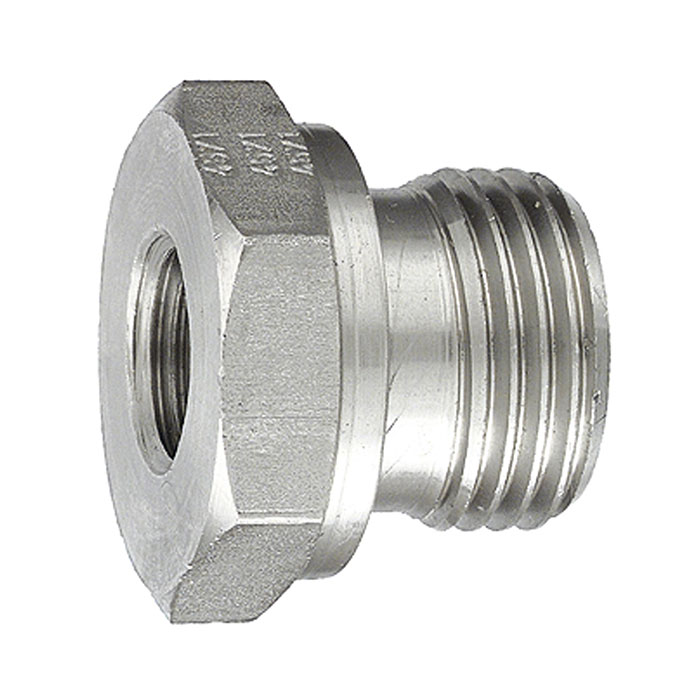

RIEGLER Short reducer, G 3/4 o., G 1/4 i., Stainless steel 1.4571
Type number: ES 312
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Short changeover reducer made of stainless steel 1.4571, for pneumatic installation - type ES 312
The RIEGLER short changeover reducer, G 3/4 a., G 1/4 i., stainless steel 1.4571 creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of stainless steel 1.4571. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Stainless steel 1.4571 |
| PN | 315 bar |
| L1 | 26 mm |
| L2 | 16 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1/4 |
| External thread | G 3/4 |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14571 |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

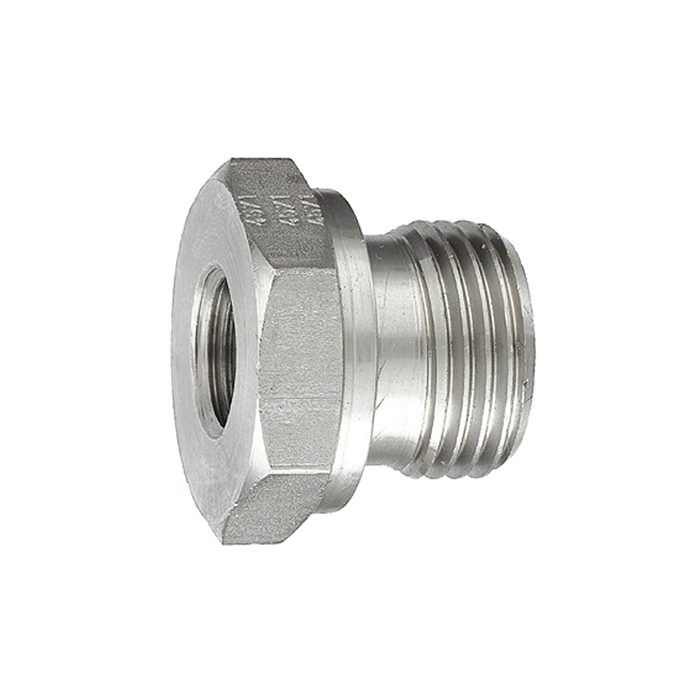

![[112501] RIEGLER Short reducer, G 1 1/2 o., G 1 i., Stainless steel 1.4571](/web/image/product.template/185406/image_128/%5B112501%5D%20RIEGLER%20Short%20reducer%2C%20G%201%201-2%20o.%2C%20G%201%20i.%2C%20Stainless%20steel%201.4571?unique=1bf0707)
|
