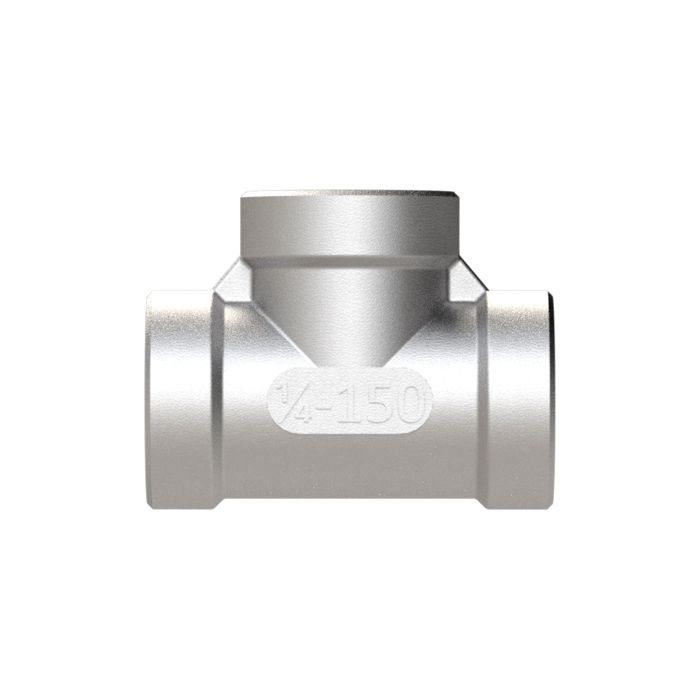

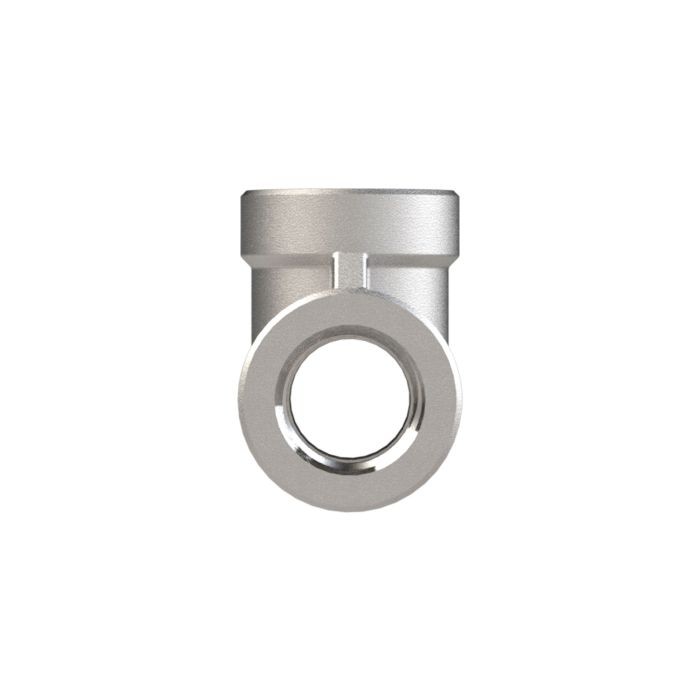

RIEGLER T-distributor, 3 x IT, Rp 3/8, Stainless steel 1.4408
Type number: 254.35-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER T-distributor for pipeline construction, max. 20 bar, Rp 3/8 - Type 254.35-ES
The RIEGLER T-distributor, 3 x inside, Rp 3/8, stainless steel 1.4408 connects different thread sizes. Designed for a maximum operating pressure of 20 bar. Connection thread Rp 3/8 - suitable for common industry standards. Flexible adapter for different thread sizes.
Field of application
Typical areas of application: Piping systems and thread adaptation.
| Max. operating pressure | 20 bar |
| Operating temperature max. | 175 °C |
| Thread | Rp 3/8 |

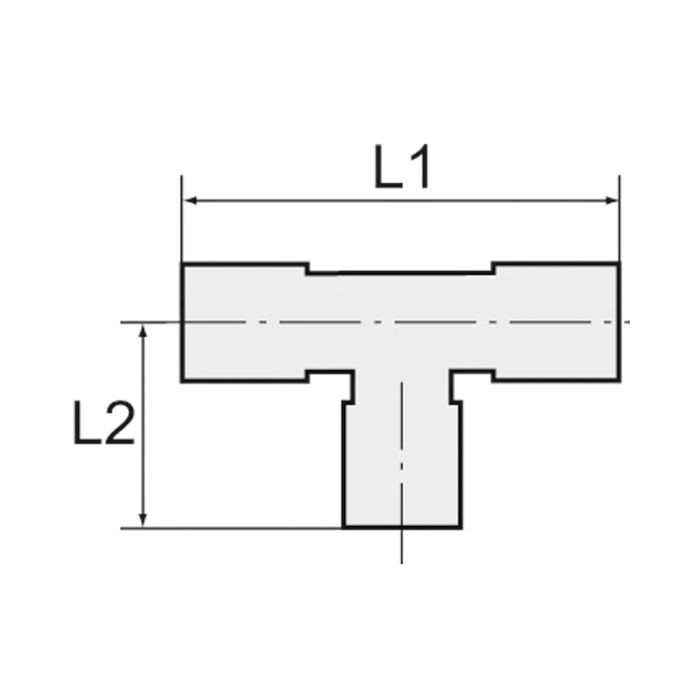

| L1 | 46.1 mm |
| L2 | 22 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112695] RIEGLER T-distributor, 3 x interior, Rp 1, Stainless steel 1.4408](/web/image/product.template/185600/image_128/%5B112695%5D%20RIEGLER%20T-distributor%2C%203%20x%20interior%2C%20Rp%201%2C%20Stainless%20steel%201.4408?unique=e5f6292)
|
Type number: 254.38-ES |
10.23 € | |
![[112693] RIEGLER T-distributor, 3 x IT, Rp 1/2, Stainless steel 1.4408](/web/image/product.template/185598/image_128/%5B112693%5D%20RIEGLER%20T-distributor%2C%203%20x%20IT%2C%20Rp%201-2%2C%20Stainless%20steel%201.4408?unique=bf707d3)
|
Type number: 254.36-ES |
5.77 € | |

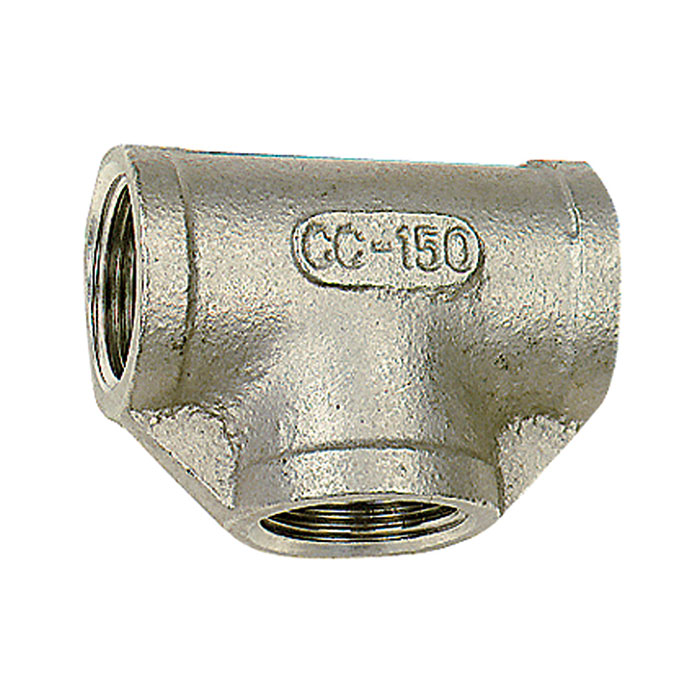

![[112691] RIEGLER T-distributor, 3 x IT, Rp 1/4, Stainless steel 1.4408](/web/image/product.template/185596/image_128/%5B112691%5D%20RIEGLER%20T-distributor%2C%203%20x%20IT%2C%20Rp%201-4%2C%20Stainless%20steel%201.4408?unique=52721c5)
|
Type number: 254.34-ES |
3.86 € | |
![[112690] RIEGLER T-distributor, 3 x IT, Rp 1/8, Stainless steel 1.4408](/web/image/product.template/185595/image_128/%5B112690%5D%20RIEGLER%20T-distributor%2C%203%20x%20IT%2C%20Rp%201-8%2C%20Stainless%20steel%201.4408?unique=e9612b2)
|
Type number: 254.33-ES |
3.86 € | |

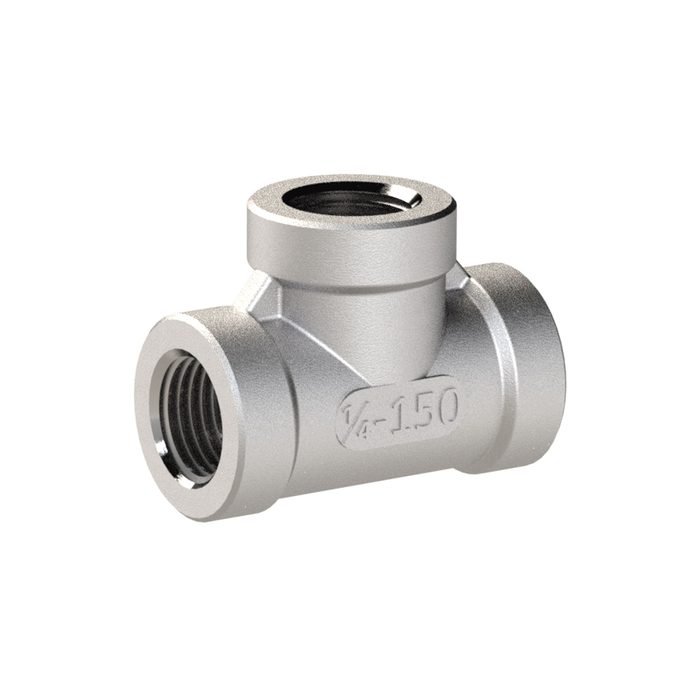

![[112694] RIEGLER T-distributor, 3 x IT, Rp 3/4, Stainless steel 1.4408](/web/image/product.template/185599/image_128/%5B112694%5D%20RIEGLER%20T-distributor%2C%203%20x%20IT%2C%20Rp%203-4%2C%20Stainless%20steel%201.4408?unique=9395682)
|
Type number: 254.37-ES |
7.24 € | |
