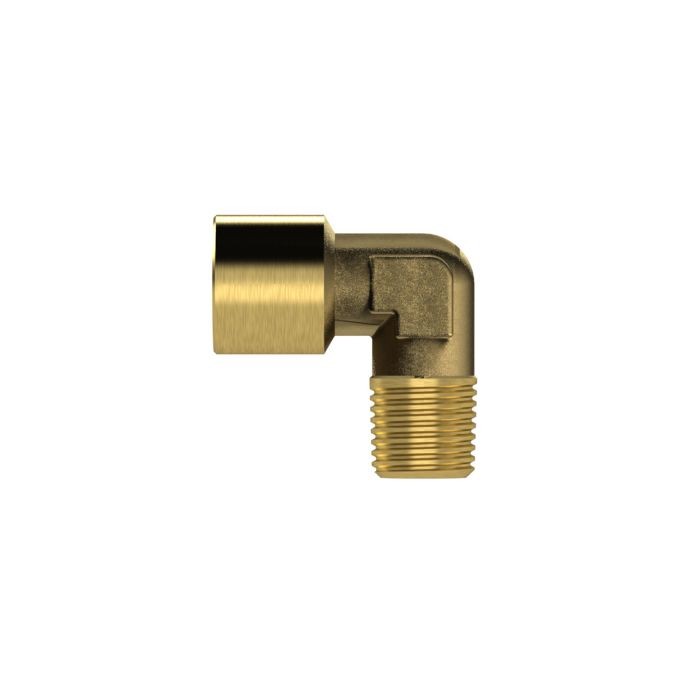

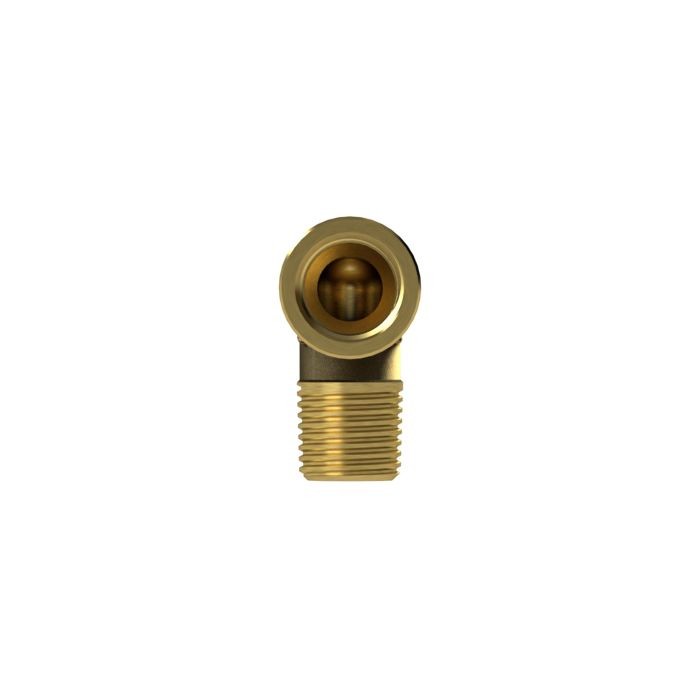

RIEGLER Angled piece, interior / exterior, G/R 1/2, AF 21, Bright brass
Type number: 253.18
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow for pipeline construction, max. 60 bar, G/R 1/2 - Type 253.18
The RIEGLER elbow fitting, internal/external, G/R 1/2, SW 21, bright brass connects different thread sizes. Designed for a maximum operating pressure of 60 bar. Connection thread G/R 1/2 - suitable for common industry standards. Flexible adapter for different thread sizes.
Field of application
Typical areas of application: Piping systems and thread adaptation.
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| Thread | G/R 1/2 |
| SW | 21 mm |
| L1 | 31 mm |
| L2 | 33.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112709] RIEGLER Angled piece, interior / exterior, G/R 1/4, AF 13, Bright brass](/web/image/product.template/185614/image_128/%5B112709%5D%20RIEGLER%20Angled%20piece%2C%20interior%20-%20exterior%2C%20G-R%201-4%2C%20AF%2013%2C%20Bright%20brass?unique=068fa4e)
|
Type number: 253.16 |
1.56 € | |
![[112708] RIEGLER Angled piece, interior / exterior, G/R 1/8, AF 10, Bright brass](/web/image/product.template/185613/image_128/%5B112708%5D%20RIEGLER%20Angled%20piece%2C%20interior%20-%20exterior%2C%20G-R%201-8%2C%20AF%2010%2C%20Bright%20brass?unique=3355446)
|
Type number: 253.15 |
1.04 € | |
![[112713] RIEGLER Angled piece, interior / exterior, G/R 1, AF 30, Bright brass](/web/image/product.template/185618/image_128/%5B112713%5D%20RIEGLER%20Angled%20piece%2C%20interior%20-%20exterior%2C%20G-R%201%2C%20AF%2030%2C%20Bright%20brass?unique=5c097f1)
|
Type number: 253.20 |
7.10 € | |

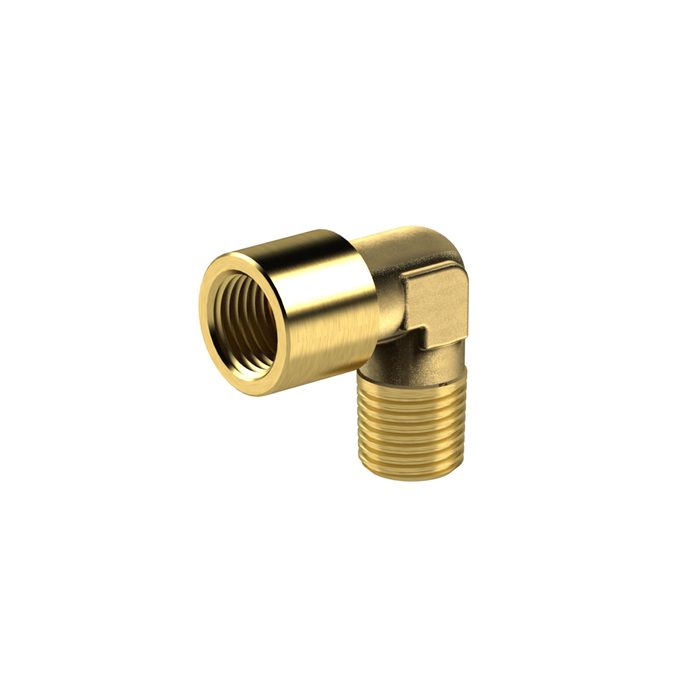

![[112712] RIEGLER Angled piece, interior / exterior, G/R 3/4, AF 25, Bright brass](/web/image/product.template/185617/image_128/%5B112712%5D%20RIEGLER%20Angled%20piece%2C%20interior%20-%20exterior%2C%20G-R%203-4%2C%20AF%2025%2C%20Bright%20brass?unique=5968833)
|
