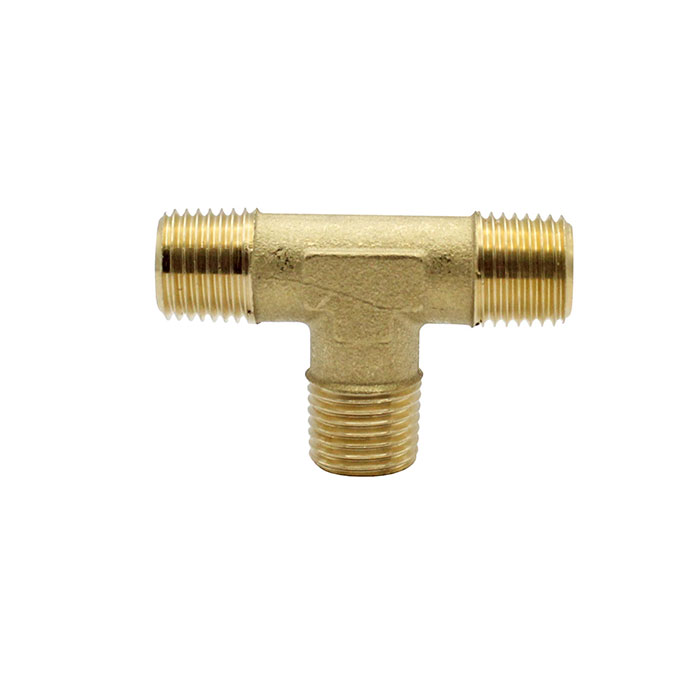

RIEGLER T-piece, exterior/exterior/exterior, R 1/8, AF 10, Bright brass
Type number: 254.02
EAN: 4047322065986
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
T-piece, external/external/external, R 1/8, SW 10, operating pressure max. 60 bar, operating temperature max. 150 °C, bare brass
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| Thread | R 1/8 |
| SW | 10 mm |

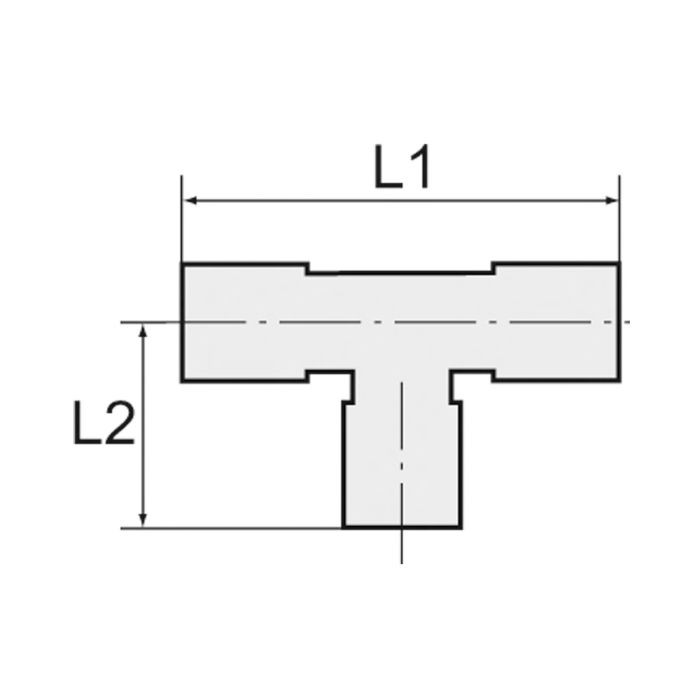

| L1 | 37 mm |
| L2 | 18.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
