RIEGLER Angled piece, ET/ET, R 1/8, AF 10, nickel-plated brass
Type number: N 253.00
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow for pipeline construction, max. 60 bar, R 1/8 - Type N 253.00
The RIEGLER elbow fitting, external/external, R 1/8, SW 10, nickel-plated brass connects different thread sizes. Designed for a maximum operating pressure of 60 bar. Connection thread R 1/8 - suitable for common industry standards. Flexible adapter for different thread sizes.
Field of application
Typical areas of application: Piping systems and thread adaptation.
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| Thread | R 1/8 |
| SW | 10 mm |
| L1 | 18.5 mm |
| L2 | 18.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112742] RIEGLER Angled piece, ET/ET, R 1/2, AF 21, nickel-plated brass](/web/image/product.template/185647/image_128/%5B112742%5D%20RIEGLER%20Angled%20piece%2C%20ET-ET%2C%20R%201-2%2C%20AF%2021%2C%20nickel-plated%20brass?unique=14f6593)
|
Type number: N 253.03 |
3.76 € | |
![[112740] RIEGLER Angled piece, ET/ET, R 1/4, AF 13, nickel-plated brass](/web/image/product.template/185645/image_128/%5B112740%5D%20RIEGLER%20Angled%20piece%2C%20ET-ET%2C%20R%201-4%2C%20AF%2013%2C%20nickel-plated%20brass?unique=8f92320)
|
Type number: N 253.01 |
1.38 € | |
![[112743] RIEGLER Angled piece, ET/ET, R 3/4, AF 25, nickel-plated brass](/web/image/product.template/185648/image_128/%5B112743%5D%20RIEGLER%20Angled%20piece%2C%20ET-ET%2C%20R%203-4%2C%20AF%2025%2C%20nickel-plated%20brass?unique=c86cc6e)
|
Type number: N 253.04 |
4.15 € | |

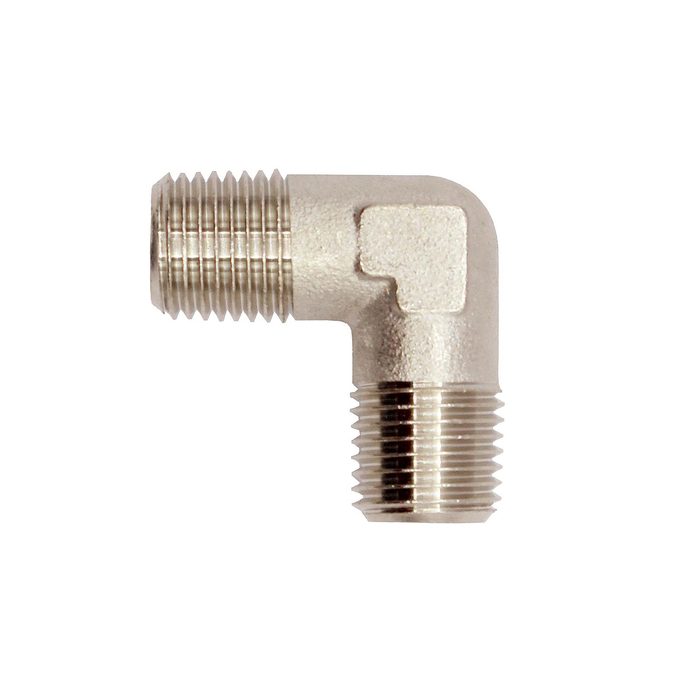

![[112741] RIEGLER Angled piece, ET/ET, R 3/8, AF 17, nickel-plated brass](/web/image/product.template/185646/image_128/%5B112741%5D%20RIEGLER%20Angled%20piece%2C%20ET-ET%2C%20R%203-8%2C%20AF%2017%2C%20nickel-plated%20brass?unique=9e058f7)
|
Type number: N 253.02 |
1.96 € | |
![[112738] RIEGLER Angled piece, exterior/exterior, M5, AF 9, nickel-plated brass](/web/image/product.template/185643/image_128/%5B112738%5D%20RIEGLER%20Angled%20piece%2C%20exterior-exterior%2C%20M5%2C%20AF%209%2C%20nickel-plated%20brass?unique=95c8285)
|
Type number: N 253.50 |
0.92 € | |
![[112744] RIEGLER Angled piece, exterior/exterior, R 1, AF 30, nickel-plated brass](/web/image/product.template/185649/image_128/%5B112744%5D%20RIEGLER%20Angled%20piece%2C%20exterior-exterior%2C%20R%201%2C%20AF%2030%2C%20nickel-plated%20brass?unique=7486000)
|
Type number: N 253.05 |
6.62 € | |
