RIEGLER Angled piece, exterior/exterior, R 3/8, Stainless steel 1.4404
Type number: ES 253.02
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow for pipeline construction, max. 150 bar, R 3/8 - Type ES 253.02
The RIEGLER elbow fitting, external/external, R 3/8, stainless steel 1.4404 connects different thread sizes. Designed for a maximum operating pressure of 150 bar. The operating temperature is between -20 °C and 150 °C. Connection thread R 3/8 - suitable for common industry standards. Flexible adapter for different thread sizes.
Field of application
Typical areas of application: Piping systems and thread adaptation.
| Max. operating pressure | 150 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Thread | R 3/8 |
| L1 | 24 mm |
| L2 | 24 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

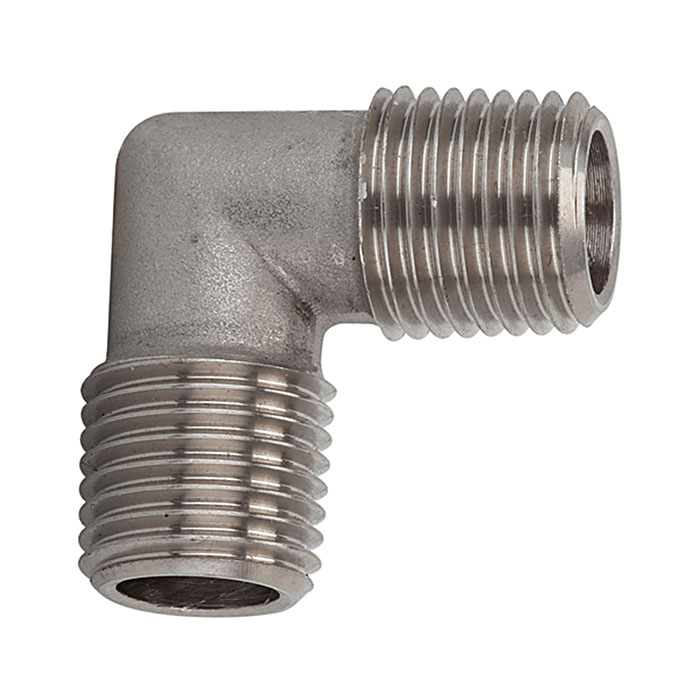

![[112809] RIEGLER Angled piece, exterior/exterior, R 1/2, Stainless steel 1.4404](/web/image/product.template/185714/image_128/%5B112809%5D%20RIEGLER%20Angled%20piece%2C%20exterior-exterior%2C%20R%201-2%2C%20Stainless%20steel%201.4404?unique=af27d75)
|
Type number: ES 253.03 |
32.23 € | |

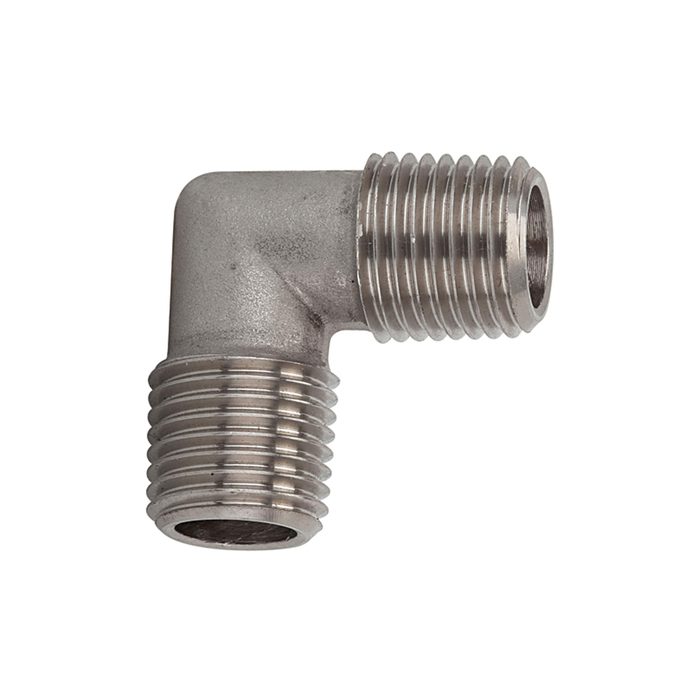

![[112807] RIEGLER Angled piece, exterior/exterior, R 1/4, Stainless steel 1.4404](/web/image/product.template/185712/image_128/%5B112807%5D%20RIEGLER%20Angled%20piece%2C%20exterior-exterior%2C%20R%201-4%2C%20Stainless%20steel%201.4404?unique=1e5f431)
|
