RIEGLER Fitting elbow 98, IT/ET, Rp 1, R 1, black malleable cast iron
Type number: TFV 98-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verschraubung Bogen 98, konisch dichtend, IG/AG, Rp 1, R 1, Betriebstemp. -20 °C bis 300 °C, schwarzer Temperguss, feuerverz.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Thread 1 | Rp 1 |
| Thread 2 | R 1 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112940] RIEGLER Fitting elbow 98, IT/ET, Rp 1 1/2, black malleable cast iron](/web/image/product.template/185845/image_128/%5B112940%5D%20RIEGLER%20Fitting%20elbow%2098%2C%20IT-ET%2C%20Rp%201%201-2%2C%20black%20malleable%20cast%20iron?unique=43100e3)
|
Type number: TFV 98-112 |
16.52 € | |

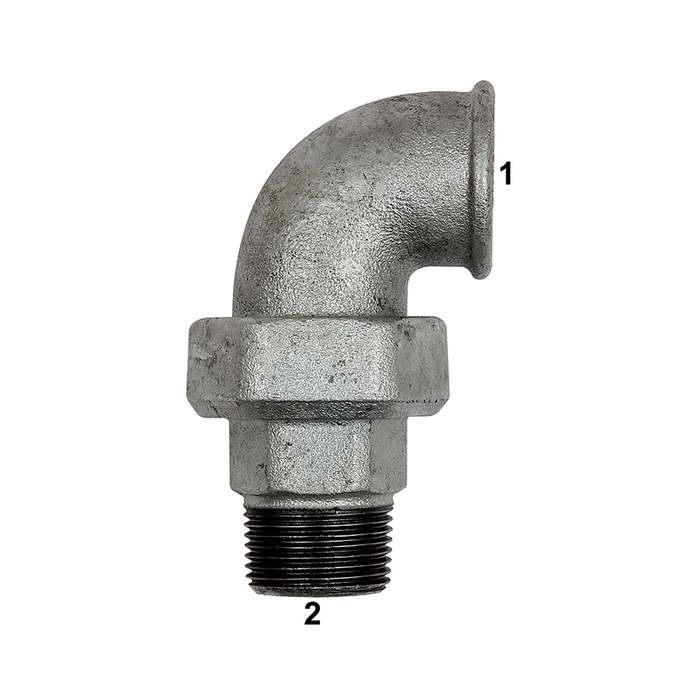

![[112939] RIEGLER Fitting elbow 98, IT/ET, Rp 1 1/4, black malleable cast iron](/web/image/product.template/185844/image_128/%5B112939%5D%20RIEGLER%20Fitting%20elbow%2098%2C%20IT-ET%2C%20Rp%201%201-4%2C%20black%20malleable%20cast%20iron?unique=bffb2fe)
|
