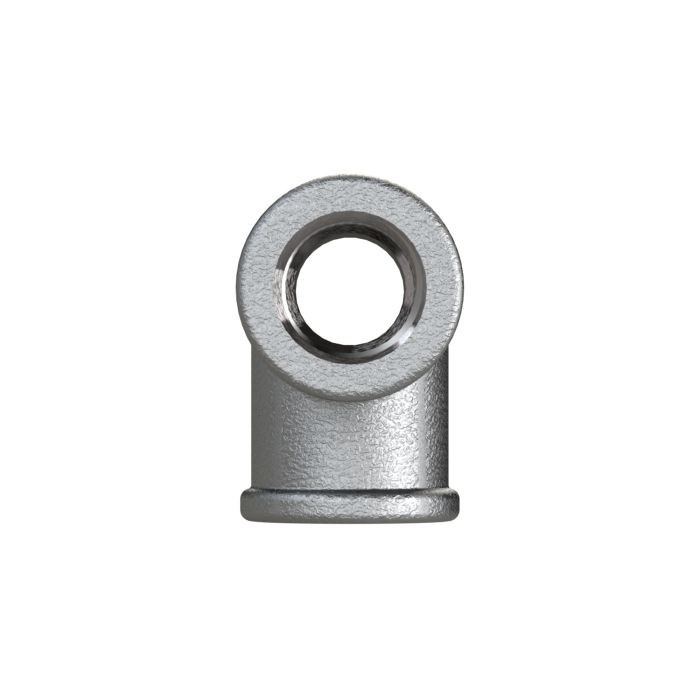

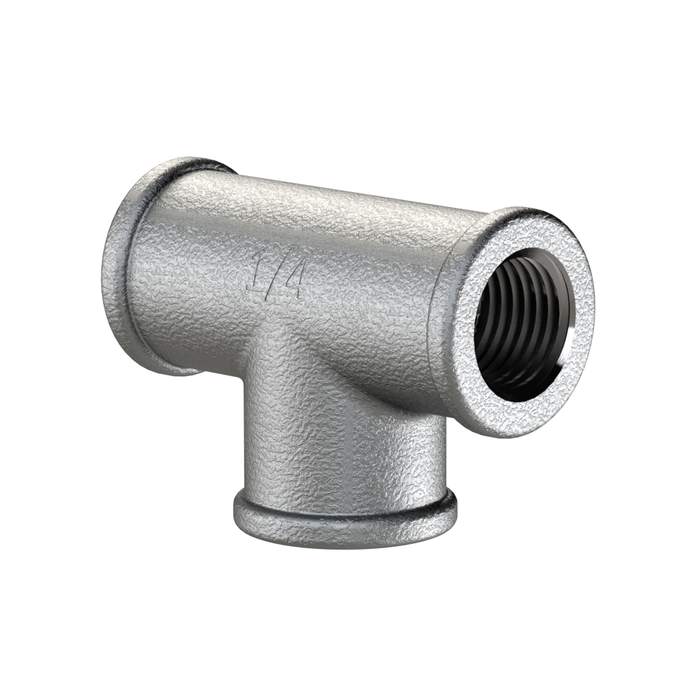

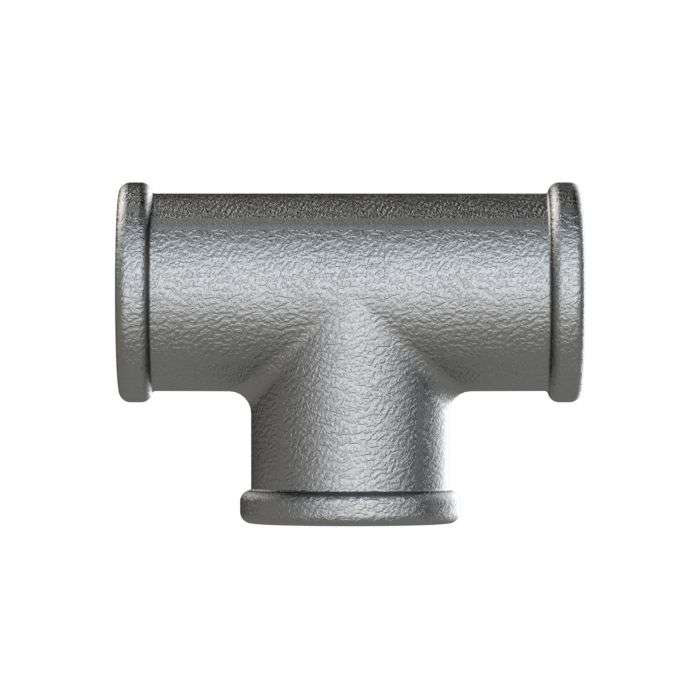

RIEGLER T-piece 130, IT/IT/IT, Rp 1 1/4, black malleable cast iron
Type number: TFT 130-114
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
T-Stück 130, IG/IG/IG, Rp 1 1/4, Betriebstemperatur -20 °C bis 300 °C, schwarzer Temperguss, feuerverzinkt, DIN EN 10242
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | Rp 1 1/4 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112965] RIEGLER T-piece 130, IT/IT/IT, Rp 1 1/2, black malleable cast iron](/web/image/product.template/185870/image_128/%5B112965%5D%20RIEGLER%20T-piece%20130%2C%20IT-IT-IT%2C%20Rp%201%201-2%2C%20black%20malleable%20cast%20iron?unique=a4cda56)
|
Type number: TFT 130-112 |
5.85 € | |
![[112961] RIEGLER T-piece 130, IT/IT/IT, Rp 1/2, black malleable cast iron](/web/image/product.template/185866/image_128/%5B112961%5D%20RIEGLER%20T-piece%20130%2C%20IT-IT-IT%2C%20Rp%201-2%2C%20black%20malleable%20cast%20iron?unique=b5c1ea3)
|
Type number: TFT 130-12 |
1.04 € | |
![[112959] RIEGLER T-piece 130, IT/IT/IT, Rp 1/4, black malleable cast iron](/web/image/product.template/185864/image_128/%5B112959%5D%20RIEGLER%20T-piece%20130%2C%20IT-IT-IT%2C%20Rp%201-4%2C%20black%20malleable%20cast%20iron?unique=7307fef)
|
Type number: TFT 130-14 |
1.65 € | |
![[112963] RIEGLER T-piece 130, IT/IT/IT, Rp 1, black malleable cast iron](/web/image/product.template/185868/image_128/%5B112963%5D%20RIEGLER%20T-piece%20130%2C%20IT-IT-IT%2C%20Rp%201%2C%20black%20malleable%20cast%20iron?unique=a7eaae9)
|
Type number: TFT 130-10 |
2.39 € | |
![[112967] RIEGLER T-piece 130, IT/IT/IT, Rp 2 1/2, black malleable cast iron](/web/image/product.template/185872/image_128/%5B112967%5D%20RIEGLER%20T-piece%20130%2C%20IT-IT-IT%2C%20Rp%202%201-2%2C%20black%20malleable%20cast%20iron?unique=634d2d4)
|
Type number: TFT 130-212 |
19.98 € | |
![[112966] RIEGLER T-piece 130, IT/IT/IT, Rp 2, black malleable cast iron](/web/image/product.template/185871/image_128/%5B112966%5D%20RIEGLER%20T-piece%20130%2C%20IT-IT-IT%2C%20Rp%202%2C%20black%20malleable%20cast%20iron?unique=66781ee)
|
Type number: TFT 130-20 |
9.01 € | |
![[112962] RIEGLER T-piece 130, IT/IT/IT, Rp 3/4, black malleable cast iron](/web/image/product.template/185867/image_128/%5B112962%5D%20RIEGLER%20T-piece%20130%2C%20IT-IT-IT%2C%20Rp%203-4%2C%20black%20malleable%20cast%20iron?unique=8c52c4b)
|
Type number: TFT 130-34 |
1.65 € | |
![[112960] RIEGLER T-piece 130, IT/IT/IT, Rp 3/8, black malleable cast iron](/web/image/product.template/185865/image_128/%5B112960%5D%20RIEGLER%20T-piece%20130%2C%20IT-IT-IT%2C%20Rp%203-8%2C%20black%20malleable%20cast%20iron?unique=59b9f4e)
|
Type number: TFT 130-38 |
1.44 € | |

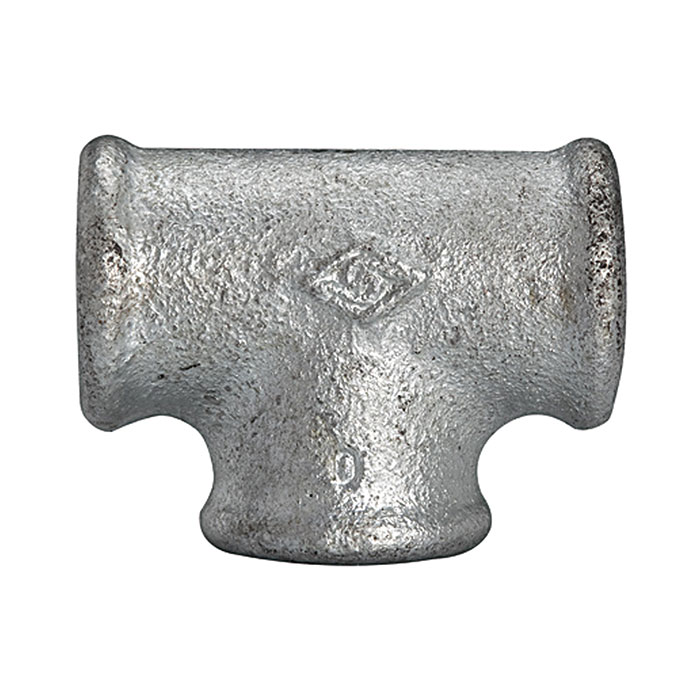

![[112968] RIEGLER T-piece 130, IT/IT/IT, Rp 3, black malleable cast iron](/web/image/product.template/185873/image_128/%5B112968%5D%20RIEGLER%20T-piece%20130%2C%20IT-IT-IT%2C%20Rp%203%2C%20black%20malleable%20cast%20iron?unique=dcaa9fd)
|
Type number: TFT 130-30 |
26.72 € | |
