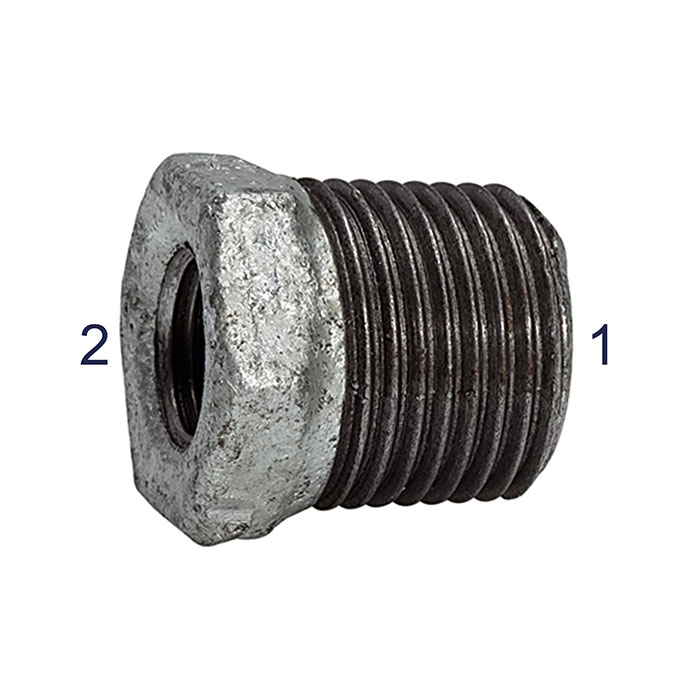

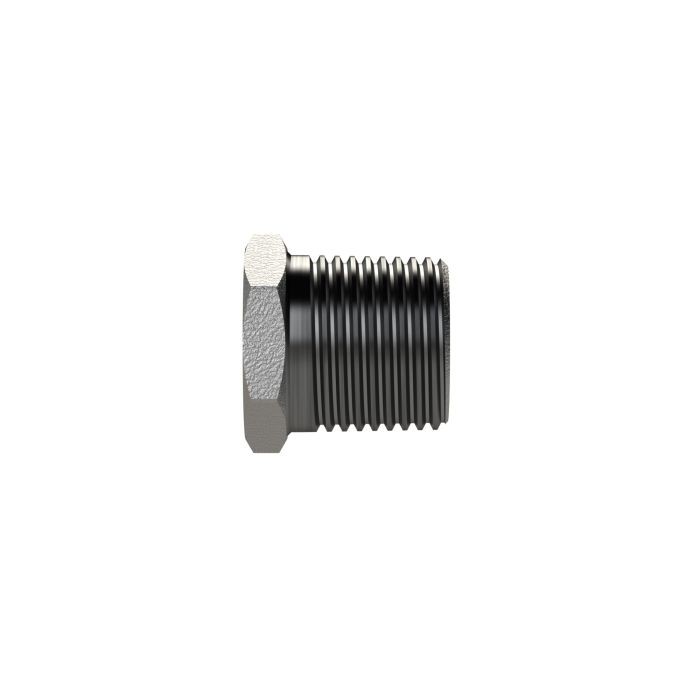

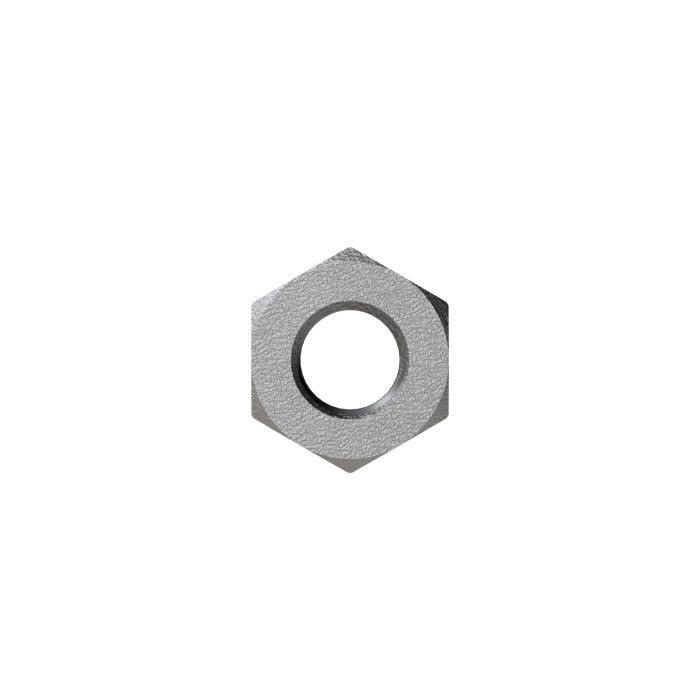

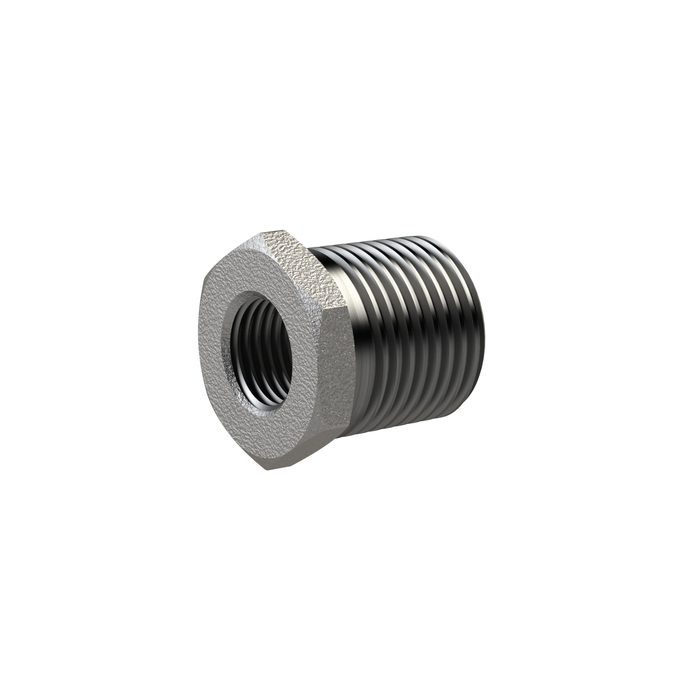

RIEGLER Reducing piece 241, ET/IT, R 2 o., Rp 1 1/4 i.
Type number: TFR 241-20114
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Reducer 241, male/female, R 2 a., Rp 1 1/4 i., operating temp. -20 °C to 300 °C, black malleable cast iron, hot-dip galvanized, DIN EN 10242
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Thread 1 | R 2 |
| Thread 2 | Rp 1 1/4 |
| Class name | FLEX |
