RIEGLER Double threaded nipple 280, ET/ET, R 2, black malleable cast iron
Type number: TFD 280-20
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Double threaded nipple 280 in black malleable cast iron B350-10 Design Symbol A - Type TFD 280-20
The RIEGLER double threaded nipple 280, AG/AG R 2, malleable cast iron black hot-dip galvanized connects pipelines permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread R 2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | R 2 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113111] RIEGLER Double threaded nipple280 ET/ET R 1 1/2 black malleable cast iron](/web/image/product.template/186012/image_128/%5B113111%5D%20RIEGLER%20Double%20threaded%20nipple280%20ET-ET%20R%201%201-2%20black%20malleable%20cast%20iron?unique=a888d13)
|
Type number: TFD 280-112 |
2.58 € | |

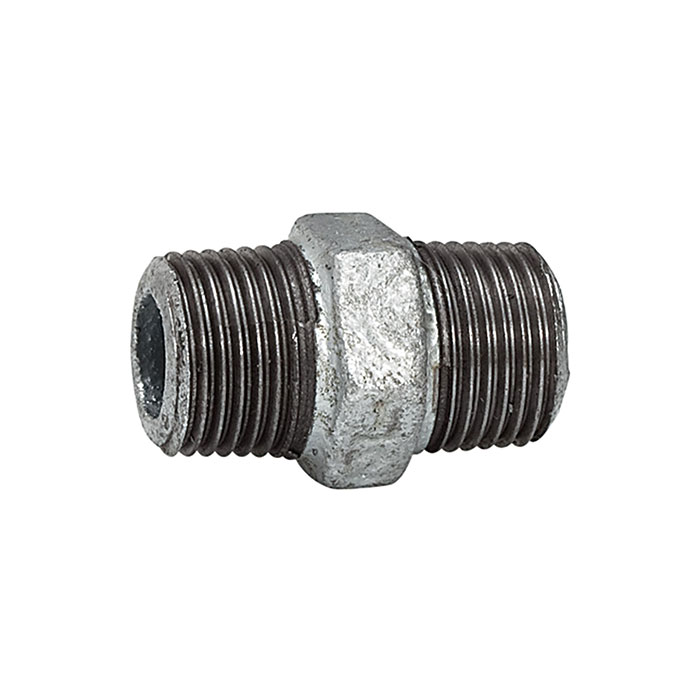

![[113110] RIEGLER Double threaded nipple280 ET/ET R 1 1/4 black malleable cast iron](/web/image/product.template/186011/image_128/%5B113110%5D%20RIEGLER%20Double%20threaded%20nipple280%20ET-ET%20R%201%201-4%20black%20malleable%20cast%20iron?unique=e76d424)
|
Type number: TFD 280-114 |
2.24 € | |
![[113107] RIEGLER Double threaded nipple 280 ET/ET, R 1/2 black malleable cast iron](/web/image/product.template/186008/image_128/%5B113107%5D%20RIEGLER%20Double%20threaded%20nipple%20280%20ET-ET%2C%20R%201-2%20black%20malleable%20cast%20iron?unique=906d1b3)
|
Type number: TFD 280-12 |
0.73 € | |
![[113105] RIEGLER Double threaded nipple 280 ET/ET, R 1/4 black malleable cast iron](/web/image/product.template/186006/image_128/%5B113105%5D%20RIEGLER%20Double%20threaded%20nipple%20280%20ET-ET%2C%20R%201-4%20black%20malleable%20cast%20iron?unique=5a931f8)
|
Type number: TFD 280-14 |
1.08 € | |
![[113109] RIEGLER Double threaded nipple 280, ET/ET, R 1, black malleable cast iron](/web/image/product.template/186010/image_128/%5B113109%5D%20RIEGLER%20Double%20threaded%20nipple%20280%2C%20ET-ET%2C%20R%201%2C%20black%20malleable%20cast%20iron?unique=4c971a8)
|
Type number: TFD 280-10 |
1.29 € | |
![[113113] RIEGLER Double threaded nipple280 ET/ET R 2 1/2 black malleable cast iron](/web/image/product.template/186014/image_128/%5B113113%5D%20RIEGLER%20Double%20threaded%20nipple280%20ET-ET%20R%202%201-2%20black%20malleable%20cast%20iron?unique=bc74f99)
|
Type number: TFD 280-212 |
8.10 € | |

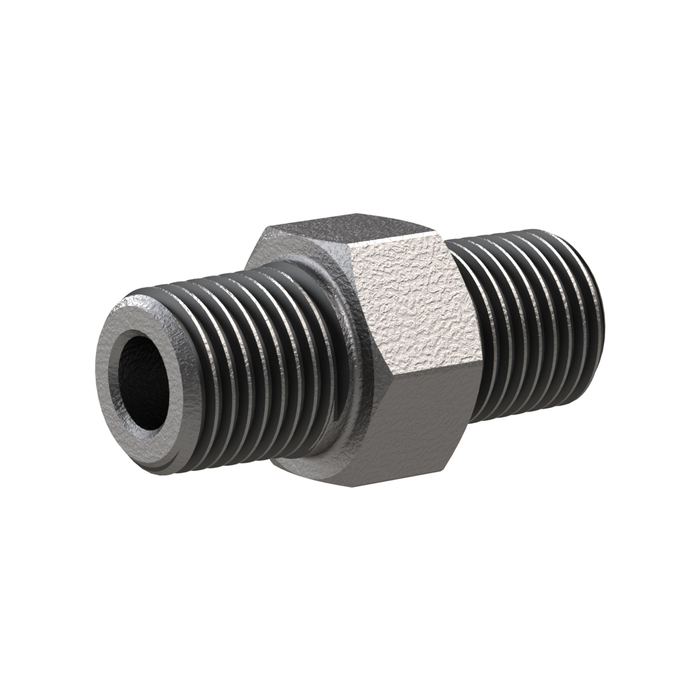

![[113108] RIEGLER Double threaded nipple 280 ET/ET, R 3/4 black malleable cast iron](/web/image/product.template/186009/image_128/%5B113108%5D%20RIEGLER%20Double%20threaded%20nipple%20280%20ET-ET%2C%20R%203-4%20black%20malleable%20cast%20iron?unique=01f12a9)
|
Type number: TFD 280-34 |
0.89 € | |
![[113106] RIEGLER Double threaded nipple 280 ET/ET, R 3/8 black malleable cast iron](/web/image/product.template/186007/image_128/%5B113106%5D%20RIEGLER%20Double%20threaded%20nipple%20280%20ET-ET%2C%20R%203-8%20black%20malleable%20cast%20iron?unique=ce46032)
|
Type number: TFD 280-38 |
1.08 € | |
![[113114] RIEGLER Double threaded nipple 280, ET/ET, R 3, black malleable cast iron](/web/image/product.template/186015/image_128/%5B113114%5D%20RIEGLER%20Double%20threaded%20nipple%20280%2C%20ET-ET%2C%20R%203%2C%20black%20malleable%20cast%20iron?unique=0651393)
|
Type number: TFD 280-30 |
10.20 € | |
