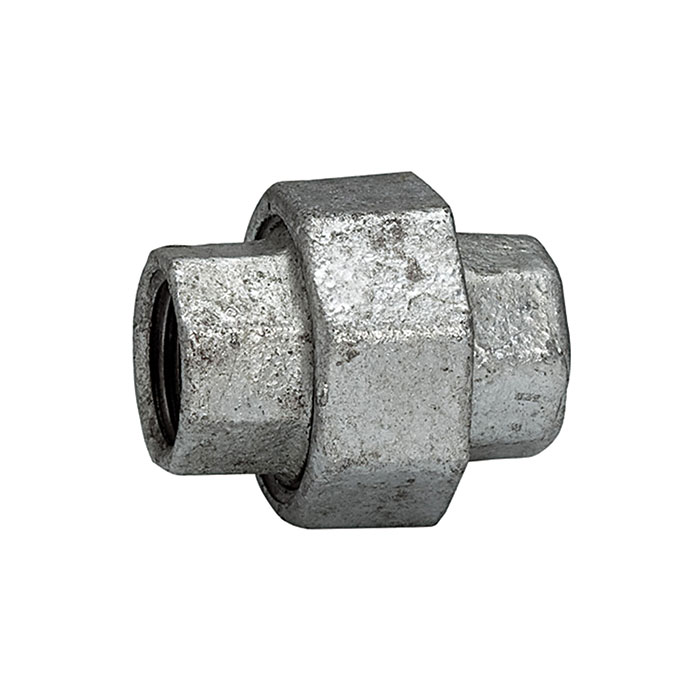

RIEGLER Fitting 330, IT/IT, Rp/Rp 1 1/4, black malleable cast iron
Type number: TFV 330-114-D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw connection 330 IG/IG made of black malleable cast iron B350-10 Design Symbol A - Type TFV 330-114-D
The RIEGLER union 330 IG/IG, Rp/Rp 1 1/4, black malleable cast iron hot-dip galvanized connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 200 °C. Connection thread Rp/Rp 1 1/4 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | Rp/Rp 1 1/4 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113166] RIEGLER Fitting 330, IT/IT, Rp/Rp 1 1/2, black malleable cast iron](/web/image/product.template/186067/image_128/%5B113166%5D%20RIEGLER%20Fitting%20330%2C%20IT-IT%2C%20Rp-Rp%201%201-2%2C%20black%20malleable%20cast%20iron?unique=a61c47c)
|
Type number: TFV 330-112-D |
8.98 € | |
![[113162] RIEGLER Fitting 330, IT/IT, Rp/Rp 1/2, black malleable cast iron](/web/image/product.template/186063/image_128/%5B113162%5D%20RIEGLER%20Fitting%20330%2C%20IT-IT%2C%20Rp-Rp%201-2%2C%20black%20malleable%20cast%20iron?unique=6237733)
|
Type number: TFV 330-12-D |
3.37 € | |
![[113160] RIEGLER Fitting 330, IT/IT, Rp/Rp 1/4, black malleable cast iron](/web/image/product.template/186061/image_128/%5B113160%5D%20RIEGLER%20Fitting%20330%2C%20IT-IT%2C%20Rp-Rp%201-4%2C%20black%20malleable%20cast%20iron?unique=0a8001d)
|
Type number: TFV 330-14-D |
7.09 € | |
![[113164] RIEGLER Fitting 330, IT/IT, Rp/Rp 1, NBR seal, black malleable cast iron](/web/image/product.template/186065/image_128/%5B113164%5D%20RIEGLER%20Fitting%20330%2C%20IT-IT%2C%20Rp-Rp%201%2C%20NBR%20seal%2C%20black%20malleable%20cast%20iron?unique=df24629)
|
Type number: TFV 330-10-D |
5.08 € | |
![[113168] RIEGLER Fitting 330, IT/IT, Rp/Rp 2 1/2, black malleable cast iron](/web/image/product.template/186069/image_128/%5B113168%5D%20RIEGLER%20Fitting%20330%2C%20IT-IT%2C%20Rp-Rp%202%201-2%2C%20black%20malleable%20cast%20iron?unique=3abc7ad)
|
Type number: TFV 330-212-D |
28.86 € | |
![[113167] RIEGLER Fitting 330, IT/IT, Rp/Rp 2, NBR seal, black malleable cast iron](/web/image/product.template/186068/image_128/%5B113167%5D%20RIEGLER%20Fitting%20330%2C%20IT-IT%2C%20Rp-Rp%202%2C%20NBR%20seal%2C%20black%20malleable%20cast%20iron?unique=4816f46)
|
Type number: TFV 330-20-D |
14.43 € | |
![[113163] RIEGLER Fitting 330, IT/IT, Rp/Rp 3/4, black malleable cast iron](/web/image/product.template/186064/image_128/%5B113163%5D%20RIEGLER%20Fitting%20330%2C%20IT-IT%2C%20Rp-Rp%203-4%2C%20black%20malleable%20cast%20iron?unique=d24ac64)
|
Type number: TFV 330-34-D |
4.19 € | |
![[113161] RIEGLER Fitting 330, IT/IT, Rp/Rp 3/8, black malleable cast iron](/web/image/product.template/186062/image_128/%5B113161%5D%20RIEGLER%20Fitting%20330%2C%20IT-IT%2C%20Rp-Rp%203-8%2C%20black%20malleable%20cast%20iron?unique=6fa64d7)
|
Type number: TFV 330-38-D |
4.41 € | |
