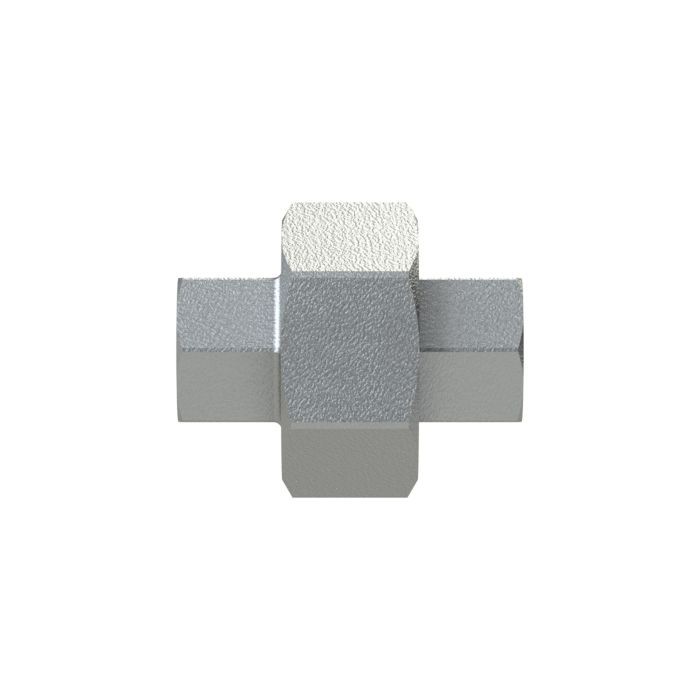

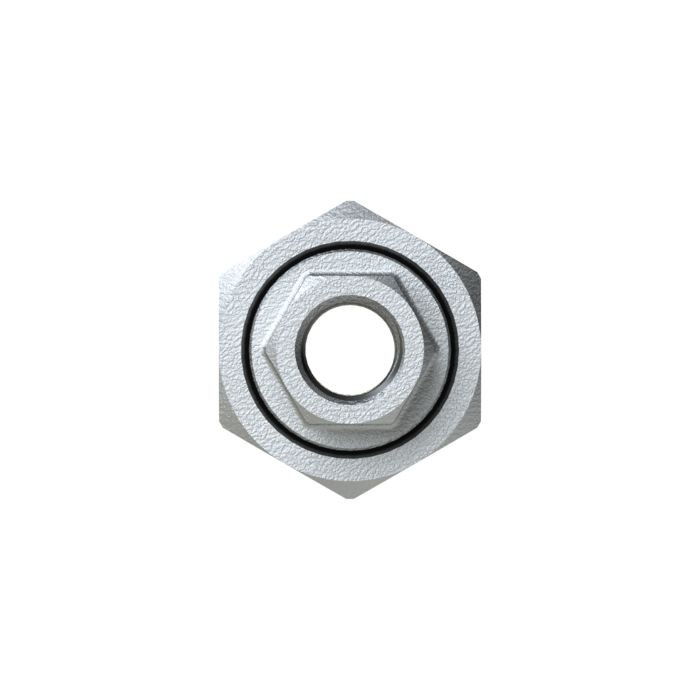

RIEGLER Fitting 340, IT/IT, Rp/Rp 1, black malleable cast iron
Type number: TFV 340-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verschraubung 340, konisch dichtend, IG/IG, Rp/Rp 1, Betriebstemperatur -20 °C bis 300 °C, schwarzer Temperguss, feuerverzinkt
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | Rp/Rp 1 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113185] RIEGLER Fitting 340, IT/IT, Rp/Rp 1 1/2, black malleable cast iron](/web/image/product.template/186086/image_128/%5B113185%5D%20RIEGLER%20Fitting%20340%2C%20IT-IT%2C%20Rp-Rp%201%201-2%2C%20black%20malleable%20cast%20iron?unique=e71d2af)
|
Type number: TFV 340-112 |
10.17 € | |
![[113184] RIEGLER Fitting 340, IT/IT, Rp/Rp 1 1/4, black malleable cast iron](/web/image/product.template/186085/image_128/%5B113184%5D%20RIEGLER%20Fitting%20340%2C%20IT-IT%2C%20Rp-Rp%201%201-4%2C%20black%20malleable%20cast%20iron?unique=5df5363)
|
Type number: TFV 340-114 |
8.23 € | |
![[113181] RIEGLER Fitting 340, IT/IT, Rp/Rp 1/2, black malleable cast iron](/web/image/product.template/186082/image_128/%5B113181%5D%20RIEGLER%20Fitting%20340%2C%20IT-IT%2C%20Rp-Rp%201-2%2C%20black%20malleable%20cast%20iron?unique=0a33c50)
|
Type number: TFV 340-12 |
3.75 € | |
![[113179] RIEGLER Fitting 340, IT/IT, Rp/Rp 1/4, black malleable cast iron](/web/image/product.template/186080/image_128/%5B113179%5D%20RIEGLER%20Fitting%20340%2C%20IT-IT%2C%20Rp-Rp%201-4%2C%20black%20malleable%20cast%20iron?unique=65c919f)
|
Type number: TFV 340-14 |
5.03 € | |
![[113187] RIEGLER Fitting 340, IT/IT, Rp/Rp 2 1/2, black malleable cast iron](/web/image/product.template/186088/image_128/%5B113187%5D%20RIEGLER%20Fitting%20340%2C%20IT-IT%2C%20Rp-Rp%202%201-2%2C%20black%20malleable%20cast%20iron?unique=5acff5a)
|
Type number: TFV 340-212 |
33.45 € | |
![[113186] RIEGLER Fitting 340, IT/IT, Rp/Rp 2, black malleable cast iron](/web/image/product.template/186087/image_128/%5B113186%5D%20RIEGLER%20Fitting%20340%2C%20IT-IT%2C%20Rp-Rp%202%2C%20black%20malleable%20cast%20iron?unique=a04303f)
|
Type number: TFV 340-20 |
15.65 € | |
![[113182] RIEGLER Fitting 340, IT/IT, Rp/Rp 3/4, black malleable cast iron](/web/image/product.template/186083/image_128/%5B113182%5D%20RIEGLER%20Fitting%20340%2C%20IT-IT%2C%20Rp-Rp%203-4%2C%20black%20malleable%20cast%20iron?unique=d1f60b8)
|
Type number: TFV 340-34 |
4.77 € | |

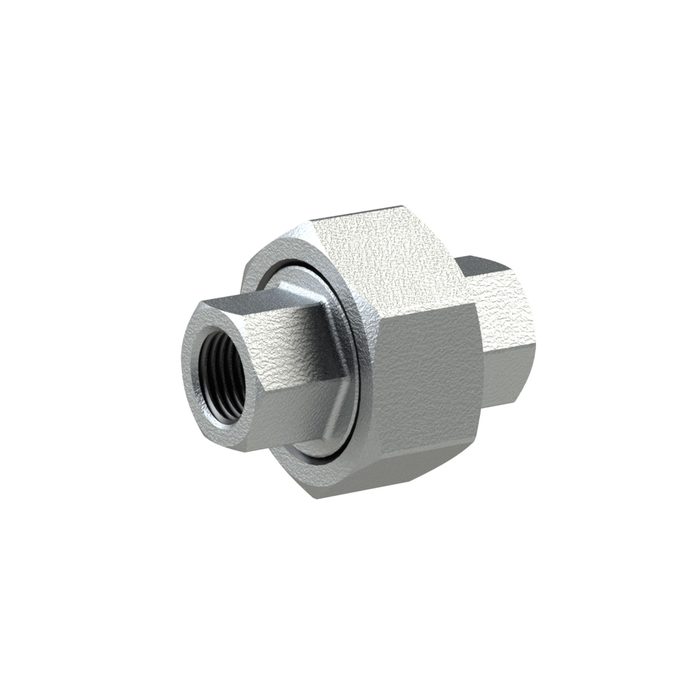

![[113180] RIEGLER Fitting 340, IT/IT, Rp/Rp 3/8, black malleable cast iron](/web/image/product.template/186081/image_128/%5B113180%5D%20RIEGLER%20Fitting%20340%2C%20IT-IT%2C%20Rp-Rp%203-8%2C%20black%20malleable%20cast%20iron?unique=0628f12)
|
Type number: TFV 340-38 |
4.66 € | |
![[113188] RIEGLER Fitting 340, IT/IT, Rp/Rp 3, black malleable cast iron](/web/image/product.template/186089/image_128/%5B113188%5D%20RIEGLER%20Fitting%20340%2C%20IT-IT%2C%20Rp-Rp%203%2C%20black%20malleable%20cast%20iron?unique=1366894)
|
Type number: TFV 340-30 |
48.18 € | |
