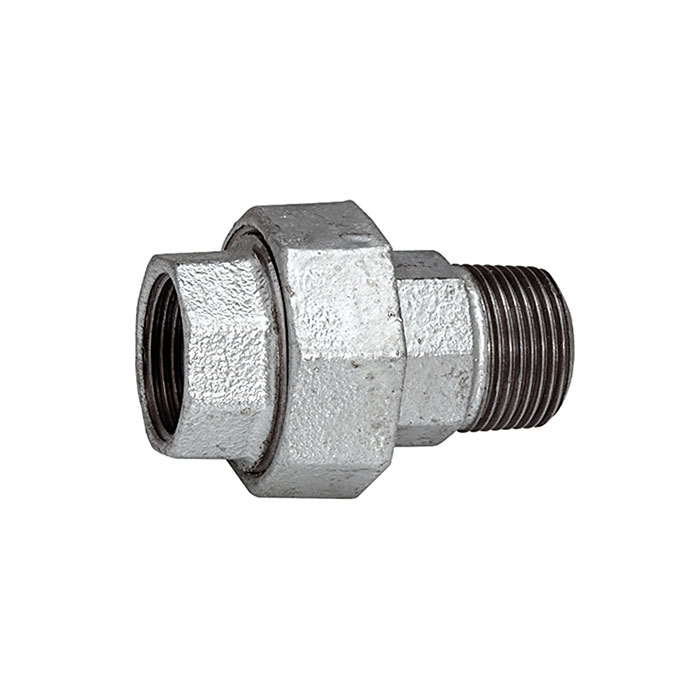

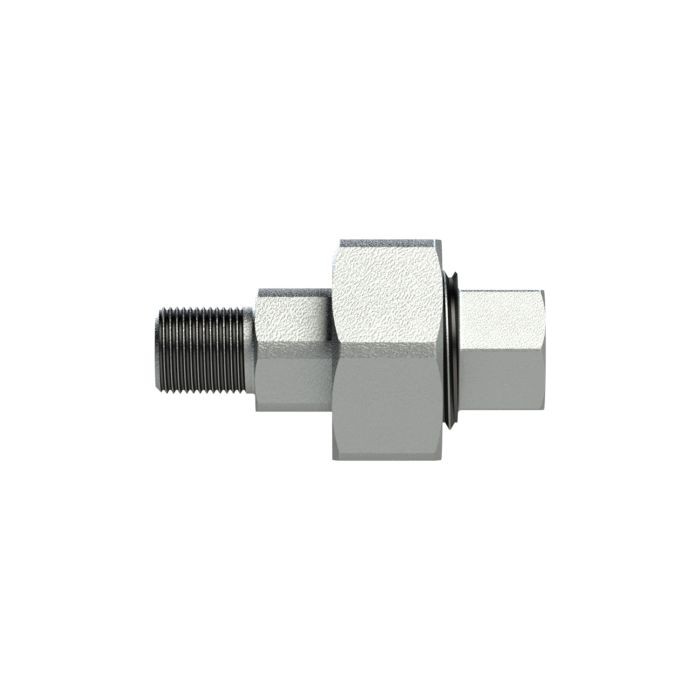

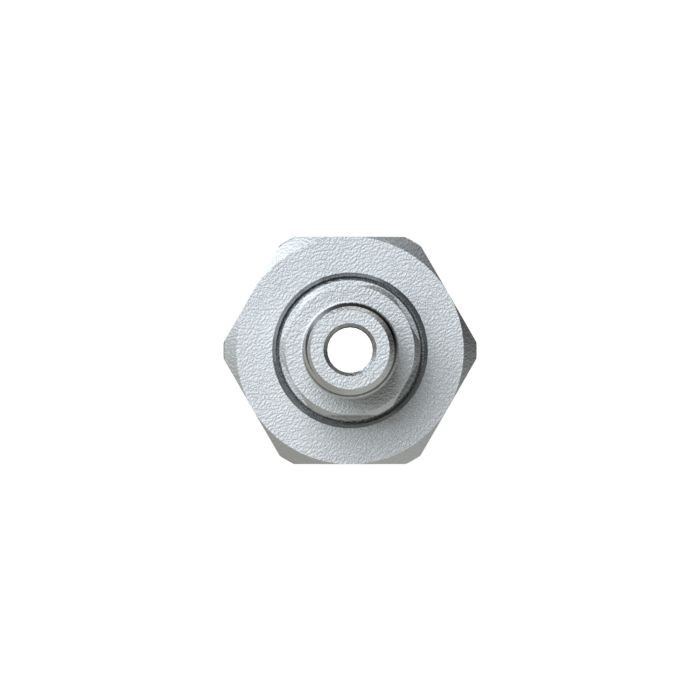

RIEGLER Fitting 341, IT/ET, Rp/R 1/2, black malleable cast iron
Type number: TFV 341-12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fitting 341 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFV 341-12
The RIEGLER union 341, IG/AG, Rp/R 1/2, black malleable cast iron hot-dip galvanized connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread Rp/R 1/2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | Rp/R 1/2 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113195] RIEGLER Fitting 341, IT/ET, Rp/R 1 1/2, black malleable cast iron](/web/image/product.template/186096/image_128/%5B113195%5D%20RIEGLER%20Fitting%20341%2C%20IT-ET%2C%20Rp-R%201%201-2%2C%20black%20malleable%20cast%20iron?unique=527ea81)
|
Type number: TFV 341-112 |
10.66 € | |
![[113194] RIEGLER Fitting 341, IT/ET, Rp/R 1 1/4, black malleable cast iron](/web/image/product.template/186095/image_128/%5B113194%5D%20RIEGLER%20Fitting%20341%2C%20IT-ET%2C%20Rp-R%201%201-4%2C%20black%20malleable%20cast%20iron?unique=5ce0cbb)
|
Type number: TFV 341-114 |
8.25 € | |
![[113189] RIEGLER Fitting 341, IT/ET, Rp/R 1/4, black malleable cast iron](/web/image/product.template/186090/image_128/%5B113189%5D%20RIEGLER%20Fitting%20341%2C%20IT-ET%2C%20Rp-R%201-4%2C%20black%20malleable%20cast%20iron?unique=f0b5877)
|
Type number: TFV 341-14 |
7.41 € | |
![[113193] RIEGLER Fitting 341, IT/ET, Rp/R 1, black malleable cast iron](/web/image/product.template/186094/image_128/%5B113193%5D%20RIEGLER%20Fitting%20341%2C%20IT-ET%2C%20Rp-R%201%2C%20black%20malleable%20cast%20iron?unique=5d0b8ed)
|
Type number: TFV 341-10 |
6.00 € | |
![[113197] RIEGLER Fitting 341, IT/ET, Rp/R 2 1/2, black malleable cast iron](/web/image/product.template/186098/image_128/%5B113197%5D%20RIEGLER%20Fitting%20341%2C%20IT-ET%2C%20Rp-R%202%201-2%2C%20black%20malleable%20cast%20iron?unique=c2e2df6)
|
Type number: TFV 341-212 |
35.43 € | |

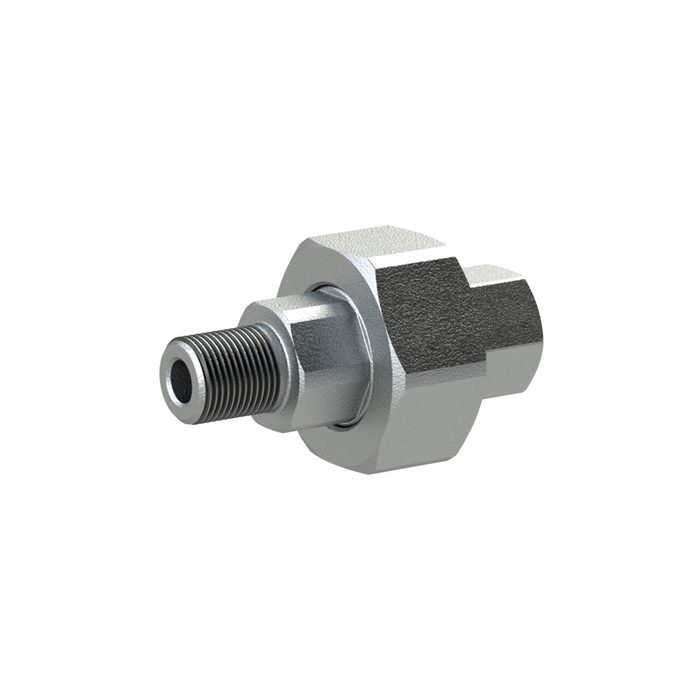

![[113196] RIEGLER Fitting 341, IT/ET, Rp/R 2, black malleable cast iron](/web/image/product.template/186097/image_128/%5B113196%5D%20RIEGLER%20Fitting%20341%2C%20IT-ET%2C%20Rp-R%202%2C%20black%20malleable%20cast%20iron?unique=6765a44)
|
Type number: TFV 341-20 |
16.67 € | |
![[113192] RIEGLER Fitting 341, IT/ET, Rp/R 3/4, black malleable cast iron](/web/image/product.template/186093/image_128/%5B113192%5D%20RIEGLER%20Fitting%20341%2C%20IT-ET%2C%20Rp-R%203-4%2C%20black%20malleable%20cast%20iron?unique=8f1851f)
|
Type number: TFV 341-34 |
5.11 € | |
![[113190] RIEGLER Fitting 341, IT/ET, Rp/R 3/8, black malleable cast iron](/web/image/product.template/186091/image_128/%5B113190%5D%20RIEGLER%20Fitting%20341%2C%20IT-ET%2C%20Rp-R%203-8%2C%20black%20malleable%20cast%20iron?unique=3878225)
|
Type number: TFV 341-38 |
4.20 € | |
![[113198] RIEGLER Fitting 341, IT/ET, Rp/R 3, black malleable cast iron](/web/image/product.template/186099/image_128/%5B113198%5D%20RIEGLER%20Fitting%20341%2C%20IT-ET%2C%20Rp-R%203%2C%20black%20malleable%20cast%20iron?unique=ea0f694)
|
Type number: TFV 341-30 |
55.55 € | |
