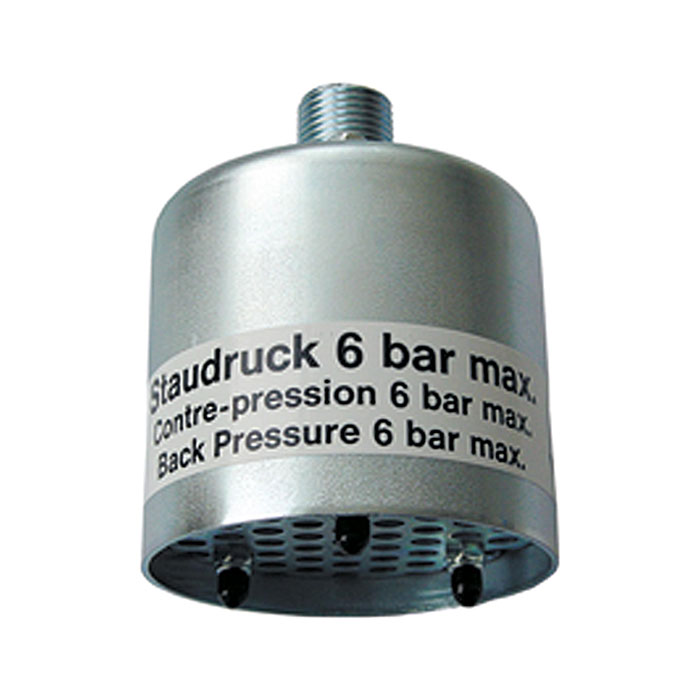

RIEGLER High performance silencer, G 1/2, Supply pressure max. 6 bar
Type number: 570-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER High-performance silencer made of galvanized sheet steel, for noise protection, G 1/2 - type 570-1
The RIEGLER high-performance silencer, G 1/2, galvanized sheet steel significantly reduces the blow-off noise of pneumatic valves and cylinders. The housing is made of galvanized sheet steel. The maximum inlet pressure is 6 bar. The operating temperature is between -10 °C and 90 °C. G 1/2 connection thread - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Inlet pressure max. | 6 bar |
| Housing | Galvanized sheet steel |
| Material | Galvanized perforated sheets, polyester felt washers |
| Installation position | any |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1/2 |
| Flow rate at 6 bar | 13350 l/min |
| A | 14 mm |
| B | 103 mm |
| C | 80 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113299] RIEGLER High performance silencer G 1 1/2, Supply pressure max. 6 bar](/web/image/product.template/186200/image_128/%5B113299%5D%20RIEGLER%20High%20performance%20silencer%20G%201%201-2%2C%20Supply%20pressure%20max.%206%20bar?unique=fcbce3c)
|
Type number: 570-5 |
151.48 € | |
![[113298] RIEGLER High performance silencer G 1 1/4, Supply pressure max. 6 bar](/web/image/product.template/186199/image_128/%5B113298%5D%20RIEGLER%20High%20performance%20silencer%20G%201%201-4%2C%20Supply%20pressure%20max.%206%20bar?unique=07365ab)
|
Type number: 570-4 |
95.52 € | |
![[113297] RIEGLER High performance silencer, G 1, Supply pressure max. 6 bar](/web/image/product.template/186198/image_128/%5B113297%5D%20RIEGLER%20High%20performance%20silencer%2C%20G%201%2C%20Supply%20pressure%20max.%206%20bar?unique=dcdc308)
|
Type number: 570-3 |
88.76 € | |

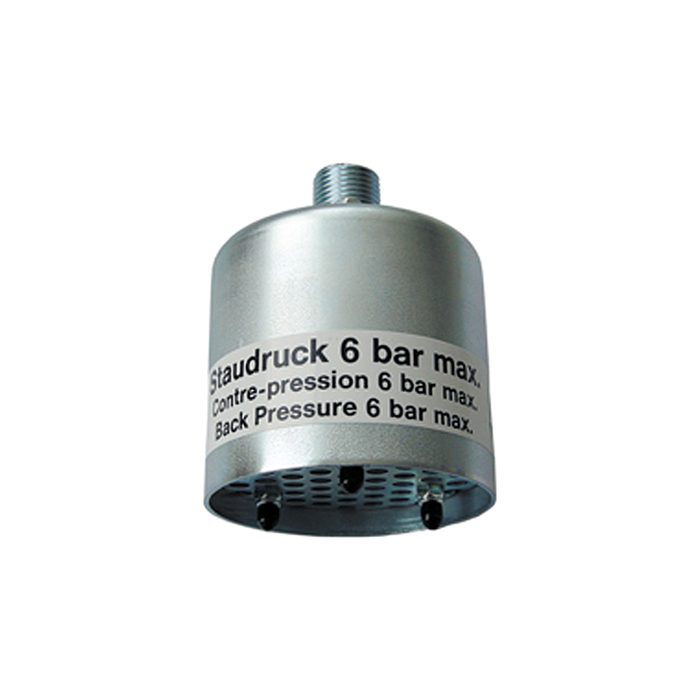

![[113300] RIEGLER High performance silencer, G 2, Supply pressure max. 6 bar](/web/image/product.template/186201/image_128/%5B113300%5D%20RIEGLER%20High%20performance%20silencer%2C%20G%202%2C%20Supply%20pressure%20max.%206%20bar?unique=30c00b6)
|
Type number: 570-6 |
160.04 € | |
![[113296] RIEGLER High performance silencer, G 3/4, Supply pressure max. 6 bar](/web/image/product.template/186197/image_128/%5B113296%5D%20RIEGLER%20High%20performance%20silencer%2C%20G%203-4%2C%20Supply%20pressure%20max.%206%20bar?unique=6804474)
|
Type number: 570-2 |
61.49 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

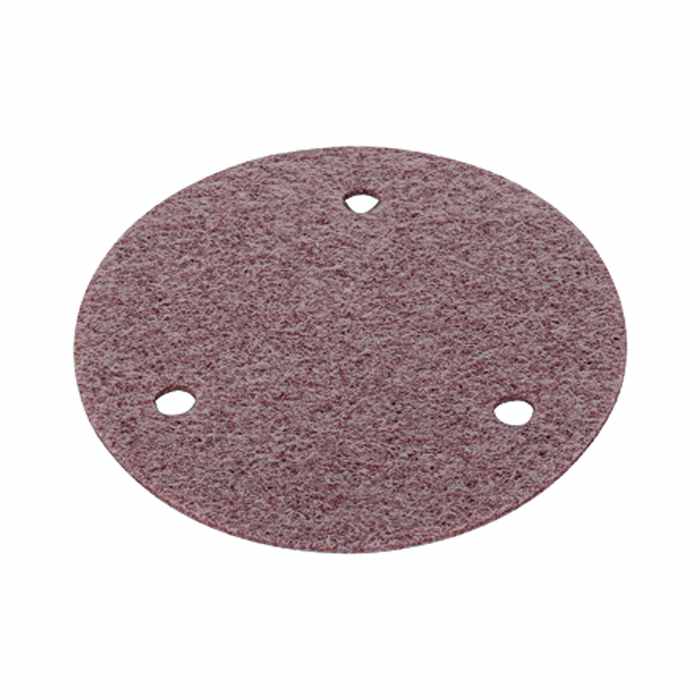

![[113301] RIEGLER Replacement felt washers, Set with 3 washers for size G 1/2-G 3/4](/web/image/product.template/186202/image_128/%5B113301%5D%20RIEGLER%20Replacement%20felt%20washers%2C%20Set%20with%203%20washers%20for%20size%20G%201-2-G%203-4?unique=62f6898)
|
Type number: 572 |
15.62 € | |
