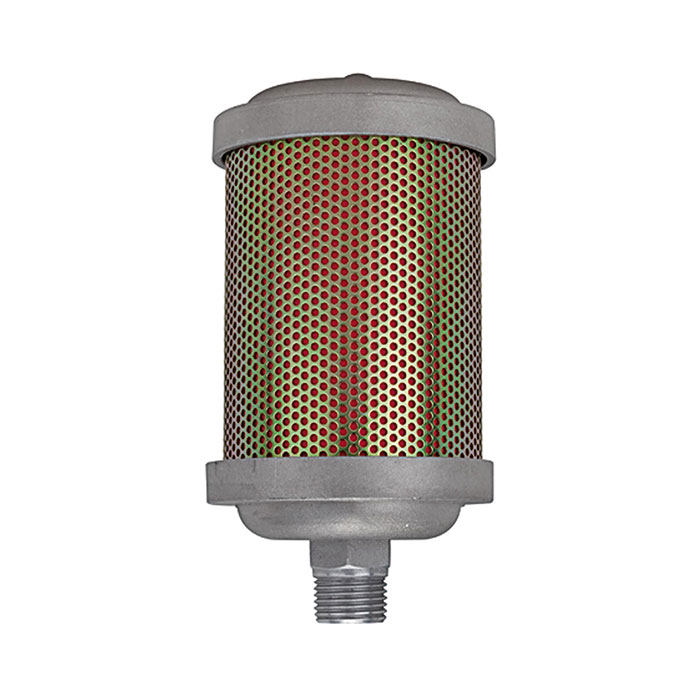

RIEGLER High performance silencer, Aluminium, G 2
Type number: LX 20
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER High-performance aluminum silencer, for noise protection, max. 10 bar - Type LX 20
The RIEGLER high-performance silencer, aluminium, perforated sheet steel, galvanized, G 2 significantly reduces the blow-off noise of pneumatic valves and cylinders. The housing is made of aluminum. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 70 °C. G 2 connection thread - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Housing | Aluminum |
| Working pressure max. | 10 bar |
| Material | Perforated sheet steel galvanized |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Noise reduction | ‰¥ 20 dB |
| Thread | G 2 |
| Flow rate at 6 bar | 90600 l/min |
| L | 470 mm |
| H | 133.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Cushioning material | Cotton cloth insert |
| Theme shop | SAFETY |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113309] RIEGLER High performance silencer, Aluminium, G 1](/web/image/product.template/186210/image_128/%5B113309%5D%20RIEGLER%20High%20performance%20silencer%2C%20Aluminium%2C%20G%201?unique=09dd56b)
|
Type number: LX 10 |
41.51 € | |
![[113311] RIEGLER High performance silencer, Aluminium, G 1 1/2](/web/image/product.template/186212/image_128/%5B113311%5D%20RIEGLER%20High%20performance%20silencer%2C%20Aluminium%2C%20G%201%201-2?unique=dcb7bb9)
|
Type number: LX 15 |
88.95 € | |
![[113310] RIEGLER High performance silencer, Aluminium, G 1 1/4](/web/image/product.template/186211/image_128/%5B113310%5D%20RIEGLER%20High%20performance%20silencer%2C%20Aluminium%2C%20G%201%201-4?unique=95fd432)
|
Type number: LX 12 |
48.03 € | |
![[113307] RIEGLER High performance silencer, Aluminium, G 1/2](/web/image/product.template/186208/image_128/%5B113307%5D%20RIEGLER%20High%20performance%20silencer%2C%20Aluminium%2C%20G%201-2?unique=3e15f96)
|
Type number: LX 05 |
26.47 € | |

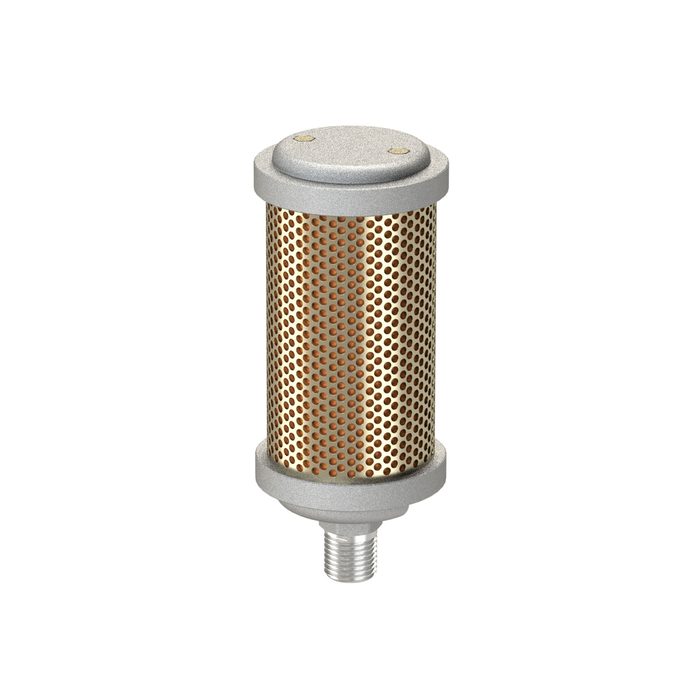

![[113305] RIEGLER High performance silencer, Aluminium, G 1/4](/web/image/product.template/186206/image_128/%5B113305%5D%20RIEGLER%20High%20performance%20silencer%2C%20Aluminium%2C%20G%201-4?unique=24d438e)
|
Type number: LX 02 |
13.48 € | |
![[113304] RIEGLER High performance silencer, Aluminium, G 1/8](/web/image/product.template/186205/image_128/%5B113304%5D%20RIEGLER%20High%20performance%20silencer%2C%20Aluminium%2C%20G%201-8?unique=aade786)
|
Type number: LX 01 |
11.52 € | |
![[113308] RIEGLER High performance silencer, Aluminium, G 3/4](/web/image/product.template/186209/image_128/%5B113308%5D%20RIEGLER%20High%20performance%20silencer%2C%20Aluminium%2C%20G%203-4?unique=5fb7981)
|
Type number: LX 07 |
32.95 € | |
![[113306] RIEGLER High performance silencer, Aluminium, G 3/8](/web/image/product.template/186207/image_128/%5B113306%5D%20RIEGLER%20High%20performance%20silencer%2C%20Aluminium%2C%20G%203-8?unique=cc267c0)
|
Type number: LX 03 |
18.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[130865] RIEGLER Replacement filter for high-performance silencer LX 20, G 2](/web/image/product.template/273203/image_128/%5B130865%5D%20RIEGLER%20Replacement%20filter%20for%20high-performance%20silencer%20LX%2020%2C%20G%202?unique=ef035aa)
|
Type number: EFIL LX 20 |
60.40 € | |
