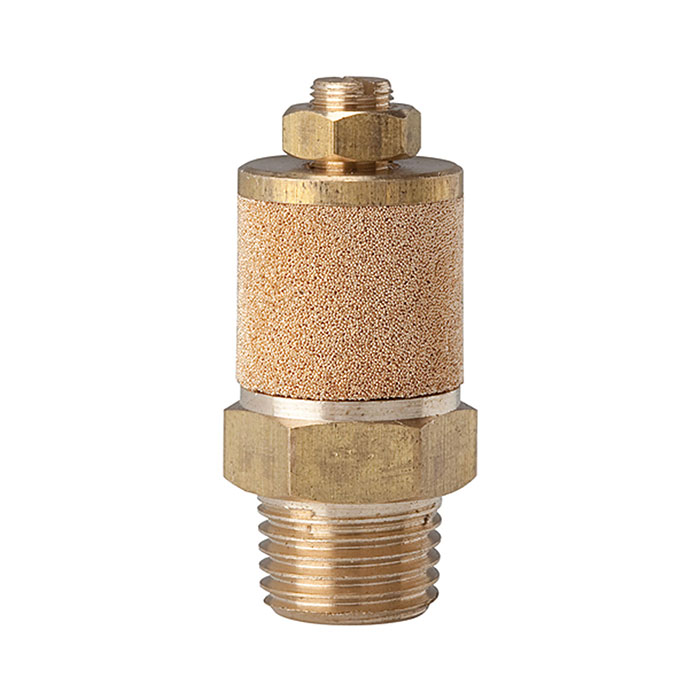

RIEGLER Silencer, Sintered bronze/brass, Exhaust adjustable, R 3/4, AF 30
Type number: 563-5
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Silencer for noise protection, max. 10 bar, R 3/4 - Type 563-5
The RIEGLER silencer, sintered bronze/MS, adjustable exhaust air, R 3/4, SW 30 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 250 °C. Connection thread R 3/4 - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | R 3/4 |
| SW | 30 mm |
| A | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| B min. | 75.4 mm |
| B max. | 90 mm |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

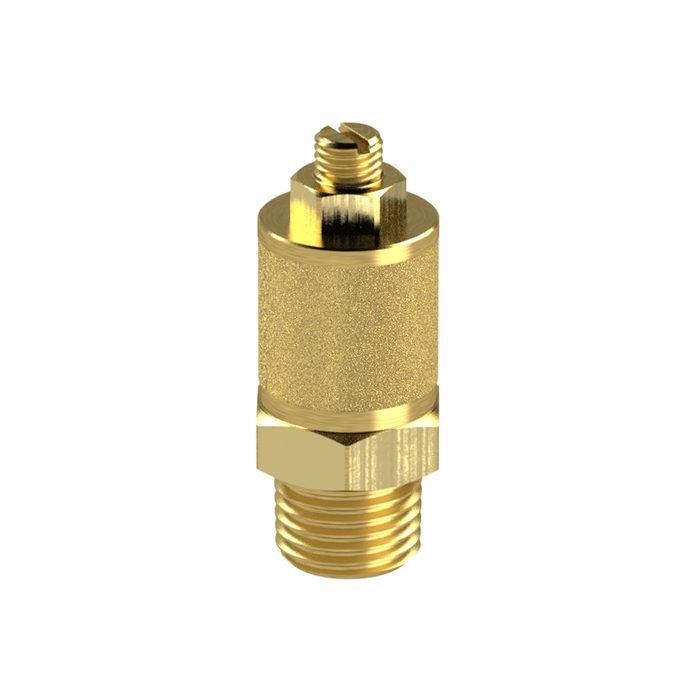

![[113313] RIEGLER Silencer, Sintered bronze/brass, Exhaust, adjustable, M5, AF 8](/web/image/product.template/186214/image_128/%5B113313%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze-brass%2C%20Exhaust%2C%20adjustable%2C%20M5%2C%20AF%208?unique=62c7085)
|
