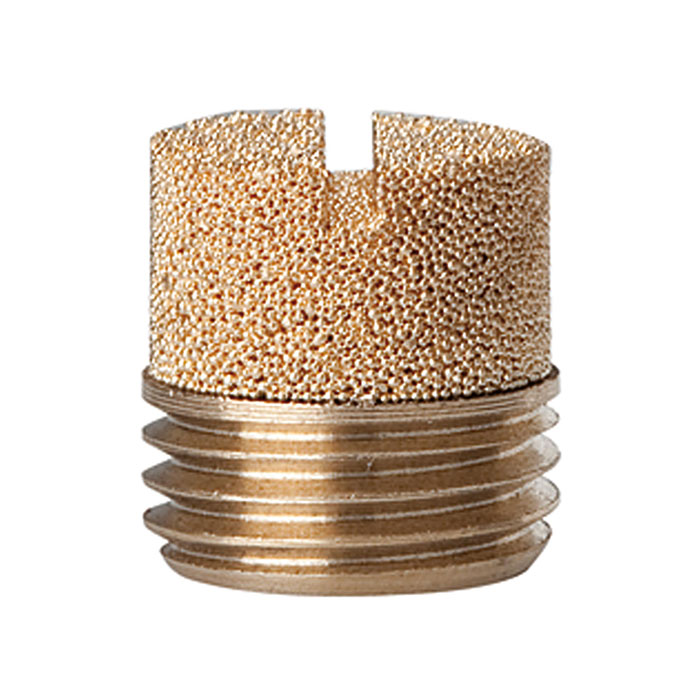

RIEGLER Sintered bronze silencer, Slot, G 1
Type number: 564-6
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Sintered bronze silencer, Slot, G 1, Operating pressure max. 10 bar, Operating temperature -10 °C to 250 °C
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 1 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 13 mm |
| B | 24 mm |
| C | 33 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100291] RIEGLER Sintered bronze silencer, Slot, G 1/2](/web/image/product.template/139726/image_128/%5B100291%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-2?unique=131009c)
|
Type number: 564-4 |
4.87 € | |
![[100289] RIEGLER Sintered bronze silencer, Slot, G 1/4](/web/image/product.template/139724/image_128/%5B100289%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-4?unique=2b701f5)
|
Type number: 564-2 |
2.69 € | |
![[113353] RIEGLER Sintered bronze silencer, Slot, G 1/8](/web/image/product.template/186254/image_128/%5B113353%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-8?unique=0fa7e71)
|
Type number: 564-1 |
2.37 € | |
![[113355] RIEGLER Sintered bronze silencer, Slot, G 3/4](/web/image/product.template/186256/image_128/%5B113355%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%203-4?unique=69524b4)
|
Type number: 564-5 |
9.03 € | |
![[113354] RIEGLER Sintered bronze silencer, Slot, G 3/8](/web/image/product.template/186255/image_128/%5B113354%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%203-8?unique=0dfa465)
|
Type number: 564-3 |
3.69 € | |
