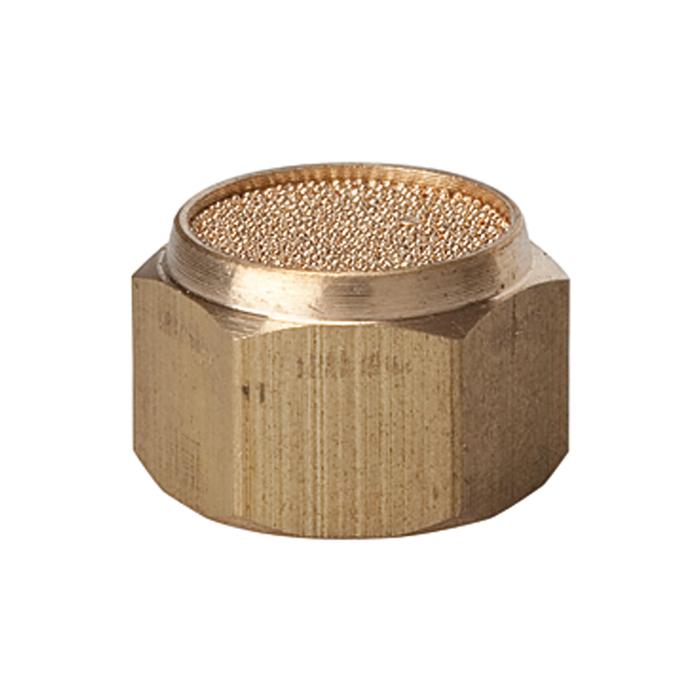

RIEGLER Sintered bronze silencer, flat, G 1 i., AF 41
Type number: 565-6
EAN: 4047322368940
Sintered bronze silencer, flat, G 1 i., SW 41 mm, operating pressure max. 10 bar, operating temperature -10 °C to 250 °C
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 1 |
| SW | 41 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| B | 22 mm |
| C | 37 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
