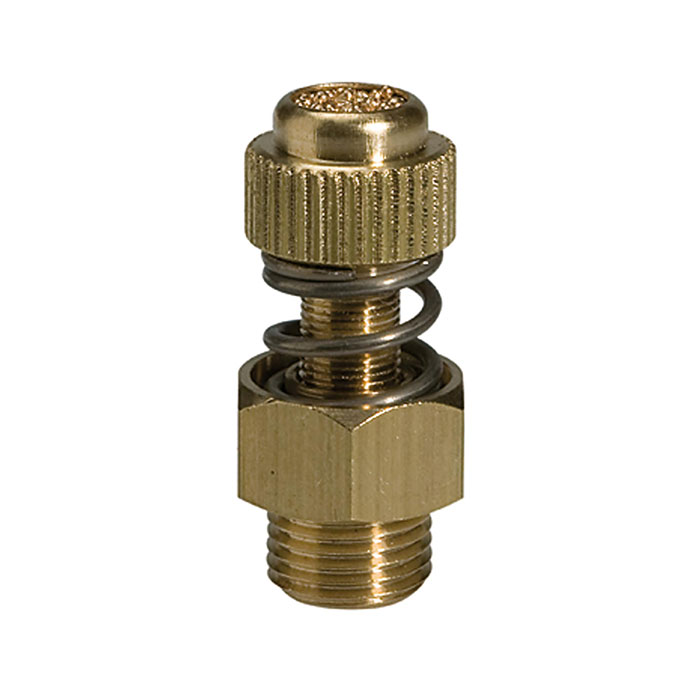

RIEGLER Silencer with spring setting, G 1/8, AF 13
Type number: 561.1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Silencer with spring adjustment for noise protection, max. 12 bar, G 1/8 - Type 561.1
The RIEGLER silencer with spring adjustment, G 1/8, SW 13 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 12 bar. The operating temperature is between -10 °C and 80 °C. G 1/8 connection thread - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 12 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/8 |

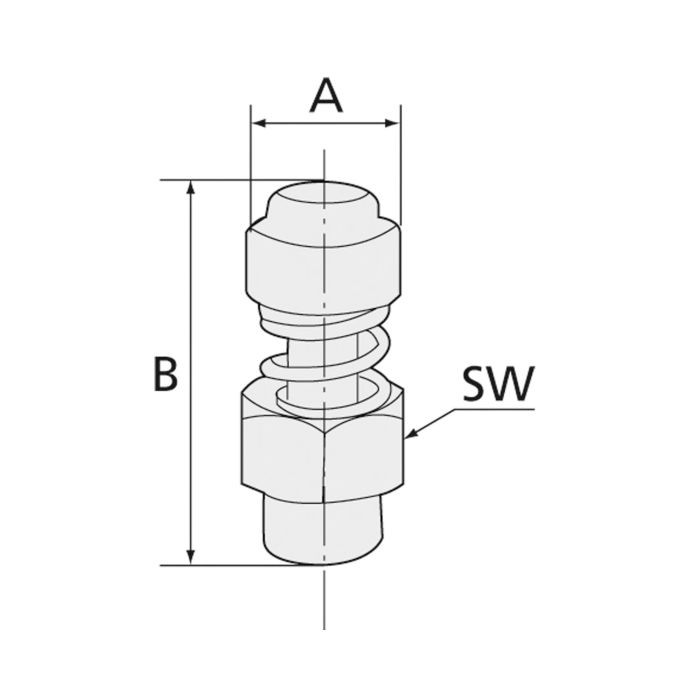

| SW | 13 mm |
| A | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| B min. | 26 mm |
| B max. | 28 mm |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
