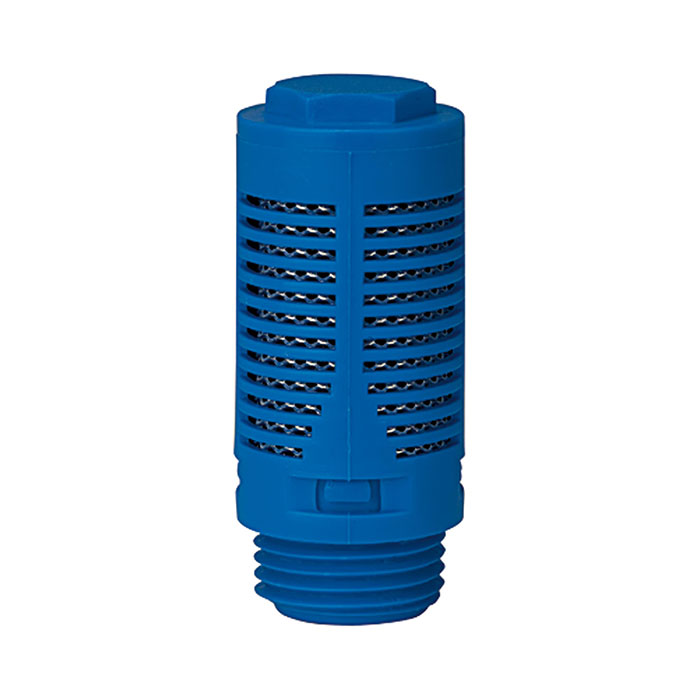

RIEGLER Plastic silencer, Steel net and cotton strip filling, G 3/8
Type number: 578-3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plastic silencer for noise protection, max. 12 bar, G 3/8 - Type 578-3
The RIEGLER plastic silencer G 3/8, steel mesh/cotton strip filling significantly reduces the blow-off noise of pneumatic valves and cylinders. The operating pressure range is 0 bar to 12 bar. The operating temperature is between -20 °C and 70 °C. G 3/8 connection thread - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 12 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Noise level at 6 bar | 92 dB |
| Thread | G 3/8 |
| SW | 16 mm |
| A | 10.5 mm |
| B | 58 mm |
| C | 24.5 mm |
| D | 3 mm |
| L | 58 mm |
| F | 44 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | EASY |
| Noise level at 4 bar | 87 dB |
