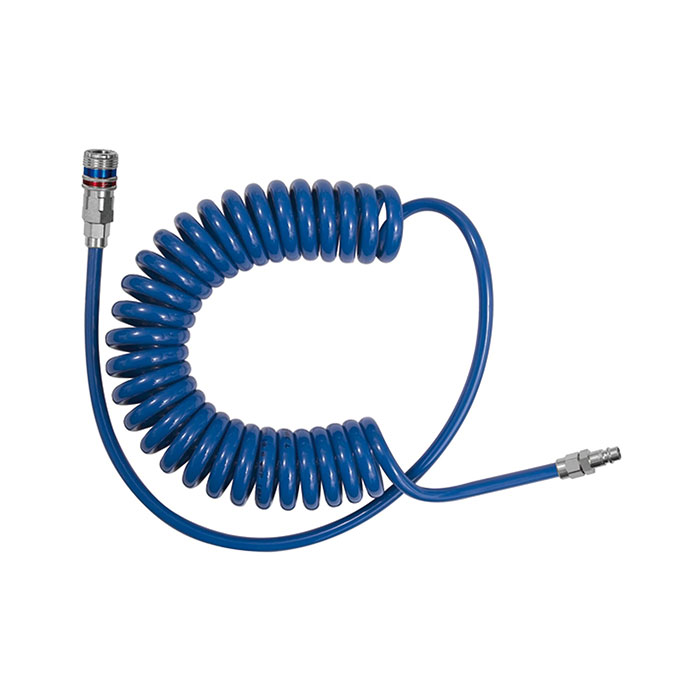

RIEGLER Spiral hose coupling set, PUR, Hose Ø 10x6.5, Length 4.0 m
Type number: SP 246-104
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral safety coupling set made of polyurethane (PUR), for compressed air distribution - type SP 246-104
The RIEGLER spiral hose safety coupling set, PUR, hose ø 10x6.5, 4.0 m conducts compressed air flexibly and reliably from the compressor to the consumer. The housing is made of polyurethane (PUR). Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -20 °C and 60 °C. Hose Ø 10x6.5 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Max. operating pressure | 10 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Material | Polyurethane (PUR) |
| Hose Ø | 10x6.5 mm |
| Working length max. | 4 m |
| Spiral-Ø | 52 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113487] RIEGLER Spiral hose coupling set, PUR, Hose Ø 10x6.5, Length 2.0 m](/web/image/product.template/189268/image_128/%5B113487%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2010x6.5%2C%20Length%202.0%20m?unique=1231cfd)
|
Type number: SP 246-102 |
49.84 € | |
![[113489] RIEGLER Spiral hose coupling set, PUR, Hose Ø 10x6.5, Length 6.0 m](/web/image/product.template/189272/image_128/%5B113489%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2010x6.5%2C%20Length%206.0%20m?unique=dd487fc)
|
Type number: SP 246-106 |
70.41 € | |
![[113490] RIEGLER Spiral hose coupling set, PUR, Hose Ø 10x6.5, Length 8.0 m](/web/image/product.template/189274/image_128/%5B113490%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2010x6.5%2C%20Length%208.0%20m?unique=d452a5d)
|
Type number: SP 246-108 |
80.59 € | |
![[113491] RIEGLER Spiral hose coupling set, PUR, Hose Ø 12x8, Length 2.0 m](/web/image/product.template/189276/image_128/%5B113491%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2012x8%2C%20Length%202.0%20m?unique=8fcfe7e)
|
Type number: SP 246-122 |
57.01 € | |
![[113492] RIEGLER Spiral hose coupling set, PUR, Hose Ø 12x8, Length 4.0 m](/web/image/product.template/189278/image_128/%5B113492%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2012x8%2C%20Length%204.0%20m?unique=d575b73)
|
Type number: SP 246-124 |
72.36 € | |
![[113493] RIEGLER Spiral hose coupling set, PUR, Hose Ø 12x8, Length 6.0 m](/web/image/product.template/189280/image_128/%5B113493%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2012x8%2C%20Length%206.0%20m?unique=1a6ef5e)
|
Type number: SP 246-126 |
93.47 € | |
![[113494] RIEGLER Spiral hose coupling set, PUR, Hose Ø 12x8, Length 8.0 m](/web/image/product.template/189282/image_128/%5B113494%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2012x8%2C%20Length%208.0%20m?unique=a579f54)
|
Type number: SP 246-128 |
102.69 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

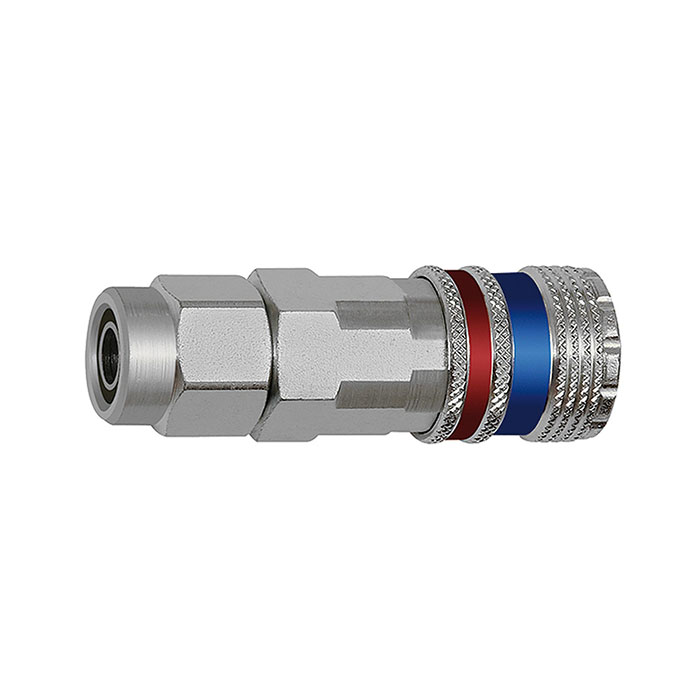

![[107600] RIEGLER Safety coupling I.D. 7.6, »stream line«, for hose 10x6.5](/web/image/product.template/191501/image_128/%5B107600%5D%20RIEGLER%20Safety%20coupling%20I.D.%207.6%2C%20%C2%BBstream%20line%C2%AB%2C%20for%20hose%2010x6.5?unique=65d475e)
|
Type number: 416.06-SL |
33.05 € | |
