RIEGLER Polyamide hose, Hose Ø 14x12, red, Roll of 25 m
Type number: 259.24 R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Polyamide hose made of polyamide (PA 12 PHL), for compressed air distribution - type 259.24 R
The RIEGLER polyamide hose, hose ø 14x12, red, roll of 25 m conducts compressed air flexibly and reliably from the compressor to the consumer. The housing is made of polyamide (PA 12 PHL). The temperature range is between -40 °C and 80 °C. Hose Ø 12 mm (inside) / 14 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -40 °C |
| Temperature range max. | 80 °C |
| Material | Polyamides (PA 12 PHL) |
| Colour | red |
| Max. operating pressure at 20 °C | 10 bar |
| Outer hose Ø | 14 mm |
| Hose Ø inside | 12 mm |
| Roll length | 25 m |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

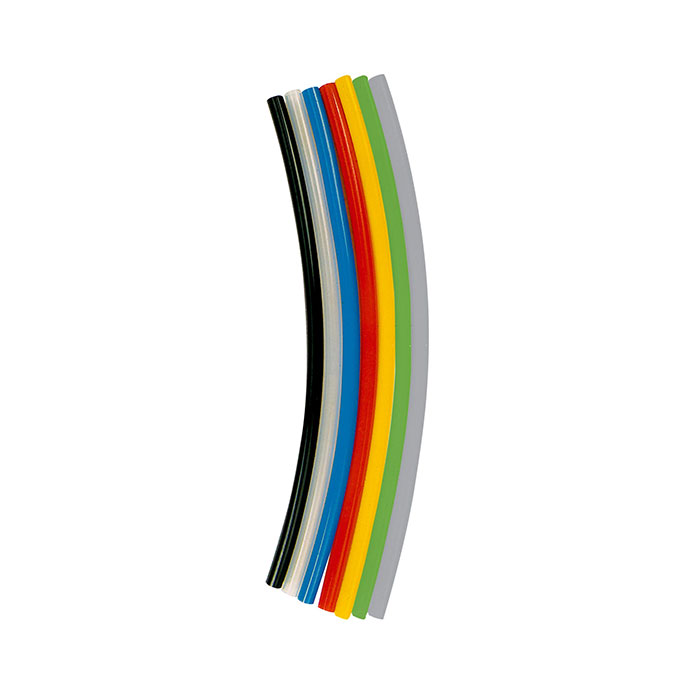

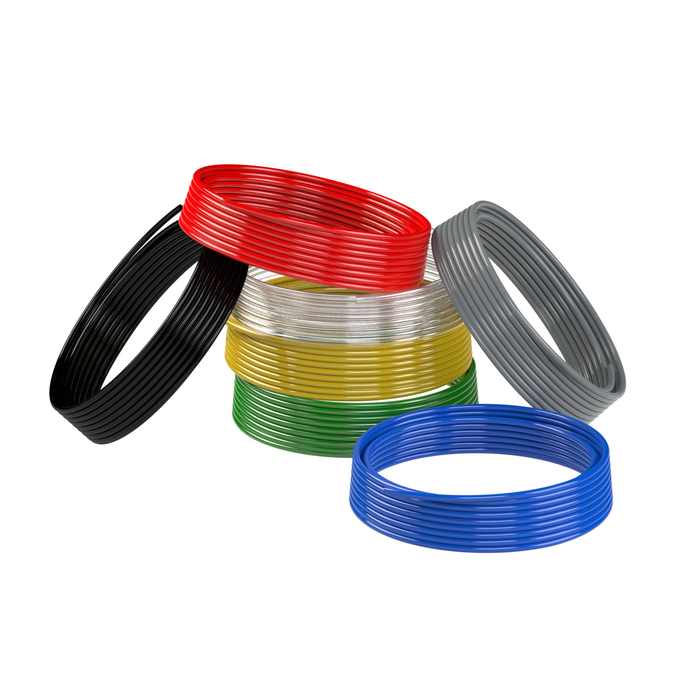

![[194215] RIEGLER Polyamide hose, Hose ø 14x1, red, Roll of 25 m](/web/image/product.template/216578/image_128/%5B194215%5D%20RIEGLER%20Polyamide%20hose%2C%20Hose%20%C3%B8%2014x1%2C%20red%2C%20Roll%20of%2025%20m?unique=a5e08a2)
|
