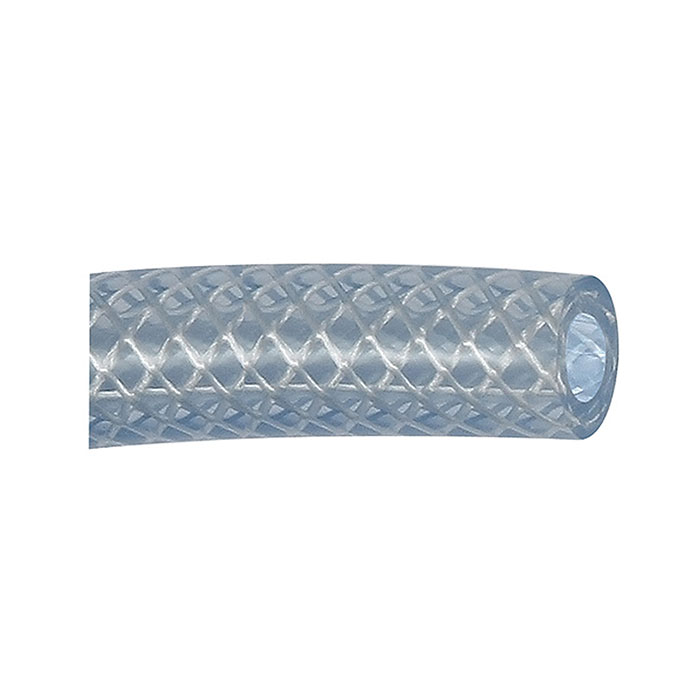

RIEGLER PVC braided hose, Hose Ø 10x4, Roll of 50 m
Type number: 190/1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
PVC fabric hose, temp. -15 °C to 60 °C, hose ø 10x4, PN at 23 °C max. 15 bar air, 20 bar liquids, roll of 50 m
| Temperature range min. | -15 °C |
| Temperature range max. | 60 °C |
| Outer hose Ø | 10 mm |
| Hose Ø inside | 4 mm |
| Max. operating pressure at 23 °C | 15 bar |
| Max. operating pressure liquids at 23 | 20 bar |
| Roll length | 50 m |
| Bending radius min. | 16 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

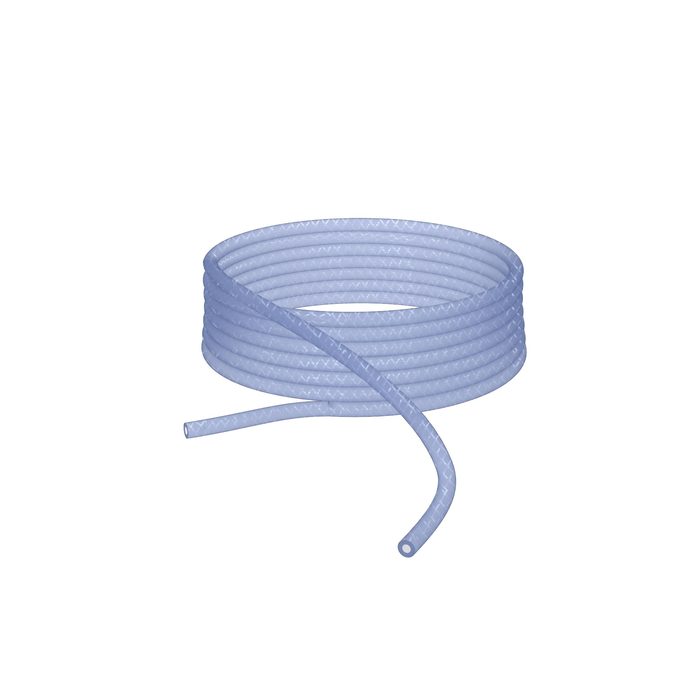

![[129156] RIEGLER PVC fabric hose, hose ø 10x4, roll of 50 m](/web/image/product.template/281172/image_128/%5B129156%5D%20RIEGLER%20PVC%20fabric%20hose%2C%20hose%20%C3%B8%2010x4%2C%20roll%20of%2050%20m?unique=fd851cb)
|
Type number: PGS10X4-50 |
42.84 € | |
