RIEGLER Screw-in fitting, Aluminium, for PVC braided hose 14x8, G 3/8
Type number: 190/63
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Screw-in fitting, aluminum, for PVC fabric hose 14x8, G 3/8, temperature range -10 °C to 60 °C, PN max. 10 bar

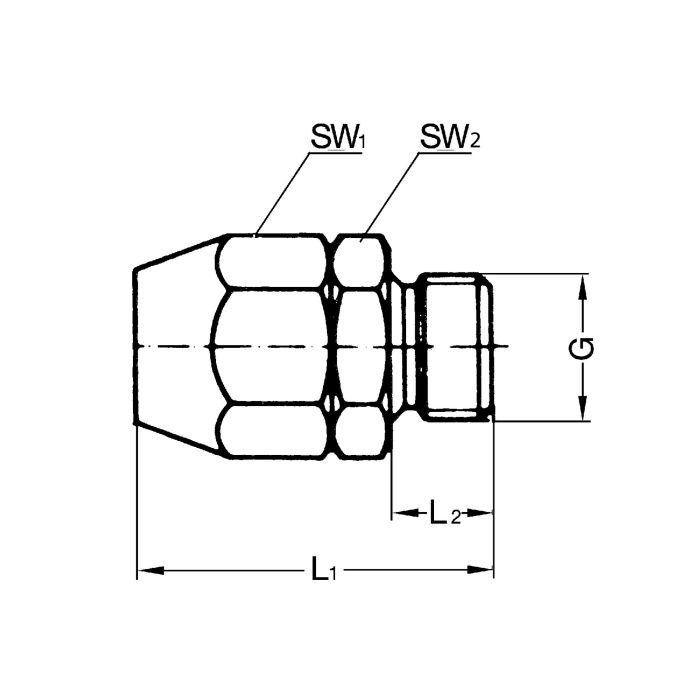

| Material | Aluminum |
| Thread | G 3/8 |
| SW 1 | 22 mm |
| SW | 22 mm |
| for PVC hose | 8x14 |
| L1 | 38 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | AW-2011 |
| Class name | PLUS |
