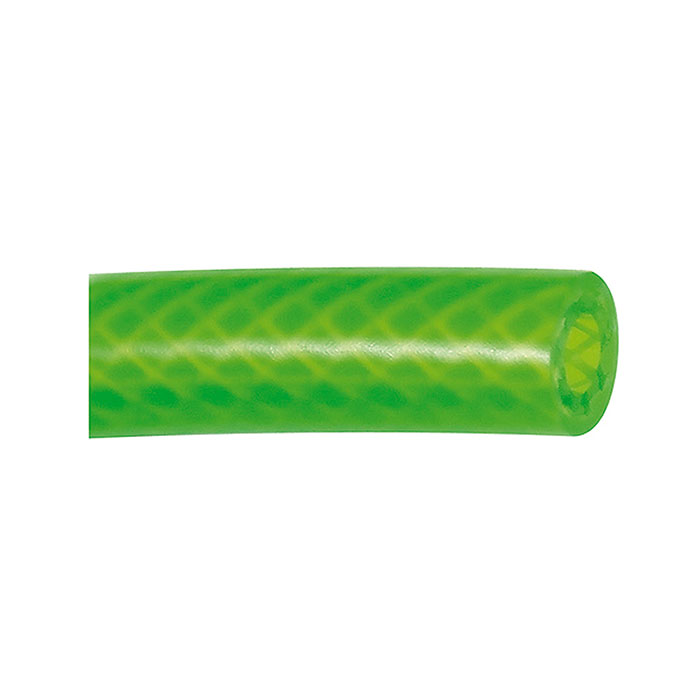

RIEGLER PVC braided hose neon green, Hose Ø 12x6, Roll of 50 m
Type number: 190/2-G
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER PVC fabric hose bright green for compressed air distribution - type 190/2-G
The RIEGLER PVC fabric hose bright green, hose ø 12x6, roll of 50 m conducts compressed air flexibly and reliably from the compressor to the consumer. The temperature range is between -15 °C and 60 °C. Hose Ø 6 mm (inside) / 12 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -15 °C |
| Temperature range max. | 60 °C |
| Operating pressure | at 23 °C max. 20 bar air/gas, max. 15 bar liquids |
| Outer hose Ø | 12 mm |
| Hose Ø inside | 6 mm |
| Roll length | 50 m |
| Bending radius min. | 18 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
