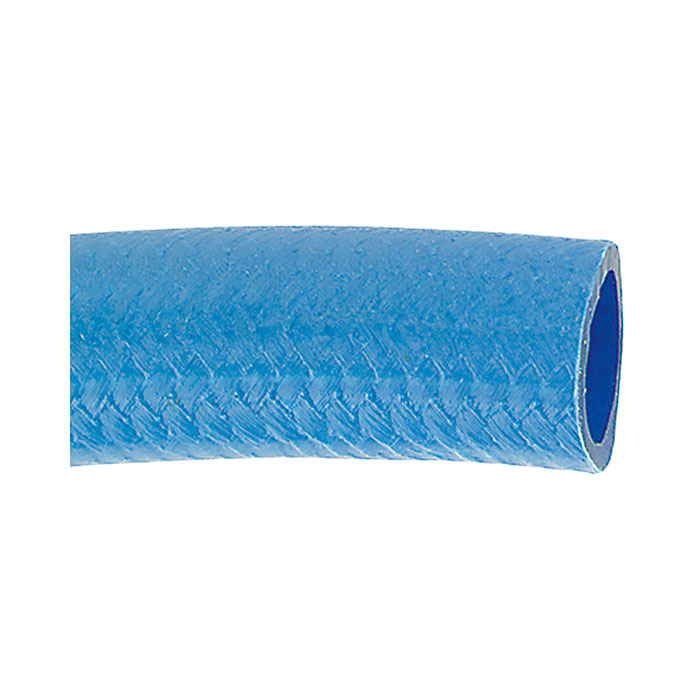

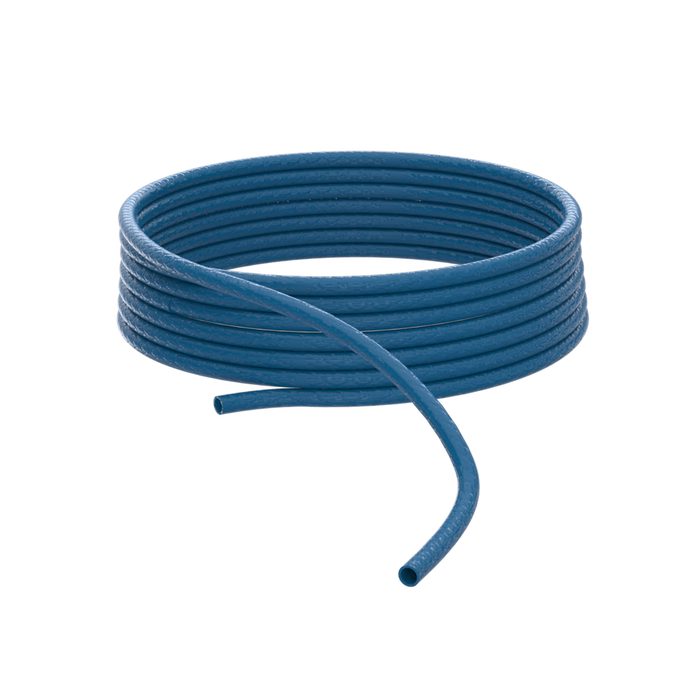

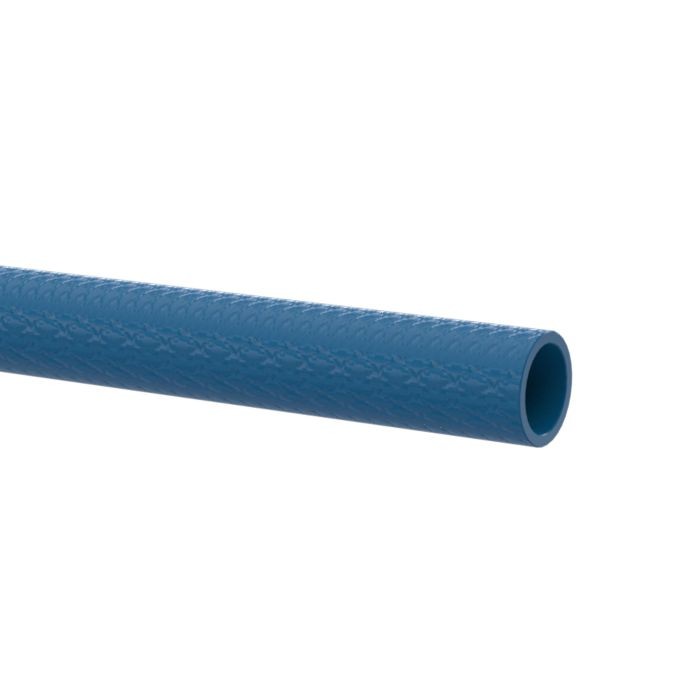

RIEGLER PVC special pneumatic hose, Hose Ø 17.6x13, Roll of 50 m
Type number: 170/6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER PVC special pneumatic hose made of PVC with integrated special fabric - type 170/6
The RIEGLER PVC special pneumatic hose, hose ø 17.6x13, roll of 50 m conveys compressed air flexibly and reliably from the compressor to the consumer. The housing is made of PVC with integrated special fabric. The temperature range is between -10 °C and 60 °C. Hose Ø 13 mm (inside) / 17.6 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Material | PVC with integrated special fabric |
| Colour | blue |
| Max. operating pressure at 20 °C | 28 bar |
| Outer hose Ø | 17.6 mm |
| Hose Ø inside | 13 mm |
| Roll length | 50 m |
| Bending radius min. | 100 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113815] RIEGLER PVC special pneumatic hose, Hose Ø 10.2x8, Roll of 50 m](/web/image/product.template/189883/image_128/%5B113815%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%2010.2x8%2C%20Roll%20of%2050%20m?unique=d810670)
|
Type number: 170/3 |
153.90 € | |
![[113816] RIEGLER PVC special pneumatic hose, Hose Ø 11.6x9, Roll of 50 m](/web/image/product.template/189885/image_128/%5B113816%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%2011.6x9%2C%20Roll%20of%2050%20m?unique=f77042e)
|
Type number: 170/4 |
176.92 € | |
![[113817] RIEGLER PVC special pneumatic hose, Hose Ø 12.5x10, Roll of 50 m](/web/image/product.template/189887/image_128/%5B113817%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%2012.5x10%2C%20Roll%20of%2050%20m?unique=b204acd)
|
Type number: 170/5 |
187.22 € | |
![[113813] RIEGLER PVC special pneumatic hose, Hose Ø 6.2x4, Roll of 50 m](/web/image/product.template/189879/image_128/%5B113813%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%206.2x4%2C%20Roll%20of%2050%20m?unique=76339a6)
|
Type number: 170/1 |
119.00 € | |
![[113814] RIEGLER PVC special pneumatic hose, Hose Ø 8.2x6, Roll of 50 m](/web/image/product.template/189881/image_128/%5B113814%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%208.2x6%2C%20Roll%20of%2050%20m?unique=1d79d2e)
|
Type number: 170/2 |
133.28 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=94e8e9c)
|
Type number: 259.559 |
29.67 € | |

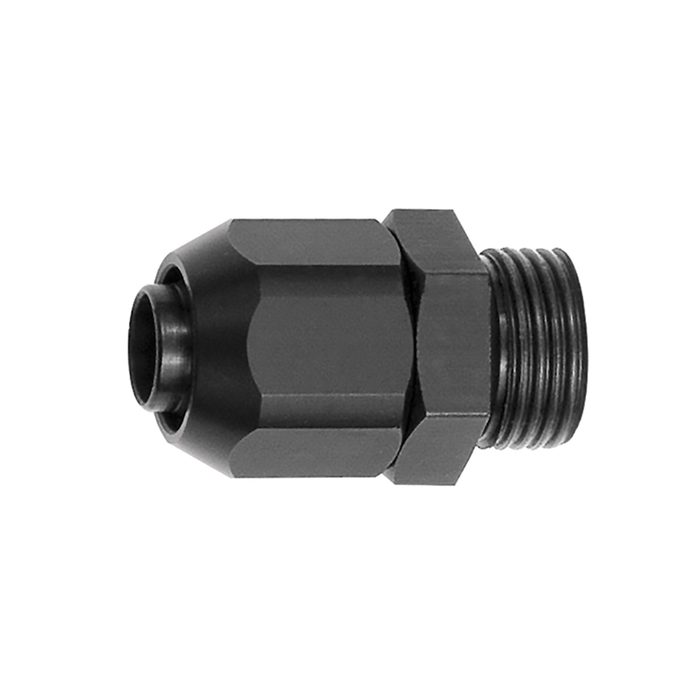

![[152988] RIEGLER Screw-in fitting for PVC pneumatic hose 13x17.6, G 3/8](/web/image/product.template/212496/image_128/%5B152988%5D%20RIEGLER%20Screw-in%20fitting%20for%20PVC%20pneumatic%20hose%2013x17.6%2C%20G%203-8?unique=4f5a08a)
|
