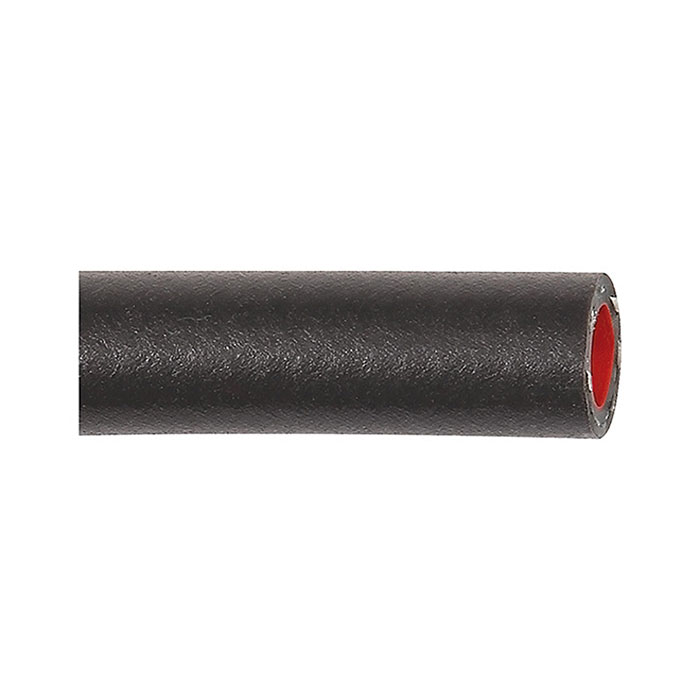

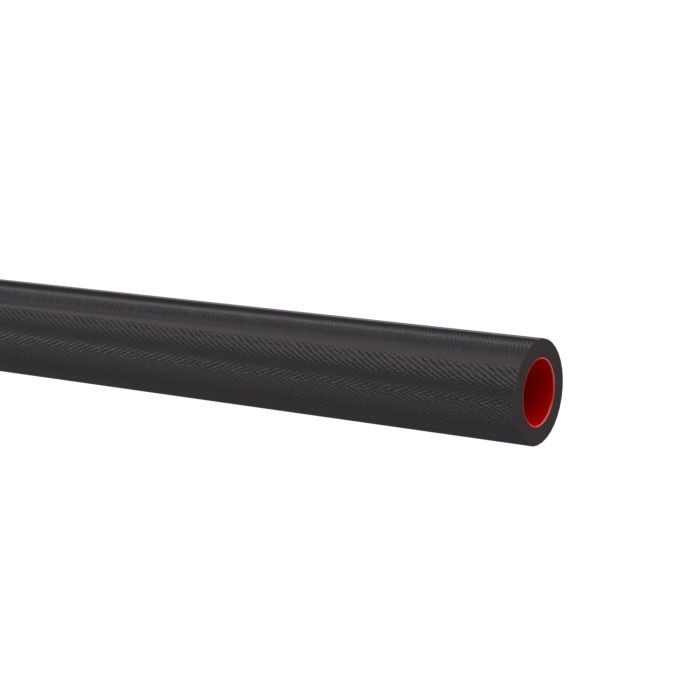

RIEGLER Workshop hose, Soft PVC, Oil resistant, Hose Ø 19x12.7, 50 m
Type number: 193.13
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Soft PVC workshop hose for compressed air distribution - Type 193.13
The RIEGLER workshop hose soft PVC, oil-resistant, hose ø 19x12.7, 50 m conducts compressed air flexibly and reliably from the compressor to the consumer. The temperature range is between -20 °C and 60 °C. Hose Ø 12.7 mm (inside) / 19 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Print carrier | high-strength polyester fabric |
| Intermediate layer | Soft PVC, black |
| Max. operating pressure at 23 °C | 16 bar |
| Soul | Soft PVC, red, oil-resistant |
| Bursting pressure | 64 bar |
| Outer ceiling | Soft PVC, black, oil-resistant |
| Outer hose Ø | 19 mm |
| Hose Ø inside | 12.7 mm |
| Roll length | 50 m |
| Bending radius min. | 50 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113857] RIEGLER Workshop hose, Soft PVC, Oil resistant, Hose Ø 11x6.3, 50 m](/web/image/product.template/189961/image_128/%5B113857%5D%20RIEGLER%20Workshop%20hose%2C%20Soft%20PVC%2C%20Oil%20resistant%2C%20Hose%20%C3%98%2011x6.3%2C%2050%20m?unique=982bcb5)
|
Type number: 193.06 |
84.10 € | |
![[113858] RIEGLER Workshop hose, Soft PVC, Oil resistant, Hose Ø 13x8, 50 m](/web/image/product.template/189963/image_128/%5B113858%5D%20RIEGLER%20Workshop%20hose%2C%20Soft%20PVC%2C%20Oil%20resistant%2C%20Hose%20%C3%98%2013x8%2C%2050%20m?unique=9a5aeab)
|
Type number: 193.08 |
92.02 € | |
![[113859] RIEGLER Workshop hose, Soft PVC, Oil resistant, Hose Ø 14.5x9, 50 m](/web/image/product.template/189965/image_128/%5B113859%5D%20RIEGLER%20Workshop%20hose%2C%20Soft%20PVC%2C%20Oil%20resistant%2C%20Hose%20%C3%98%2014.5x9%2C%2050%20m?unique=f29974d)
|
Type number: 193.09 |
93.62 € | |
![[113860] RIEGLER Workshop hose, Soft PVC, Oil resistant, Hose Ø 15.5x10, 50 m](/web/image/product.template/189967/image_128/%5B113860%5D%20RIEGLER%20Workshop%20hose%2C%20Soft%20PVC%2C%20Oil%20resistant%2C%20Hose%20%C3%98%2015.5x10%2C%2050%20m?unique=52fa18d)
|
Type number: 193.10 |
107.90 € | |
![[113862] RIEGLER Workshop hose, Soft PVC, Oil resistant, Hose Ø 23x16, 50 m](/web/image/product.template/189971/image_128/%5B113862%5D%20RIEGLER%20Workshop%20hose%2C%20Soft%20PVC%2C%20Oil%20resistant%2C%20Hose%20%C3%98%2023x16%2C%2050%20m?unique=c31b983)
|
Type number: 193.16 |
196.74 € | |

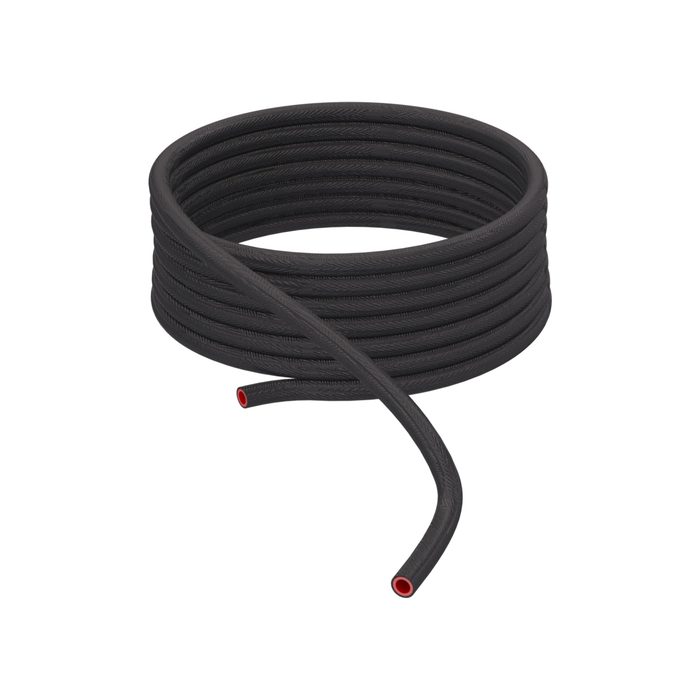

![[113863] RIEGLER Workshop hose, Soft PVC, Oil resistant, Hose Ø 26.5x19, 50 m](/web/image/product.template/189973/image_128/%5B113863%5D%20RIEGLER%20Workshop%20hose%2C%20Soft%20PVC%2C%20Oil%20resistant%2C%20Hose%20%C3%98%2026.5x19%2C%2050%20m?unique=38a2989)
|
