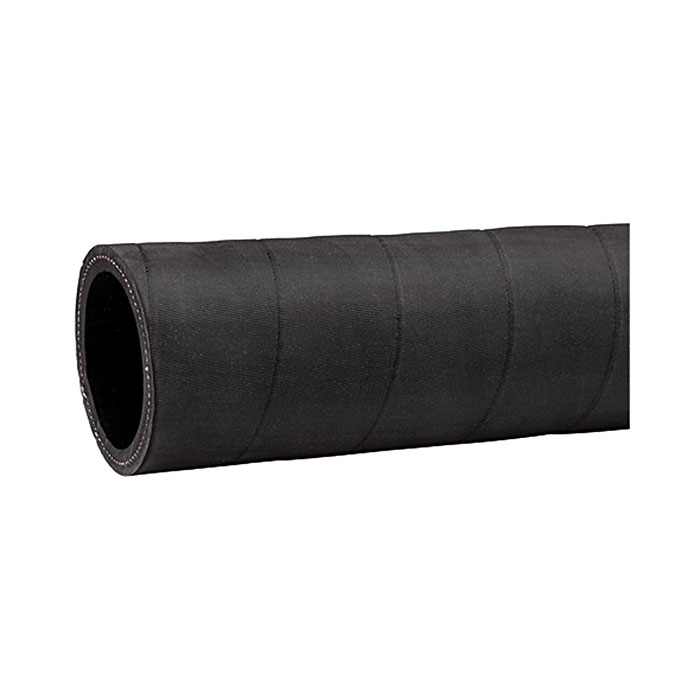

RIEGLER Industrial water hose, SBR, Hose Ø 60x48, Roll of 40 m
Type number: 3040.048
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Industrial water hose for compressed air distribution, max. 10 bar - Type 3040.048
The RIEGLER industrial water hose, SBR, hose ø 61x48, roll of 40 m conducts compressed air flexibly and reliably from the compressor to the consumer. Designed for a maximum operating pressure of 10 bar. The temperature range is between -30 °C and 80 °C. Hose Ø 48 mm (inside) / 60 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -30 °C |
| Temperature range max. | 80 °C |
| Max. operating pressure | 10 bar |
| Soul | SBR, black, smooth |
| Bursting pressure | 30 bar |
| Outer ceiling | SBR, black, fabric-patterned |
| Outer hose Ø | 60 mm |
| Hose Ø inside | 48 mm |
| Roll length | 40 m |
| Bending radius min. | 384 mm |
| Class name | FLEX |
