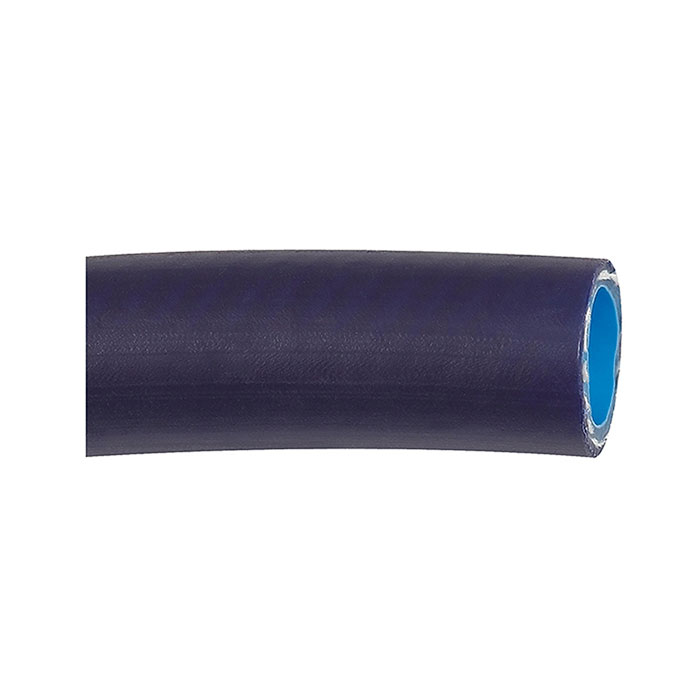

RIEGLER Potable water hose, Soft PE, Hose Ø 15x10, Roll of 50 m
Type number: TWS.10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Drinking water hose for compressed air distribution - type TWS.10
The RIEGLER drinking water hose, soft PE, hose ø 15x10, roll of 50 m conducts compressed air flexibly and reliably from the compressor to the consumer. The temperature range is between -15 °C and 50 °C. Hose Ø 10 mm (inside) / 15 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -15 °C |
| Temperature range max. | 50 °C |
| Print carrier | high-strength polyester fabric |
| Max. operating pressure at 23 °C | 20 bar |
| Soul | Soft PE |
| Outer ceiling | Soft PE |
| Outer hose Ø | 15 mm |
| Hose Ø inside | 10 mm |
| Roll length | 50 m |
| Bending radius min. | 35 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113954] RIEGLER Potable water hose, Soft PE, Hose Ø 20x13, Roll of 50 m](/web/image/product.template/190143/image_128/%5B113954%5D%20RIEGLER%20Potable%20water%20hose%2C%20Soft%20PE%2C%20Hose%20%C3%98%2020x13%2C%20Roll%20of%2050%20m?unique=97b34d6)
|
Type number: TWS.13 |
309.40 € | |
![[113955] RIEGLER Potable water hose, Soft PE, Hose Ø 27x19, Roll of 50 m](/web/image/product.template/190145/image_128/%5B113955%5D%20RIEGLER%20Potable%20water%20hose%2C%20Soft%20PE%2C%20Hose%20%C3%98%2027x19%2C%20Roll%20of%2050%20m?unique=0efff58)
|
Type number: TWS.19 |
510.12 € | |
![[113956] RIEGLER Potable water hose, Soft PE, Hose Ø 34.5x25, Roll of 50 m](/web/image/product.template/190147/image_128/%5B113956%5D%20RIEGLER%20Potable%20water%20hose%2C%20Soft%20PE%2C%20Hose%20%C3%98%2034.5x25%2C%20Roll%20of%2050%20m?unique=7b18a34)
|
Type number: TWS.25 |
832.20 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

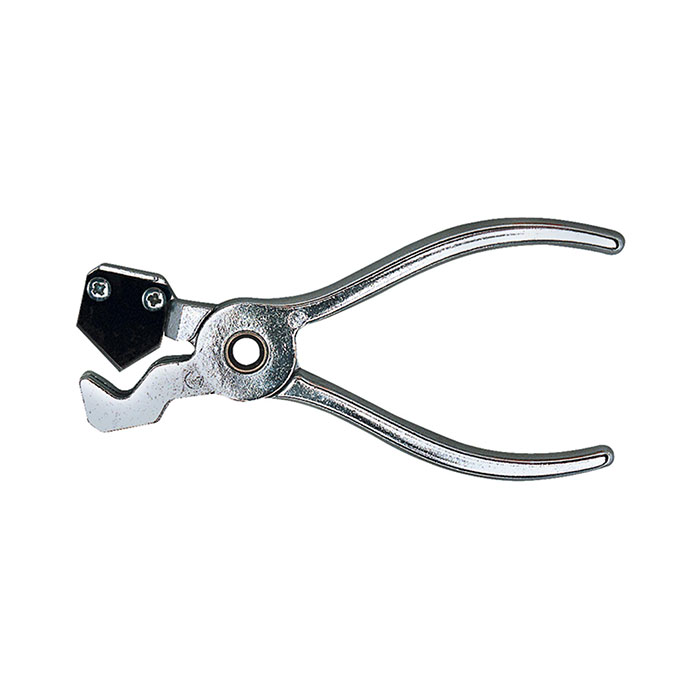

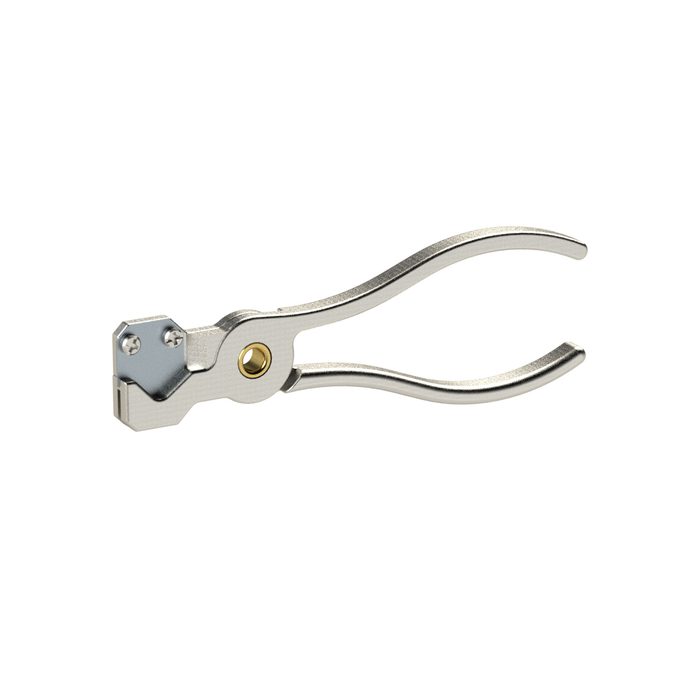

![[113584] RIEGLER Hose cutter, for max. hose exterior Ø 17 mm](/web/image/product.template/189458/image_128/%5B113584%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2017%20mm?unique=39bb728)
|
Type number: 259.555 |
18.75 € | |
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=f43ea22)
|
Type number: 259.559 |
29.67 € | |
![[179288] RIEGLER Hose cutter, for max. hose exterior Ø 20 mm](/web/image/product.template/216419/image_128/%5B179288%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2020%20mm?unique=009442e)
|
Typennummer: SAS420 |
49.80 € | |
