RIEGLER Hose reel for compressed air / water, PU hose ø 12x8, 15 m
Type number: 259/6022
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hose reel for compressed air distribution, max. 10 bar - Type 259/6022
The RIEGLER hose reel, compressed air/water, PU hose ø 12x8, length 15 m rolls up the compressed air hose automatically - for tidiness at the workplace. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 40 °C. Hose Ø 8x12 mm, hose length 15 m. Automatic retraction for tidiness and quick readiness for use.
Field of application
Typical areas of application: Workshop, production and automotive operations.
| Max. operating pressure | 10 bar |
| Area of application | for compressed air and water |
| Mounting options | Wall, floor or ceiling mounting |
| Thread input | Pants nozzle 8 mm |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 40 °C |
| Hose | Polyurethanes |
| Hose Ø | 8x12 mm |
| Hose length | 15 m |
| A | 420 mm |
| B | 353 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

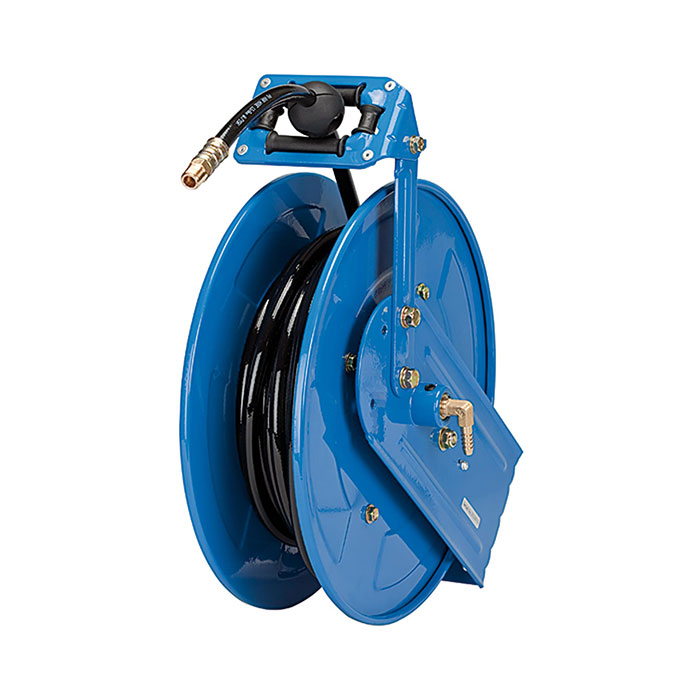

![[113970] RIEGLER Hose reel for compressed air / water, PU hose ø 10x6.5, 10 m](/web/image/product.template/190173/image_128/%5B113970%5D%20RIEGLER%20Hose%20reel%20for%20compressed%20air%20-%20water%2C%20PU%20hose%20%C3%B8%2010x6.5%2C%2010%20m?unique=fbd16d4)
|
Type number: 259/6020 |
385.91 € | |
![[113971] RIEGLER Hose reel for compressed air / water, PU hose ø 10x6.5, 20 m](/web/image/product.template/190175/image_128/%5B113971%5D%20RIEGLER%20Hose%20reel%20for%20compressed%20air%20-%20water%2C%20PU%20hose%20%C3%B8%2010x6.5%2C%2020%20m?unique=0ec3b47)
|
Type number: 259/6021 |
406.11 € | |
![[113973] RIEGLER Hose reel for compressed air / water, PU hose ø 16x11, 15 m](/web/image/product.template/190179/image_128/%5B113973%5D%20RIEGLER%20Hose%20reel%20for%20compressed%20air%20-%20water%2C%20PU%20hose%20%C3%B8%2016x11%2C%2015%20m?unique=5bcf270)
|
Type number: 259/6023 |
620.03 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[206547] RIEGLER Bracket with joint for hose reel, 180° pivotable](/web/image/product.template/276120/image_128/%5B206547%5D%20RIEGLER%20Bracket%20with%20joint%20for%20hose%20reel%2C%20180%C2%B0%20pivotable?unique=4290b7a)
|
Typennummer: 259/602 |
92.26 € | |
